EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet

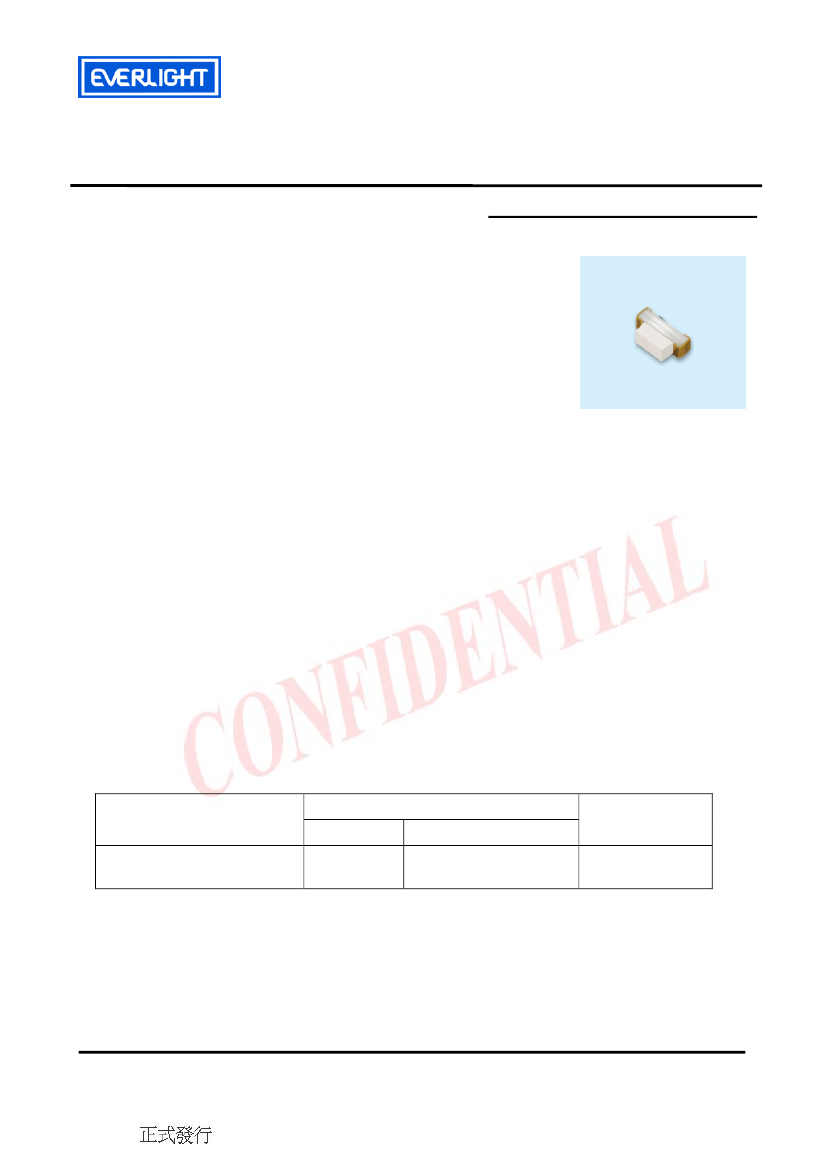

Chip LED with Right Angle Lens
48-213/R6C-AM1N2VY/3C
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
Descriptions
․The
48-213 SMD Taping is much smaller than
lead frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Part No.
48-213/R6C-AM1N2VY/3C
Chip
Material
AlGaInP
Emitted Color
Brilliant Red
Resin Color
Water Clear
Everlight Electronics Co., Ltd.
Device No. : DSE-483-R02
http://www.everlight.com
Prepared date: 17-Sep-2008
Rev. 3
Page: 1 of 10
Prepared by: Esther Yan
Revision
:3
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
48-213/R6C-AM1N2VY/3C

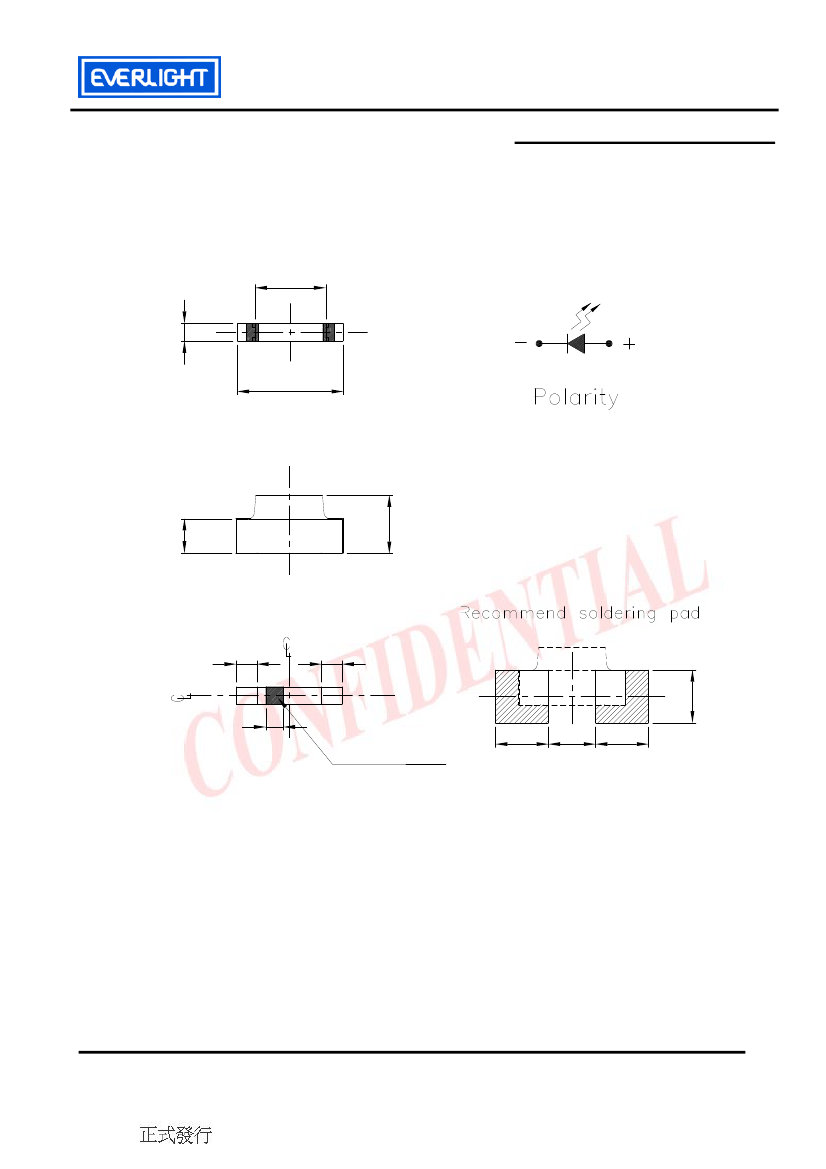

Package Outline Dimensions
1.2
0.30±0.05
1.80
0.6
0.35
0.35
0.9
0.30
0.9
0.8
0.9
Cathode Mark
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-483-R02
http://www.everlight.com
Prepared date: 17-Sep-2008
1.0
Rev. 3
Page: 2 of 10
Prepared by: Esther Yan
Revision
:3
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
48-213/R6C-AM1N2VY/3C
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
5
25
60
60
2000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Peak Wavelength
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Viewing Angle
Forward Voltage
Reverse Current
Symbol
Iv
λp
λd
△λ
2θ1/2
V
F
I
R
Min.
18
----
617.5
----
----
1.70
----
Typ.
-----
632
----
20
120
----
----
Max.
45
----
633.5
----
----
2.20
10
Unit
mcd
nm
nm
Condition
I
F
=5mA
nm
deg
V
μA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.05V
Everlight Electronics Co., Ltd.
Device No. : DSE-483-R02
http://www.everlight.com
Prepared date: 17-Sep-2008
Rev. 3
Page: 3 of 10
Prepared by: Esther Yan
Revision
:3
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
48-213/R6C-AM1N2VY/3C
Bin Range Of Dom. Wavelength
Group
Bin
E3
Min
617.5
621.5
625.5
629.5
Max
621.5
625.5
629.5
633.5
nm
I
F
=5mA
Unit
Condition
A
E5
E6
E7
Bin Range Of Luminous Intensity
Bin
Min
18.0
22.5
28.5
36.0
Max
22.5
28.5
36.0
45.0
mcd
I
F
=5mA
Unit
Condition
M1
M2
N1
N2
Bin Range Of Forward Voltage
Group
Bin
19
20
Min
1.70
1.80
1.90
2.00
2.10
Max
1.80
1.90
2.00
2.10
2.20
V
I
F
=5mA
Unit
Condition
V
21
22
23
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.05V
Everlight Electronics Co., Ltd.
Device No. : DSE-483-R02
http://www.everlight.com
Prepared date: 17-Sep-2008
Rev. 3
Page: 4 of 10
Prepared by: Esther Yan
Revision
:3
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
48-213/R6C-AM1N2VY/3C

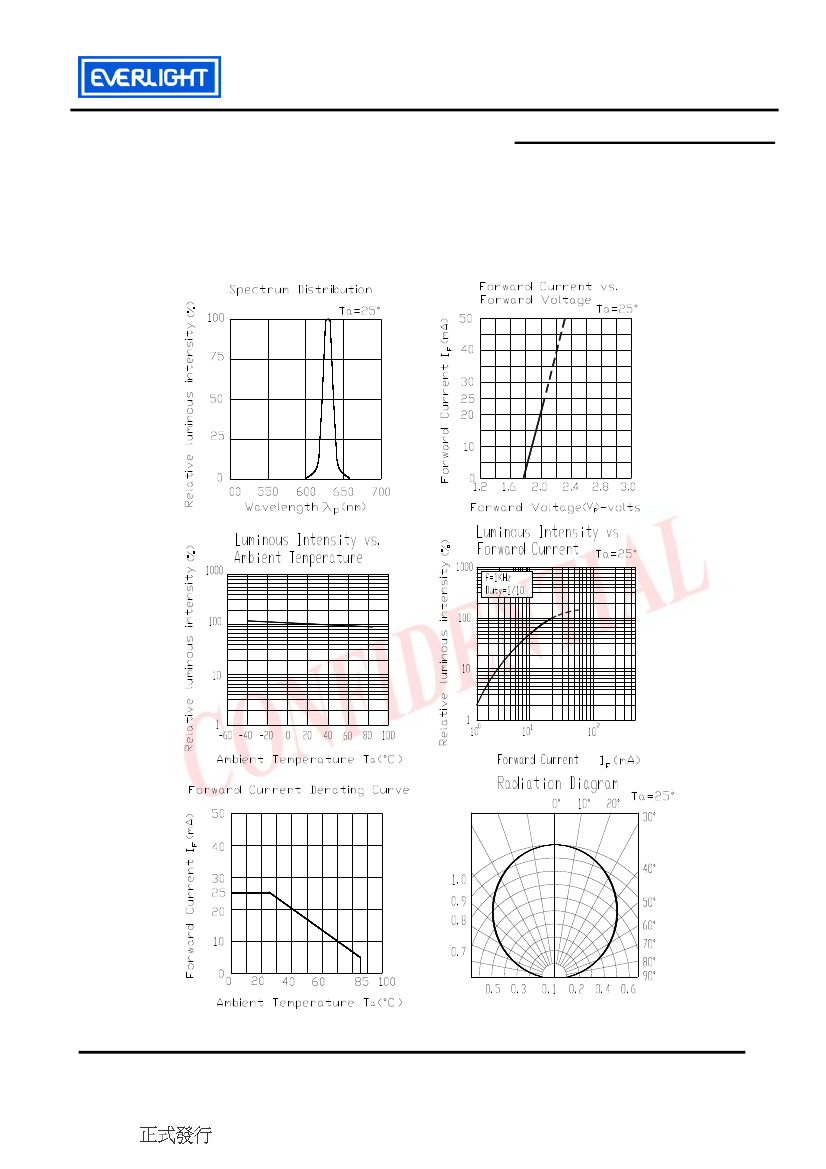

Typical Electro-Optical Characteristics Curves
