88ACPX-12-120VAC: DescriptionPower/Signal Relay, DPDT, Momentary, 2550mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Socket Mount; CategoryMechanical and electronic products relay; File Size65KB，1 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

88ACPX-12-120VAC Overview

Power/Signal Relay, DPDT, Momentary, 2550mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Socket Mount

88ACPX-12-120VAC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 102 V, COIL RELEASE VOLTAGE(AC): 12 V
body height	51.5 mm
Body length or diameter	66.8 mm
Coil current (AC) maximum value	0.021 A
Coil power	2550 mW
Maximum coil voltage (AC)	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	88HP
Installation features	SOCKET MOUNT
operating hours	25 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	20 ms
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

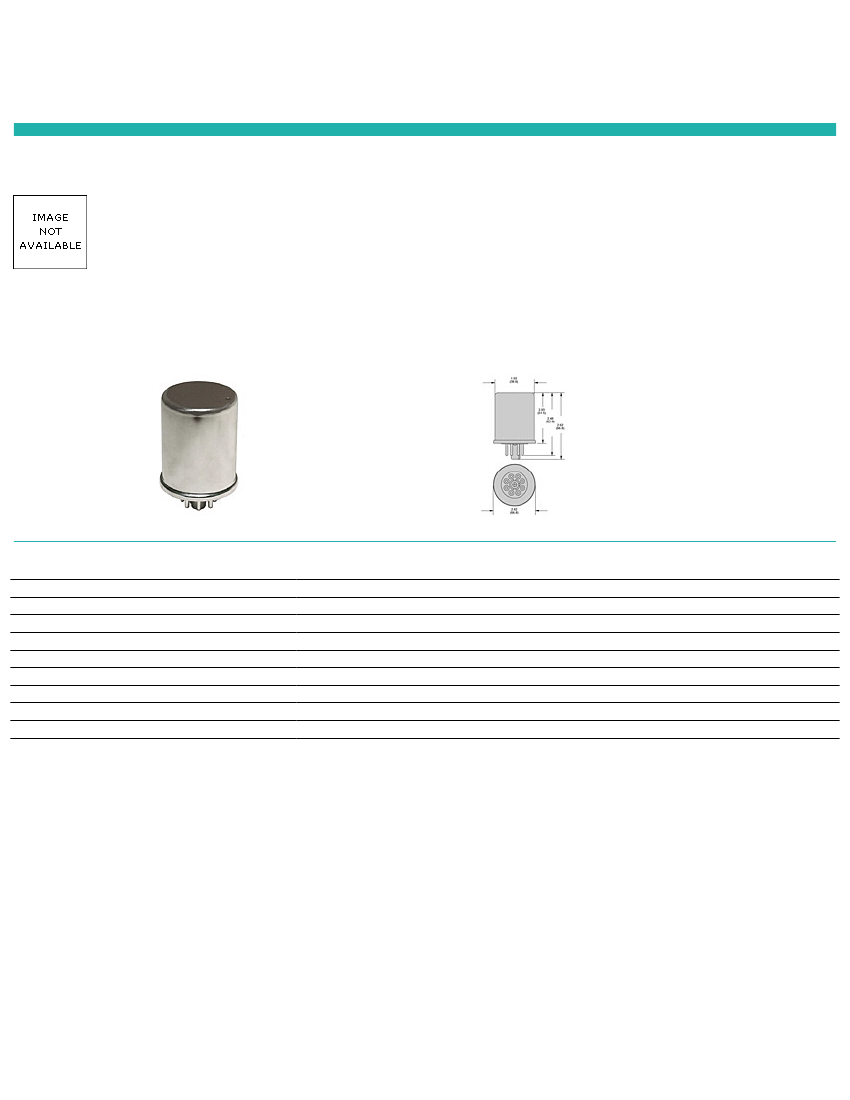

88HP Series - Hermetically Sealed Plug-in Special Purpose Relays

The 88HP series relay is a 2 or 3 pole, hermetically sealed, metal can relay. Relays are completely sealed to prevent any contamination from entering. Cases are

painted gray to protect them from corrosion.

For Additional Configuration please contact the manufacturer.

Results 1 - 9 of 9

Item #

88AHPX-36-120VAC

88HPX-33-12VDC

88HPX-34-24VDC

88AHPX-24-115VAC

88AHPX-74-240VAC

88AHPX-75-240VAC

88HPX-136-12VDC

88HPX-35-110VDC

88HPX-51-24VDC

Nominal Input Voltage

120 VAC

12 VDC

24 VDC

115 VAC

240 VAC

12 VDC

110 VDC

24 VDC

Contact Arrangement

3PDT

DPDT

3PDT

DPDT

3PDT

Results 1 - 9 of 9

1/12/2012 | Page 1 of 1
