54550402 Overview

Rectangular Connector,

54550402 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	RECTANGULAR CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

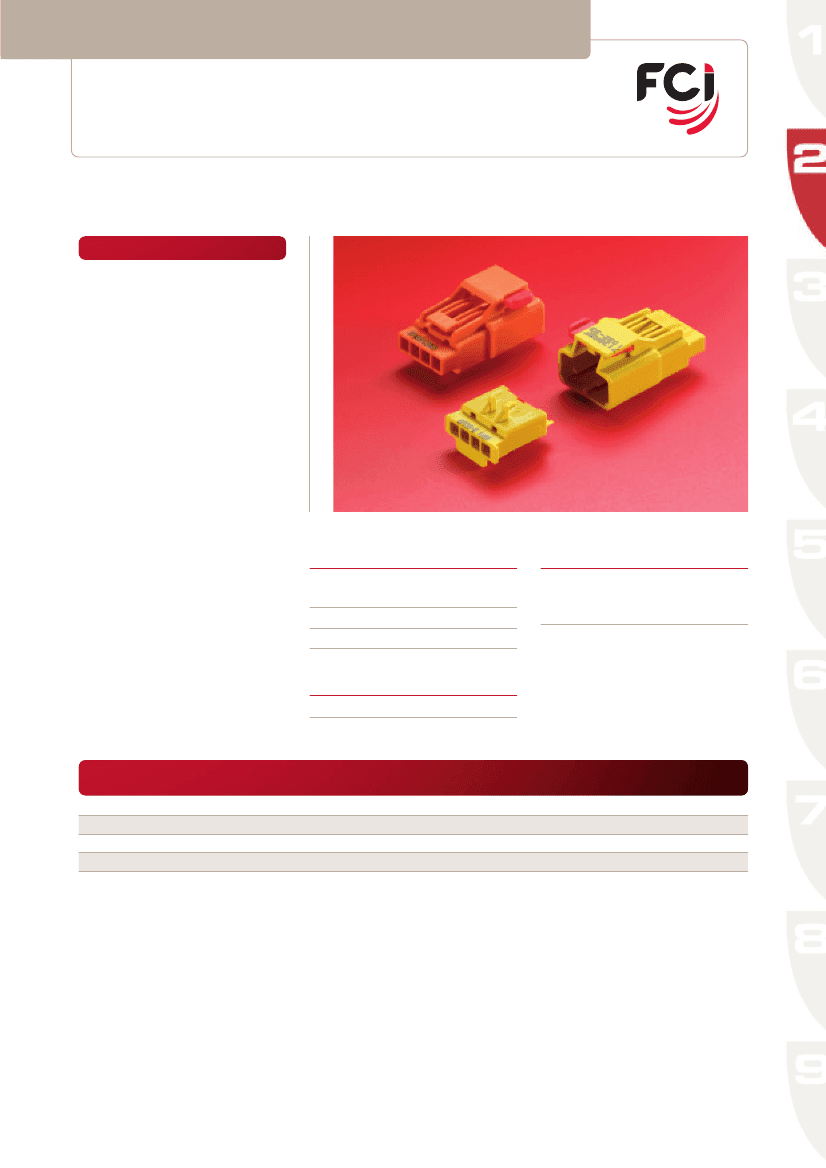

Safety Restraints Interconnection System

Coupling connectors

Apex

Coupling housings for 2.8 mm terminals with CPA

Features

•

5.25 mm pitch

•

Pre-assembled front grids on

female housing support blade

terminal guiding and mating

Terminal position assurance (T.P.A.)

Connector position assurance

(C.P.A.)

Male housing with an integrated

gold-plated shorting clip

Shorting clip available between

circuits 1+2, 3+4 or both on

4 position male housing

•

Performance characteristics

•

Temperature range:

from -40°C to +125°C

Connector compatibility

•

Usable terminals:

- Apex 2.8 mm female terminals

- Apex 2.8 mm male terminals

•

Contact retention force:

•

Contact insertion force:

> 75 N

< 4.5 N

Construction

•

Housing material:

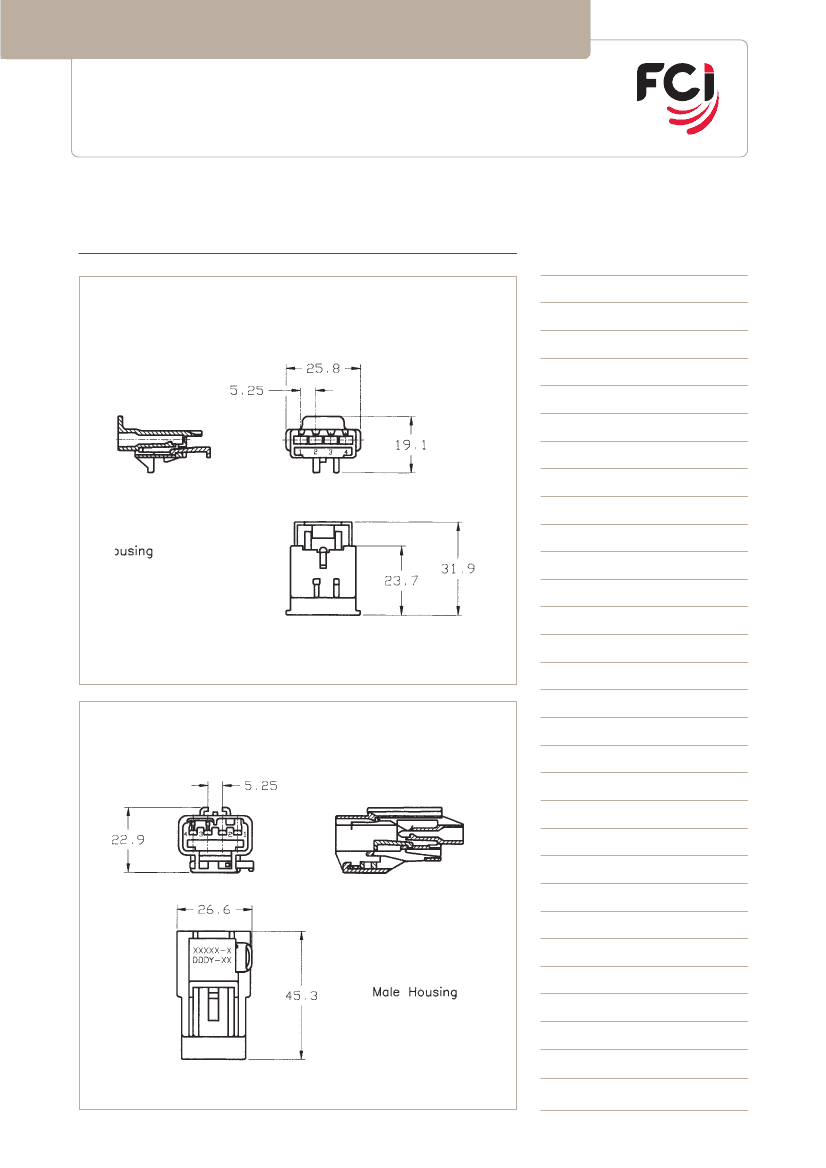

Part Numbers

54550400

54550401

54550402

54550403

No. of

position

Terminal

size

2.8 mm

Type

Female housing

Male housing

Clip

shorting

Pos. 1+2

Pos. 1+2, 3+4

Pos. 3+4

Code

Colour

Yellow

Orange

Yellow

2.37
