SML10Y3KH-TR: DescriptionSingle Color LED, Ultra Yellow, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMT, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size230KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my; Environmental Compliance

Download Datasheet Parametric Compare View All

SML10Y3KH-TR Overview

Single Color LED, Ultra Yellow, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMT, 2 PIN

SML10Y3KH-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	LEDtronics
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMT, 2 PIN
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	ULTRA YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	120.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	595 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	120 deg

Preview

Download Datasheet

View All



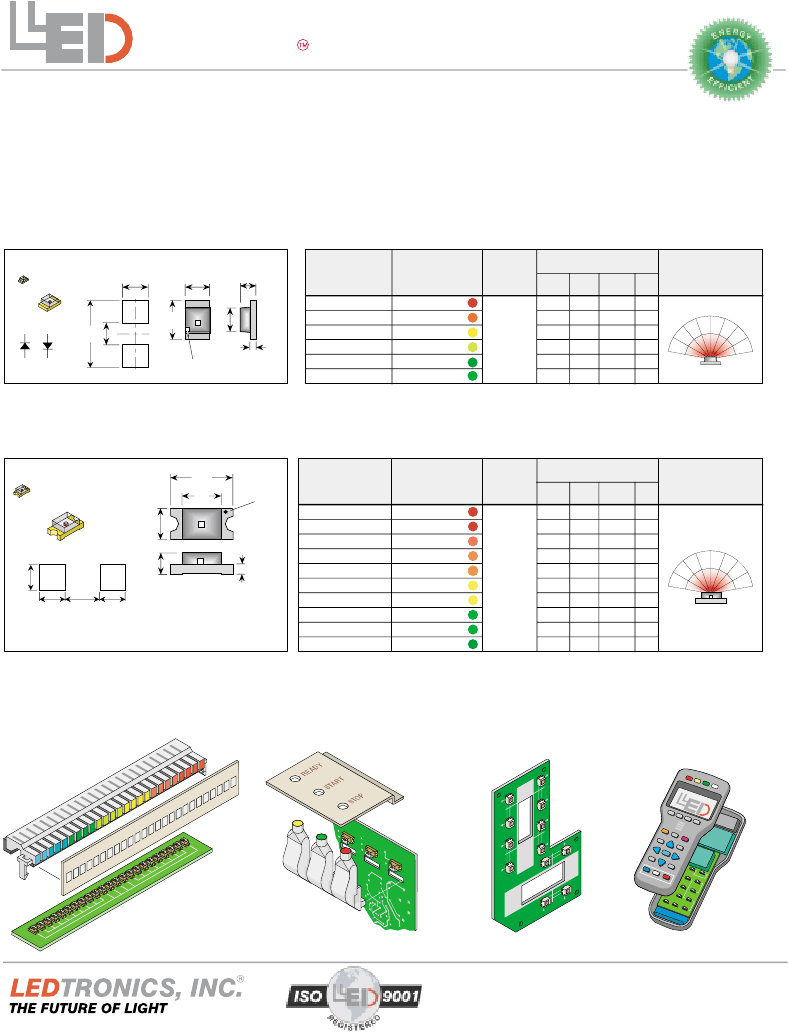

RGB, Vertical, Right Angle for Light Pipes & Backlighting

SurfLED Surface Mount LEDs

Features

Applications

•

Compatible With Automatic

Placement Equipment

•

Compatible With IR and Vapor

Phase Reflow Solder processes

•

Small Size and Low Profile

•

Ideal for High Density

Mounting

•

EIA Standard 8mm Tape, 7" Reel

2x1.25mm Miniature SurfLED

SML06X4C-TR

Actual size

.051

[1.3]

.049

[1.25]

.047

[1.2]

.044

[1.1]

.134

[3.4]

.012

[0.3]

CATHODE MARK

RECOMMENDED SOLDERING PAD

.079

[2.0]

•

Industry Standard Footprint

•

Optical Coupling into Light Pipes

•

Backlighting Legends, LCD

•

Logic/ Fault Status Indicator

•

Backlighting Bargraph Light Pipes

Electrical-Optical

.032

[0.8]

Part Number

(1)

(2)

SML06R6C-TR

SML06O4C-TR

SML06Y4C-TR

SML06LY4C-TR

SML06G4C-TR

LED Color

UL RED

ORANGE

YELLOW

LIME YELLOW

GREEN

Lens Type/

Characteristics (Ta = 25˚C)

If = mA Iv mcd Vf = V

Color

λP

typ

typ/max nm

Full Viewing Angle

CLEAR

11.7

1.7/2.3 660

3.7 2.2/2.8 605

3.7 2.2/2.8 580

11.7

2.1/2.8 570

6.4 2.1/2.8 560

2.7 2.1/2.8 555

(1)

(2)

4000 / 7" REEL

SML06PG4C-TR PURE GREEN

150˚

Direct Cross to:

Stanley:

BR1112H, AA1112H, AY1112H, PY1112H, PG1112H, BG1112H

HP:

HSMH-C670, HSMD-C670, HSMY-C670, HSMG-C670

Lumex:

SML-LX0805 (SRC, IC, SYC, YC, GC)

IDI:

CMD17-21 (SRC, VRC, VYC, VGC, UGC)

ROHM:

SML-210 (LT, VT, DT, YT, MT, PT)

3.2x1.6 SurfLED

SML10X4H-TR

Actual size

Electrical-Optical

.125

[3.2]

.079

[2.0]

.062

[1.6]

CATHODE

MARK

Part Number

SML10R3KH-TR

SML10R6H-TR

SML10R4H-TR

SML10O3KH-TR

SML10O4H-TR

SML10Y3KH-TR

SML10Y4H-TR

SML10G4H-TR

SML10G5H-TR

SML10PG4H-TR

LED Color

SP RED

UL RED

HE RED

SP ORANGE

ORANGE

SP YELLOW

YELLOW

GREEN

UL GREEN

PURE GREEN

Characteristics (Ta = 25˚C)

Lens Type/

λP

If = mA Iv mcd Vf = V

Color

typ

typ/max

Full Viewing Angle

WATER-

CLEAR

45.0 2.0/2.6 660

30.0 1.7/2.6 660

12.0 2.0/2.6 635

60.0 2.0/2.5 620

15.0 2.0/2.6 610

60.0 2.1/2.5 595

10.0 2.1/2.6 585

15.0 2.2/2.6 568

00 2.2/2.6 568

1.5 2.2/2.6 555

.059

[1.5]

.043

[1.1]

.020

[0.5]

.059

[1.5]

.078

[2.0]

.059

[1.5]

140˚

RECOMMENDED SOLDERING PAD

Direct Cross to:

Dialight:

597-3001-107, 597-3301-107, 597-3401-107

HP:

HSMH-C650, HSMS-C650, HSMD-C650, HSMY-C650, HSMG-C650

Lumex:

SML-LX1206SRC, SML-LX1206IC, SML-LX1206SYC,

SML-LX1206YC, SML-LX1206GC

IDI:

CMD15-21 (SRC, VRC, VYC, VGC, UBC, UGC, VRD, VGD, VYD)

Bar graph

Light pipe application

Backlighting

23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com

Log # 016A Rev 08-2000
