EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Side View White SMD LEDs
57-11UTC/S827-1/TR8

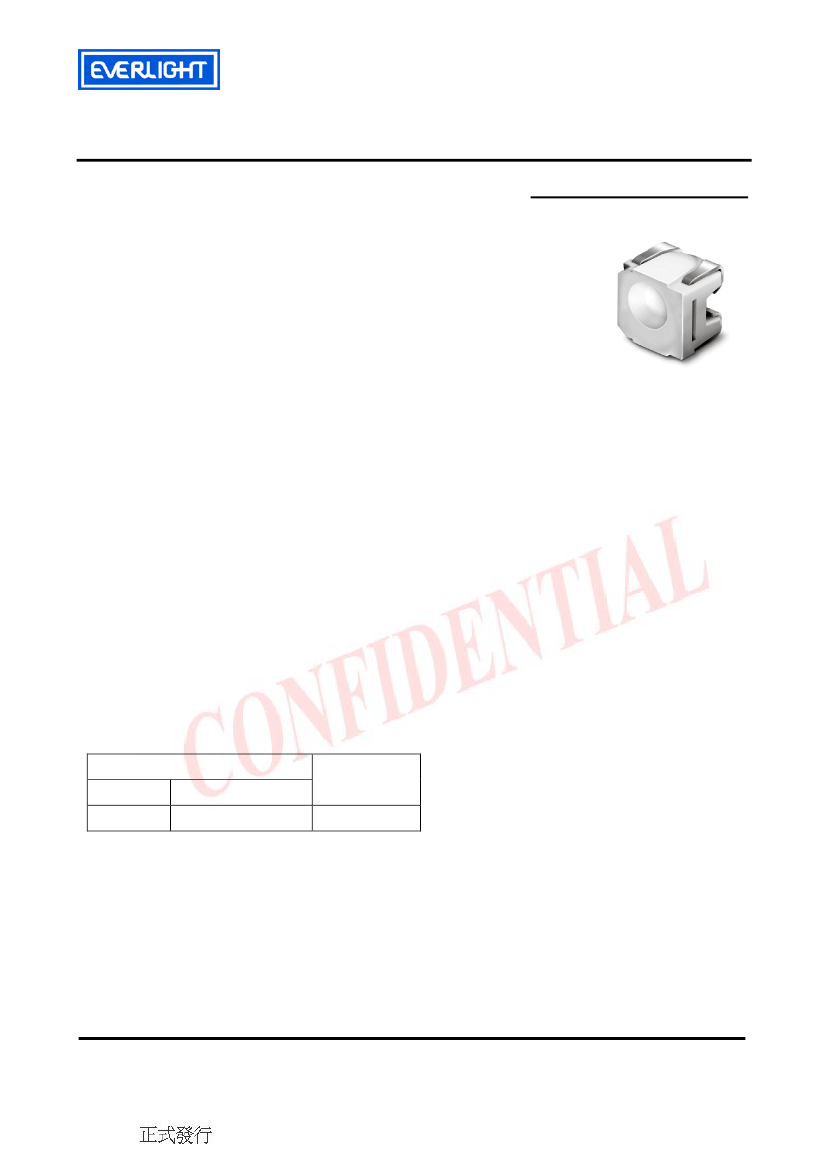

Features
˙Fluorescence Type
․High
Luminous Intensity
․High
Efficiency
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
․ESD
protection.
Descriptions
The 57-11series is available in soft orange, green,blue
and yellow. Due to the package design, the LED has
wide viewing angle and optimized light coupling by
inter reflector. This feature makes ideal for light pipe
application. The low current requirement makes this
device ideal for portable equipment or any other
application where power is at a premium.
Applications
․OA
Equipment
․Backlighting
of Full Color LCD
․Automotive
Equipment
․Replacement
of Conventional Light
Bulbs and Fluorescent Lamps
Device Selection Guide
Chip
Material
InGaN
Emitted Color
White
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device No. : DSE-571-050
http://www.everlight.com
Prepared date : 30-May-2007
Rev.1
Page: 1 of 11
Prepared by:Teresa
Revision
:1
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Side View White SMD LEDs
57-11UTC/S827-1/TR8

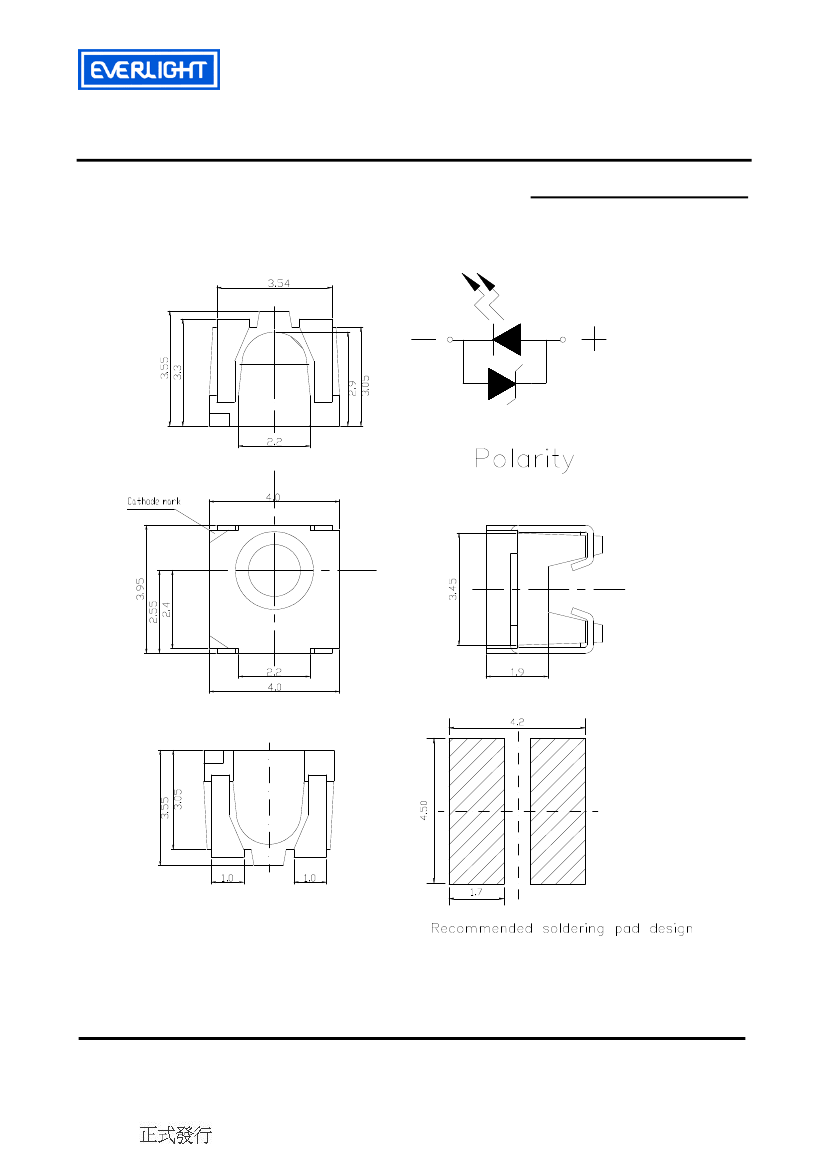

Package Dimensions
Note:
The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-571-050
http://www.everlight.com
Prepared date : 30-May-2007
Rev. 1
Page: 2 of 11
Prepared by:Teresa
Revision
:1
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Side View White SMD LEDs
57-11UTC/S827-1/TR8
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Rating
5
30
100
110
2000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Soldering Temperature
Tsol
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Luminous Intensity
Viewing Angle
Forward Voltage
Symbol
I
V
2θ1/2
V
F
Min.
900
--
2.75
Typ.
-----
120
-----
Max.
1800
--
3.95
Units
mcd
deg
V
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd.
Device No. : DSE-571-050
http://www.everlight.com
Prepared date : 30-May-2007
Rev. 1
Page: 3 of 11
Prepared by:Teresa
Revision
:1
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Side View White SMD LEDs
57-11UTC/S827-1/TR8
Bin Range Of Luminous Intensity
Bin
V2
W1
W2
Group
Bin
5
M
6
7
8
Min
900
1120
1420
Min
2.75
3.05
3.35
3.65
Max
1120
1420
1800
Max
3.05
3.35
3.65
3.95
V
I
F
=20mA
Unit
Condition
mcd
I
F
=20mA
Unit
Condition
Bin Range Of Forward Voltage
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd.
Device No. : DSE-571-050
http://www.everlight.com
Prepared date : 30-May-2007
Rev. 1
Page: 4 of 11
Prepared by:Teresa
Revision
:1
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Side View White SMD LEDs
57-11UTC/S827-1/TR8

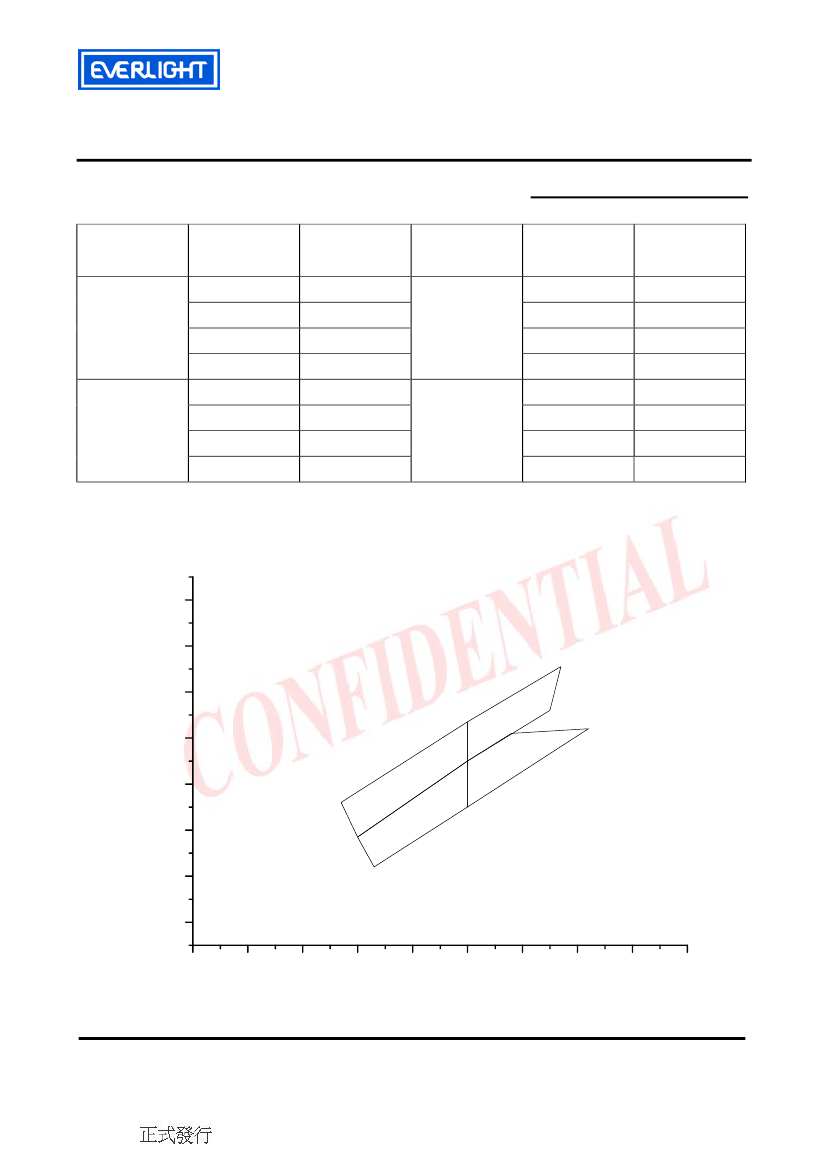

Bin Range Of Chromaticity Coordinates
Bin Code
CIE_x
CIE_y
Bin Code
CIE_x
CIE_y
6K
7K
Notes:
0.3130
0.3100
0.3300
0.3300
0.3300
0.3300
0.3380
0.3520
0.2840
0.2970
0.3300
0.3100
0.3100
0.3300
0.3420
0.3440
6L
7L
0.3100
0.3070
0.3300
0.3300
0.3300
0.3300
0.3470
0.3450
0.2970
0.3120
0.3470
0.3300
0.3300
0.3470
0.3710
0.3520
1.Tolerance of Chromaticity Coordinates: ±0.01
0.40
0.38
0.36
0.34
7L
7K
y
0.32
0.30
0.28
0.26
0.28
0.29
0.30
0.31
6L
6K
0.32
0.33
0.34
0.35
0.36
0.37
X
Everlight Electronics Co., Ltd.
Device No. : DSE-571-050
http://www.everlight.com
Prepared date : 30-May-2007
Rev. 1
Page: 5 of 11
Prepared by:Teresa
Revision
:1
Release Date:2008-09-20 00:15:56.0
Expired Period: Forever
LifecyclePhase:
