BA6796FP-E2 Overview

CD Motor Driver, PDSO28, HSOP-28

BA6796FP-E2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSOP-28
Contacts	28
Reach Compliance Code	compliant
Drive type	OPTICAL
Interface integrated circuit type	CD MOTOR DRIVER
JESD-30 code	R-PDSO-G28
JESD-609 code	e3/e2
length	18.5 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum supply voltage	12 V
Minimum supply voltage	4.8 V
surface mount	YES
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm

BA6796FP-E2 Preview

Optical disc ICs

5-channel BTL driver for CD players

BA6796FP

The BA6796FP, an IC designed for CD and MD players, has a 5-channel BTL power driver and a standard operational

amplifier. The spindle and tray driver share a single output buffer, and are specified with a control pin. In addition, the

internal level shift circuit reduces the number of attached components.

FApplications

CD players, CD-ROM drives, MD players and other optical disc devices

FFeatures

1) 5-channel BTL driver in a 28-pin HSOP package, al-

lowing for application miniaturization.

2) The five drivers are turned on and off according to

control pin logic combinations.

3) The tray driver operates even when the servo power

supply drops.

FAbsolute

maximum ratings (Ta = 25_C)

4) Internal thermal shutdown circuit.

5) Gain is adjustable with an attached resistor.

6) Internal standard operational amplifier.

FRecommended

operating conditions (Ta = 25_C)

483

Optical disc ICs

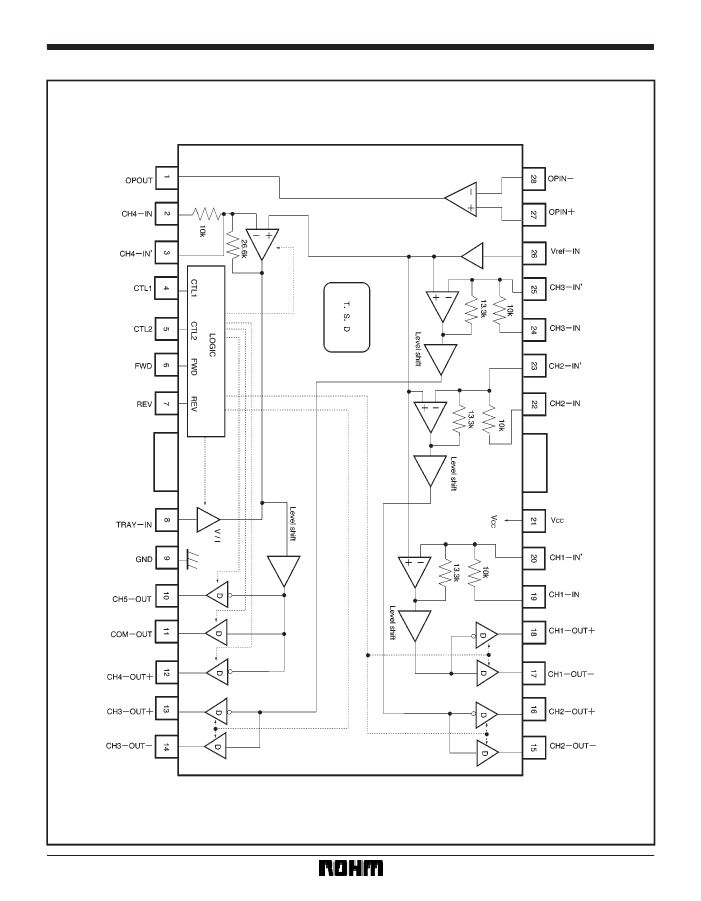

FBlock

diagram

BA6796FP

484

Optical disc ICs

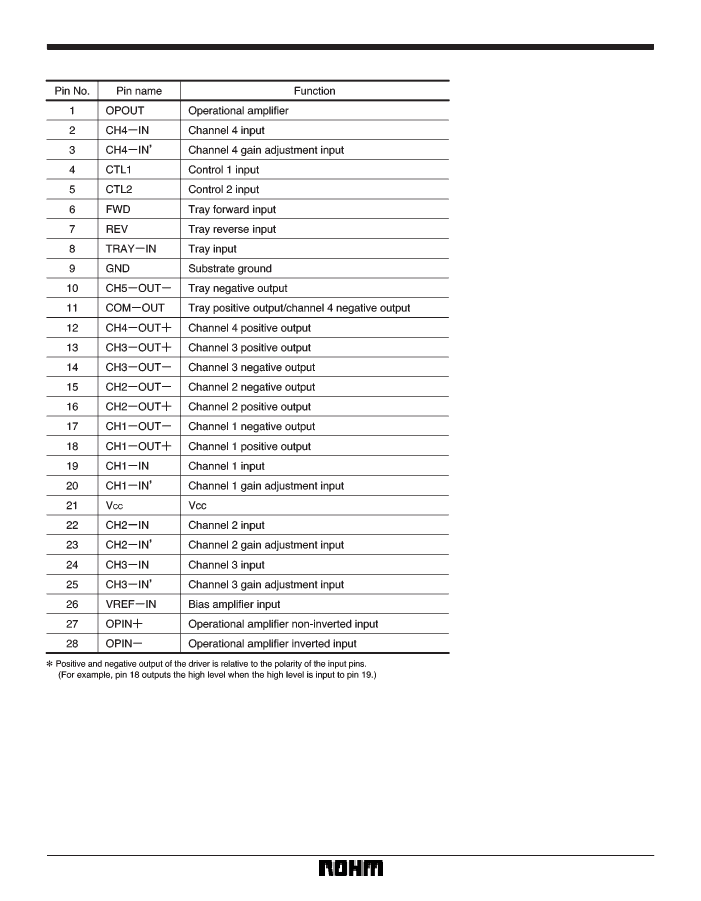

FPin

descriptions

BA6796FP

485

Optical disc ICs

FInput

/ output circuits

BA6796FP

486

Optical disc ICs

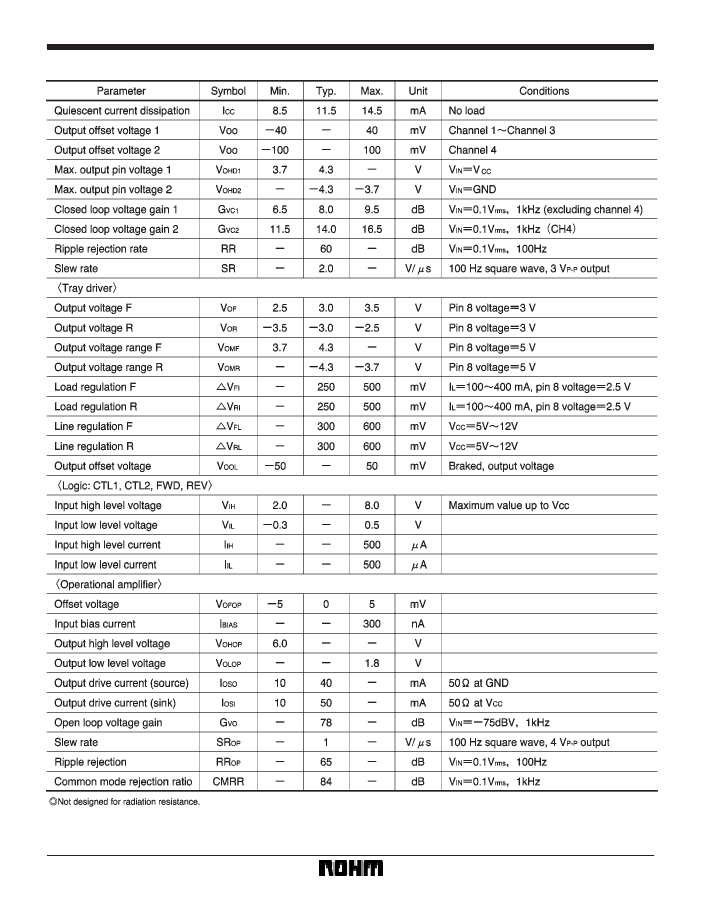

FElectrical

characteristics (unless otherwise noted, Ta = 25_C, V

= 8V, f = 1kHz, R

= 8Ω)

BA6796FP

487

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
