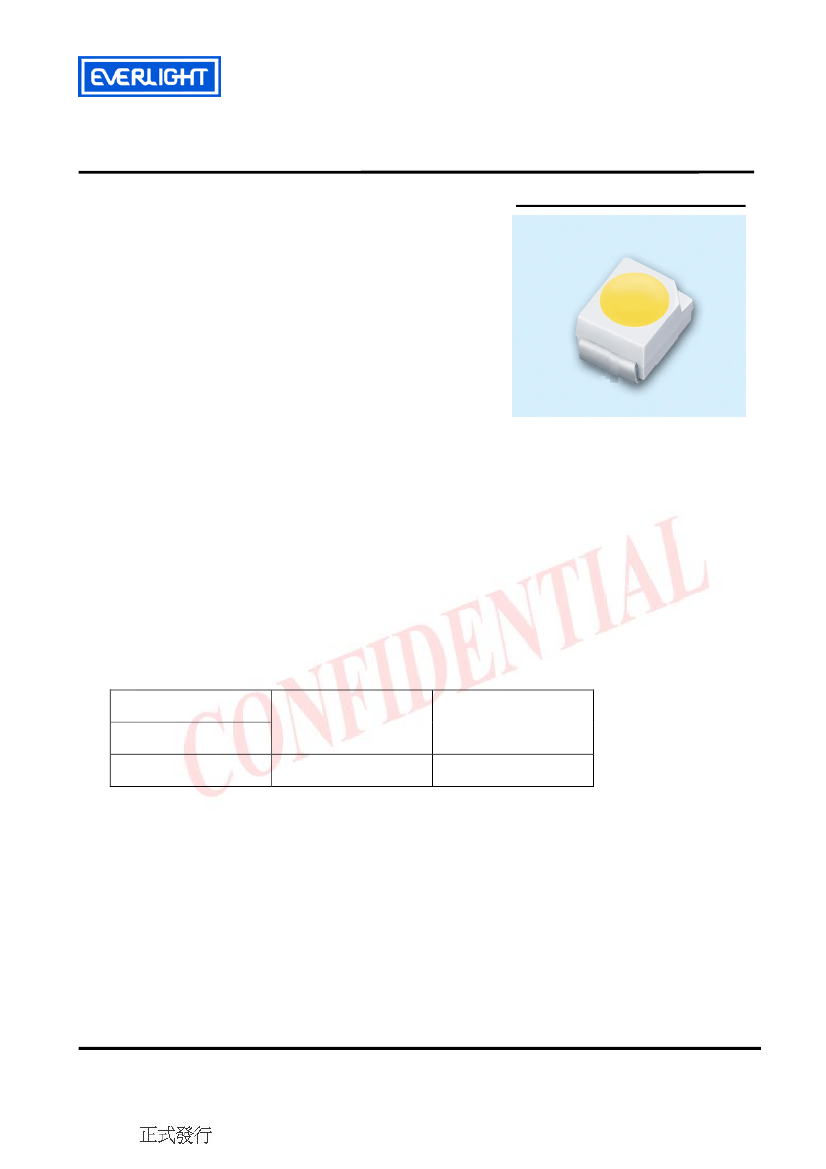

EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
Top View LEDs
67-21/T2C-ZV1W2E/2T
Features
․P-LCC-2
package.
˙Fluorescence
Type
․High
Luminous Intensity
․High
Efficiency
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
Descriptions
The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is
excited by blue light and emits yellow fluorescence.The mixture of blue light and yellow light
results in a white emission.
Applications
․OA
equipment
․Backlighting
of full color LCD
․Automotive
equipment
․Replacement
of conventional light bulbs and fluorescent lamps
Device Selection Guide
Chip
Emitted Color
Material
InGaN
White
Water Clear
Resin Color
Everlight Electronics Co., Ltd.
http://www.everlight.com
Rev. 1
Page: 1 of 11
Revision
Device No. : DSE-671-613
:1
LifecyclePhase:
Prepared date: 19-Nov-2007
Release Date:2008-09-20
Fang
Prepared by: Ya-Hui
00:15:57.0
Expired Period: Forever
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
Top View LEDs
67-21/T2C-ZV1W2E/2T

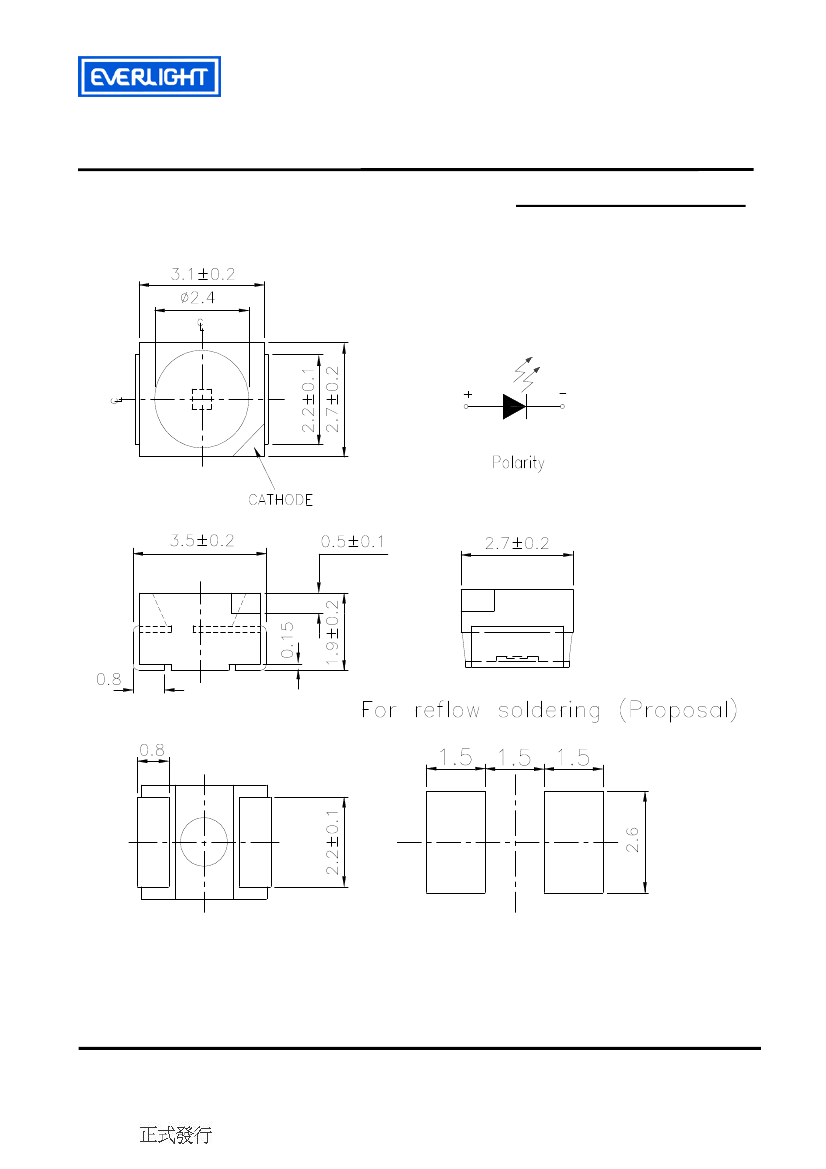

Package Dimensions
Note:
Tolerance unless mentioned is: ±0.1mm; Unit = mm
Everlight Electronics Co., Ltd.
http://www.everlight.com
Rev. 1
Page: 2 of 11
Revision
Device No. : DSE-671-613
:1
LifecyclePhase:
Prepared date: 19-Nov-2007
Release Date:2008-09-20
Fang
Prepared by: Ya-Hui
00:15:57.0
Expired Period: Forever
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
Top View LEDs
67-21/T2C-ZV1W2E/2T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current (Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
5
30
100
110
1000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Forward Voltage
Reverse Current
Symbol
I
V
2θ1/2
V
F
I
R
Min.
715
--
2.75
--
Typ.
--
120
--
--
Max.
1800
--
3.65
50
Units
mcd
deg
V
μA
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity:
±11%
2.Tolerance of Forward Voltage:
±0.05V
Everlight Electronics Co., Ltd.
http://www.everlight.com
Rev. 1
Page: 3 of 11
Revision
Device No. : DSE-671-613
:1
LifecyclePhase:
Prepared date: 19-Nov-2007
Release Date:2008-09-20
Fang
Prepared by: Ya-Hui
00:15:57.0
Expired Period: Forever
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
Top View LEDs
67-21/T2C-ZV1W2E/2T
Bin Range of Luminous Intensity
Bin Code
V1
V2
W1
W2
Min.
715
900
1120
1420
Max.
900
1120
1420
1800
mcd
I
F
=20mA
Unit
Condition
Bin Range of Forward Voltage
Group
Bin Code
5
E
6
7
Min.
2.75
3.05
3.35
Max.
3.05
3.35
3.65
V
I
F
=20mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity:
±11%
2.Tolerance of Forward Voltage:
±0.1V
Everlight Electronics Co., Ltd.
http://www.everlight.com
Rev. 1
Page: 4 of 11
Revision
Device No. : DSE-671-613
:1
LifecyclePhase:
Prepared date: 19-Nov-2007
Release Date:2008-09-20
Fang
Prepared by: Ya-Hui
00:15:57.0
Expired Period: Forever
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
Top View LEDs
67-21/T2C-ZV1W2E/2T

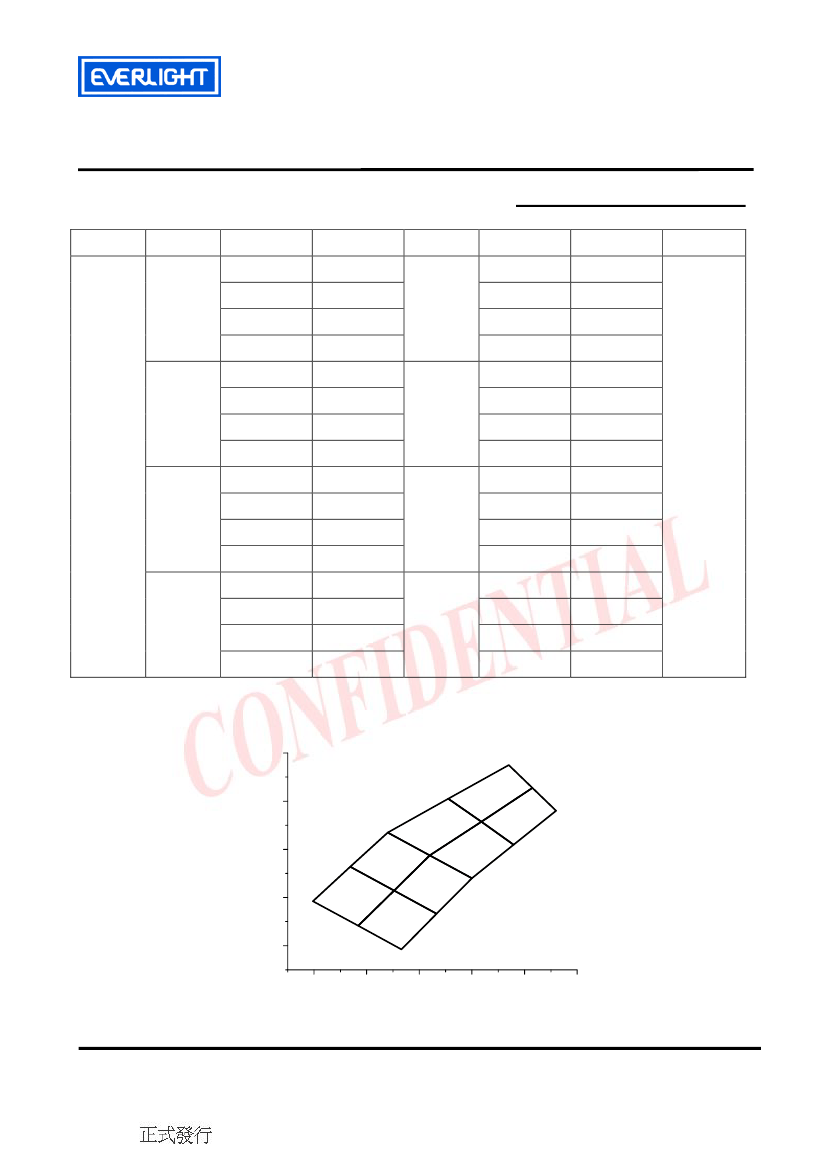

Bin Range of Chromaticity Coordinate
Group
Bin Code
CIE_x
0.2720
A0-1
0.2640
0.2755
0.2818
0.2818
A0-2
Z
A0+1
0.2755
0.2870
0.2915
0.2569
0.2498
0.2584
0.2652
0.2640
A0+2
0.2569
0.2652
CIE_y
0.2575
0.2670
0.2810
0.2715
0.2715
0.2810
0.2950
0.2855
0.2528
0.2385
0.2283
0.2429
0.2670
0.2528
0.2429
A0+4
A0+3
A0-4
A0-3
Bin Code
CIE_x
0.2800
0.2720
0.2818
0.2879
0.2879
0.2818
0.2915
0.2960
0.2652
0.2584
0.2666
0.2733
0.2720
0.2652
0.2733
0.2800
CIE_y
0.2480
0.2575
0.2715
0.2619
0.2619
0.2715
0.2855
0.2760
0.2429
0.2283
0.2185
0.2333
0.2575
0.2429
0.2333
0.2480
I
F
=20mA
Condition
0.2720
0.2575
Note:
Tolerance of Chromaticity Coordinates: ±0.01
The C.I.E. 1931 Chromaticity Diagram
0.30
0.28
0.26
y
0.24
0.22
0.25
0.26
0.27
x
0.28
0.29
0.30
A0+2
A0+1
A0+3
A0-2
A0-4
A0-1
A0-3
A0+4
Everlight Electronics Co., Ltd.
http://www.everlight.com
Rev. 1
Page: 5 of 11
Revision
Device No. : DSE-671-613
:1
LifecyclePhase:
Prepared date: 19-Nov-2007
Release Date:2008-09-20
Fang
Prepared by: Ya-Hui
00:15:57.0
Expired Period: Forever
