SDAD102E2.5: DescriptionSTANDARD RECOVERY STACKABLE HIGH VOLTAGE RECTIFIER; CategoryDiscrete semiconductor diode; File Size78KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric View All

SDAD102E2.5 Overview

STANDARD RECOVERY STACKABLE HIGH VOLTAGE RECTIFIER

SDAD102E2.5 Parametric

Parameter Name	Attribute value
Maker	SSDI
package instruction	HERMETIC SEALED PACKAGE-1
Contacts	1
Reach Compliance Code	compli
ECCN code	EAR99
application	HIGH VOLTAGE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-MUPM-X1
Maximum non-repetitive peak forward current	200 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	7.7 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum reverse recovery time	5 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER

Preview

Download Datasheet

View All

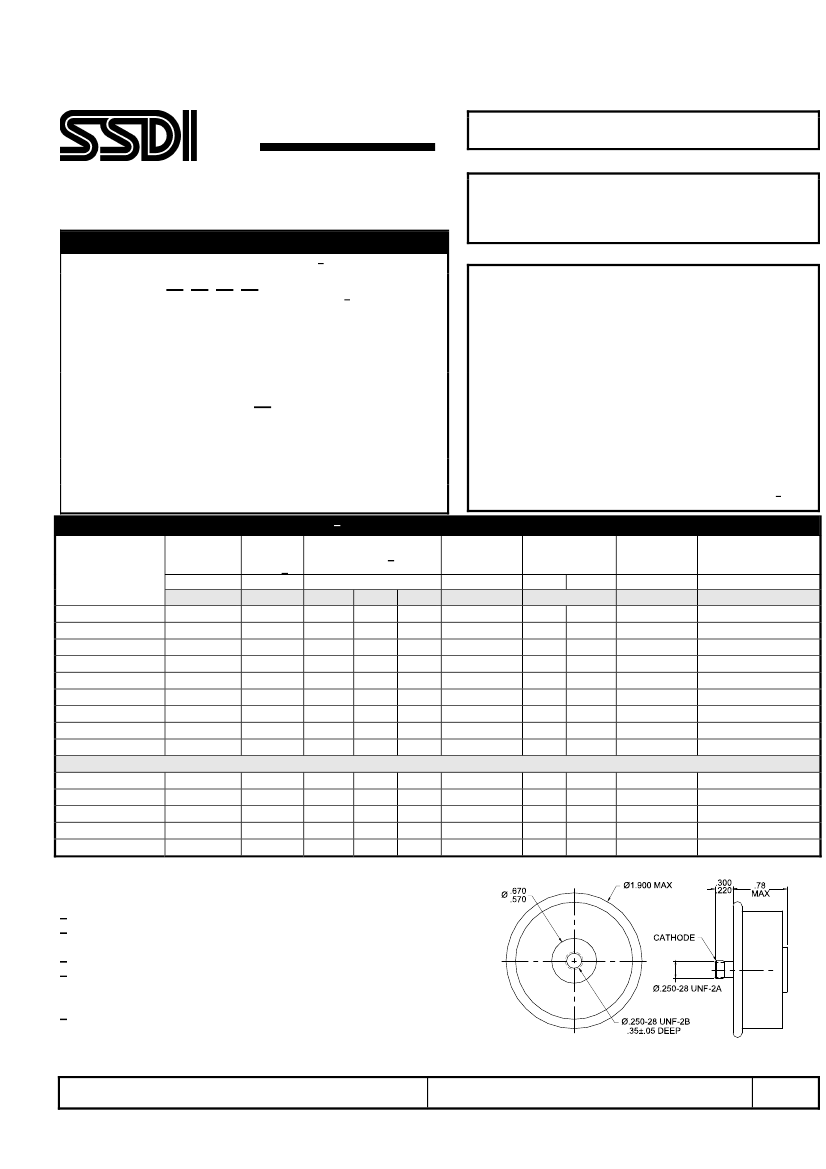

SDAD102 Series

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, CA 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

Part Number/Ordering Information

1/

SDAD10 2

__ __ __ __

│ │ │ │ └

Screening

2/

│

└

Designer’s Data Sheet



2,500 to 15,000 VOLTS

STANDARD RECOVERY

STACKABLE HIGH VOLTAGE RECTIFIER

FEATURES:

Stackable to 600 kV+

PIV 2.5kV to 15kV

High Current Ratings

Standard Reverse Recovery Time

Only Hermetically Sealed Rectifiers Used

Controlled Avalanche Rated

Modular Design for Easy Stacking

Storage and Operating Temps -65

°

C to +150

°

C

Available in Fast, Ultra Fast and Hyper Fast

Versions

Replacement Upgrade- Microsemi/Unitrode

types UDE-2.5 through UDA-15

TX, TXV, and S-Level Screening Available

2/

Maximum

Forward Voltage

Drop

Maximum

Leakage

Current @PIV

│ │ │

__

= Not Screened

│ │ │

TX = TX Level

│ │ │

TXV = TXV Level

│ │ │

S = S Level

│ │ └

Reverse Recovery Time

│ │

__

= Standard Recovery Time

│ └

Voltage

│

2.5 = 2.5kV, 5 = 5kV, 7.5 = 7.5kV,

│

10 = 10kV, and 15 = 15kV

│

└

Power Rating

(See Below)

Package Size

= 2 Inches Diameter

Peak Inverse

Voltage

Reverse

Recovery

Time

5/

Average DC Output

Current

4/

Tc = Case Temperature

ELECTRICAL CHARACTERISTICS

3/

Part Number

SDAD102E2.5

SDAD102B2.5

SDAD102E5.0

SDAD102B5.0

SDAD102A5.0

SDAD102B7.5

SDAD102A7.5

SDAD102A10

SDAD102A15

SDAD102H2.5

SDAD102H5.0

SDAD102H7.5

SDAD102H10

SDAD102H15

NOTES:

1/

For ordering information, price, curves, and availability- contact factory.

2/

Screening based on MIL-PRF-19500. Screening flows available on

request.

3/

Unless otherwise specified, all electrical characteristics @25ºC.

4/

Tc = 50 ºC typical operation in oil.

Tc = 75 ºC is typical ambient Ta = 25 ºC unheatsunk.

Tc = 60 ºC typical operation with extender plates in air.

5/

Recovery conditions: I

F

= 0.5 Amp, I

R

= 1.0 Amp rec. to .25 Amp.

Surge

Non-repetitive

Replacement Part

Number

PIV (KV)

25

C

Max (ns)

25

C

If(avg)

75

C

50

C

60

C

Ifsm

100

C

Vf (V) If (A)

25

C

Ir (uA)

25

C

2.5

5.0

7.5

10

15

2.5

5.0

7.5

10

15

5000

6.00

3.00

4.50

2.00

1.65

1.33

1.25

1.00

0.67

12.0

9.00

2.66

2.00

1.33

7.70 7.00

200

4.25 3.75

100

5.50 5.00

200

2.75 2.50

100

2.20 2.00

30

2.00 1.65

100

1.75 1.55

30

1.40 1.25

30

0.90 0.80

30

High Current Versions

15.4 14.0

250

11.0 10.0

250

4.00 3.30

125

2.80 2.50

100

1.80 1.60

100

SDAD102 Package:

5.0

4.0

10

8.0

12

16

25

3.40

6.80

8.85

12.1

17.6

3.0

1.5

2.2

1.0

0.82

0.7

0.6

0.5

0.33

10

3.5

2.0

1.8

1.1

10

5

10

5

2

5

2

20

10

UDE-2.5

UDB-2.5

UDE-5

UDB-5 / 1N5600

UDA-5

UDB-7.5

UDA-7.5

UDA-10 / 1N5597

UDA-15

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RA0067C

DOC
