3KP150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3KP150

3KP150: Description3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size375KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

3KP150 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3KP150	-	-	View	Buy Now

3KP150 Overview

3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE

3KP150 Parametric

Parameter Name	Attribute value
Maker	SEMIKRON
package instruction	O-PALF-W2
Contacts	2
Manufacturer packaging code	CASE P-600
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakdown voltage	204 V
Minimum breakdown voltage	167 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	3000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

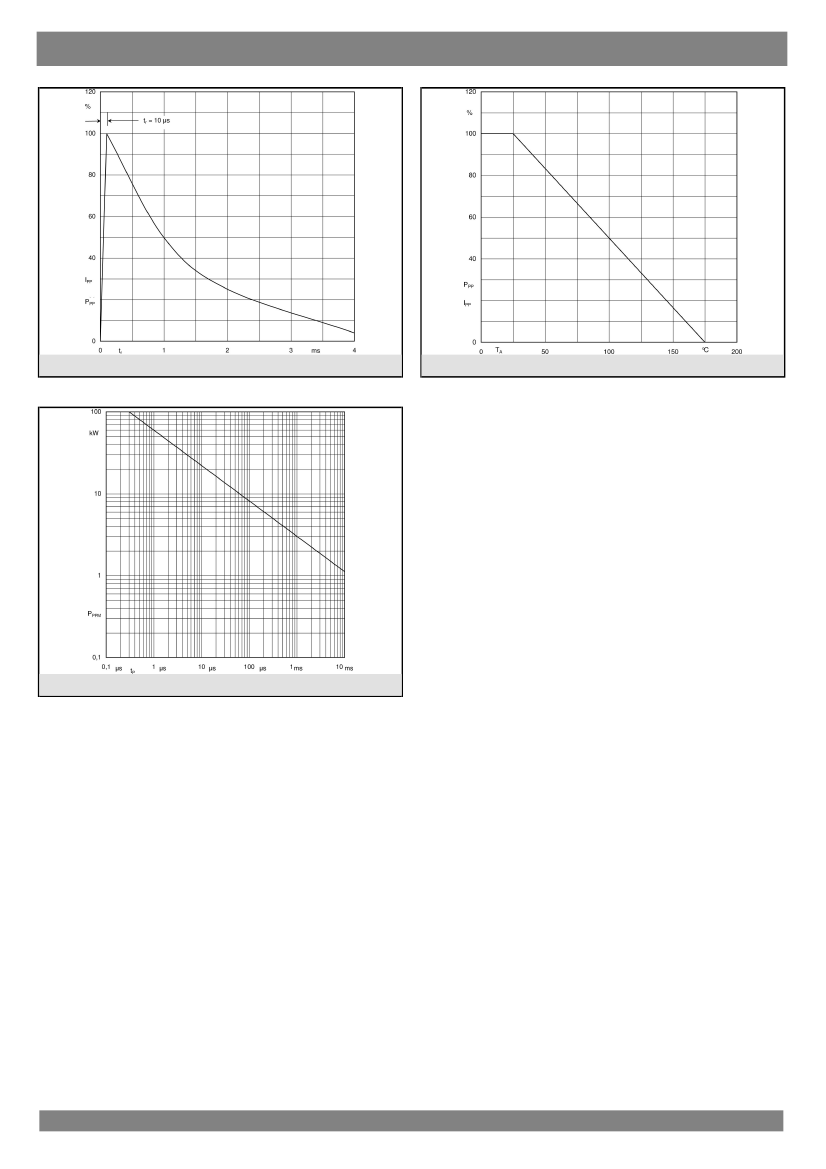

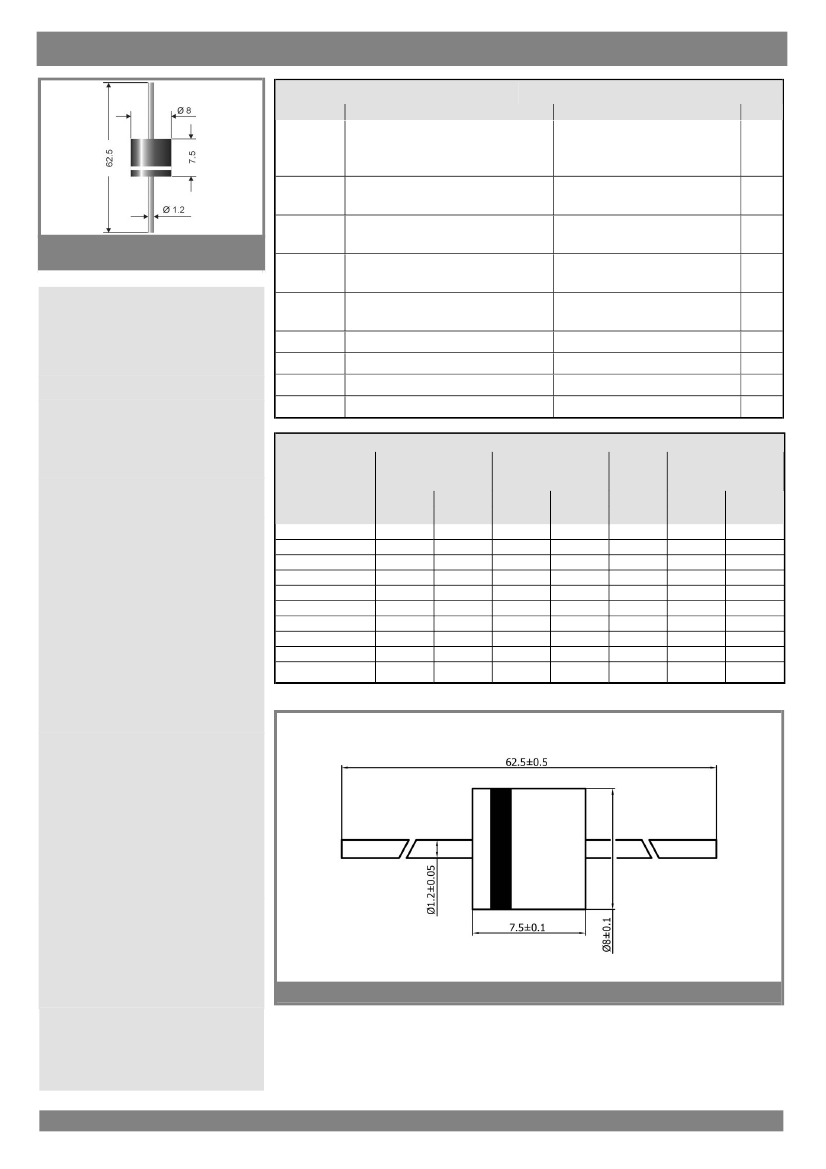

3 KP 130 ... 3 KP 180CA

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Axial lead diode

Unidirectional and

bidirectional Transient

Voltage Suppressor

diodes

3 KP 130 ... 3 KP 180CA

Pulse Power

Dissipation: 3000 W

Stand-off

voltage: 130 ... 180 V

Features

Dimensions in mm

Mechanical Data

23-10-2009 MAM

3KP150 Related Products

	3KP150	3KP130_09	3KP160A	3KP170A	3KP180A	3KP180CA	3KP170	3KP160	3KP130A	3KP180
Description	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	3000 W, BIDIRECTIONAL, SILICON, TVS DIODE	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE	3000 W, UNIDIRECTIONAL, SILICON, TVS DIODE
Maker	SEMIKRON	-	SEMIKRON	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
package instruction	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	-	2	2	-	2	2	2	2	2
Manufacturer packaging code	CASE P-600	-	CASE P-600	CASE P-600	-	CASE P-600	CASE P-600	CASE P-600	CASE P-600	CASE P-600
Reach Compliance Code	unknow	-	unknown	unknow	-	unknown	unknow	unknow	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum breakdown voltage	204 V	-	198 V	210 V	-	231 V	231 V	217 V	160 V	253 V
Minimum breakdown voltage	167 V	-	178 V	189 V	-	209 V	189 V	178 V	144 V	209 V
Shell connection	ISOLATED	-	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	-	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	-	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	-	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	3000 W	-	3000 W	3000 W	-	3000 W	3000 W	3000 W	3000 W	3000 W
Number of components	1	-	1	1	-	1	1	1	1	1
Number of terminals	2	-	2	2	-	2	2	2	2	2
Maximum operating temperature	175 °C	-	175 °C	175 °C	-	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-50 °C	-	-50 °C	-50 °C	-	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	-	ROUND	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	-	LONG FORM	LONG FORM	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	-	UNIDIRECTIONAL	UNIDIRECTIONAL	-	BIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	8 W	-	8 W	8 W	-	8 W	8 W	8 W	8 W	8 W
Certification status	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	-	160 V	170 V	-	180 V	170 V	160 V	130 V	180 V
surface mount	NO	-	NO	NO	-	NO	NO	NO	NO	NO
technology	AVALANCHE	-	AVALANCHE	AVALANCHE	-	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	-	WIRE	WIRE	-	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	-	AXIAL	AXIAL	-	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	-	-	1	-	1	1	1	1	-
