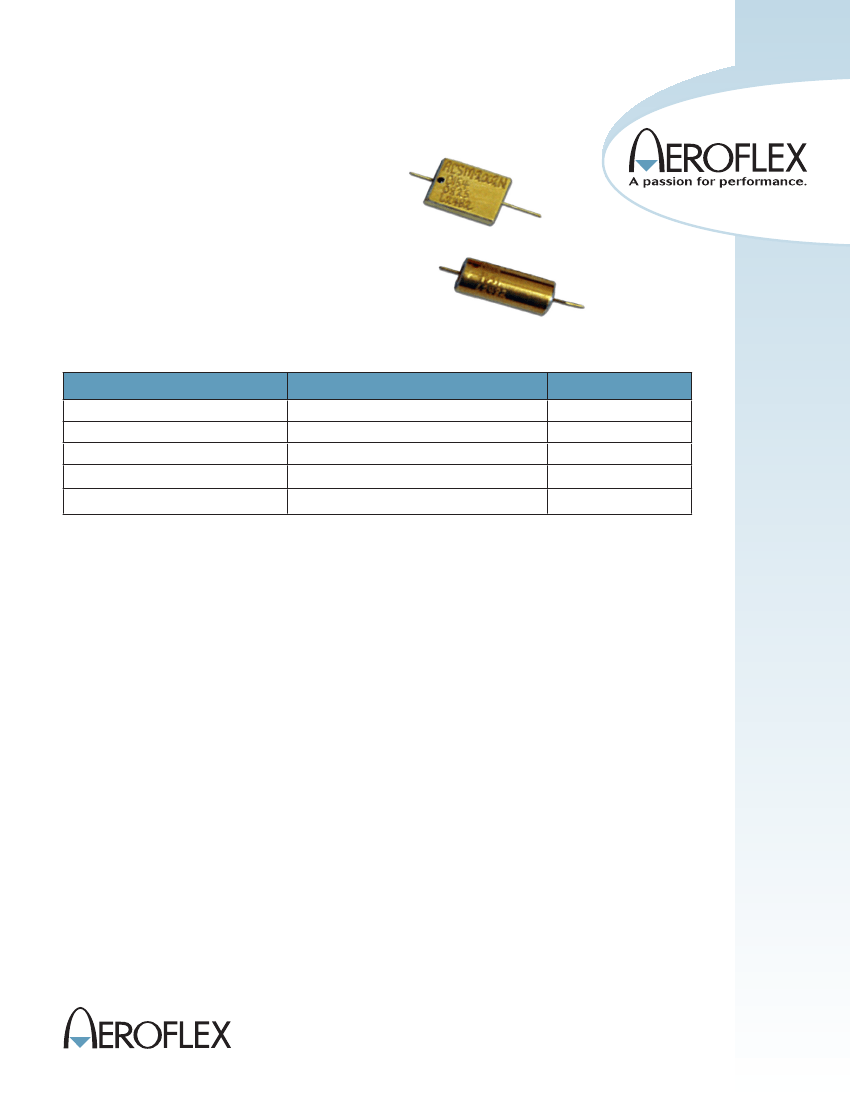

ACSM-2002
Schottky Diode Module Detector
Features:
•
Contains hermetically sealed modules, inter-
nal RF matching, DC return, and RF bypass
capacitor.
The video port is protected from static or
transient charges.
Input impedance matching.
Models may be chosen for broadband RF
performance of for optimized narrow bands
•
•
•
Specifications:
Parameter
Frequency Range (min)
Sensitivity (min)
Flatness vs. Frequency (max)
Typical TSS
Nominal Video Capacitance
Specification
2– 4
2000
0.4
-53
20
Units
GHz
mV/mW
±dB
dBm
pF
Notes:
Maximum input power: +20 dBm
Sensitivity is measured into an open circuit load
(>10k ohm).
Standard bias is 100 uA.
Video capacitance is used for RF bypass. This value
can be changed if required for video response time.
Contact the factory for more information.
SCREENING:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65 °C to +100 °C, 10 cycles
OPTIONAL HIGH-REL SCREENING
(Ref MIL-PRF-38534):
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883,
Method 2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
SIGNAL & CONTROL SOLUTIONS
Revision Date: 11/4/2013
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
SIGNAL & CONTROL SOLUTIONS
ACSM-2002
Schottky Diode Module Detector
Outline Drawing:
STANDARD CASE STYLE M12
(Optional Case Styles – M34, M35, M47)
Part Number Ordering Information:
•
•
•
•
Add
Add
Add
Add
desired polarity suffix: “N” for Negative, “P” for Positive (Ex: ACSM-2002N)
“Z” for zero biased schottky option (Ex: ACSM-2002NZ)
case style suffix: “M51” (Ex: ACSM-2002NZM51)
“-RC” suffix: RoHS-compliant (Ex: ACSM-2002NZM51-RC)
Notes (Continued):
•
•
•
This part number is also available with a zero bias schottky diode.
Due to higher impedance, the zero bias schottky will exhibit less sensitive TSS (typically a 3 dB reduction)
The temperature performance of the zero bias schottky is poor when operating at low input power levels.
