BC817-40

Description
500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR
CategoryDiscrete semiconductor    The transistor
File Size869KB，12 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BC817-40 Online Shopping

Suppliers Part Number Price MOQ In stock
BC817-40 - - View Buy Now

BC817-40 Overview

500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR

BC817-40 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerInfineon
Parts packaging codeSOT-23
package instructionSMALL OUTLINE, R-PDSO-G3
Contacts3
Reach Compliance Codecompli
ECCN codeEAR99
Maximum collector current (IC)0.5 A
Collector-emitter maximum voltage45 V
ConfigurationSINGLE
Minimum DC current gain (hFE)170
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Maximum power dissipation(Abs)0.33 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)170 MHz
Base Number Matches1

Preview

Download Datasheet

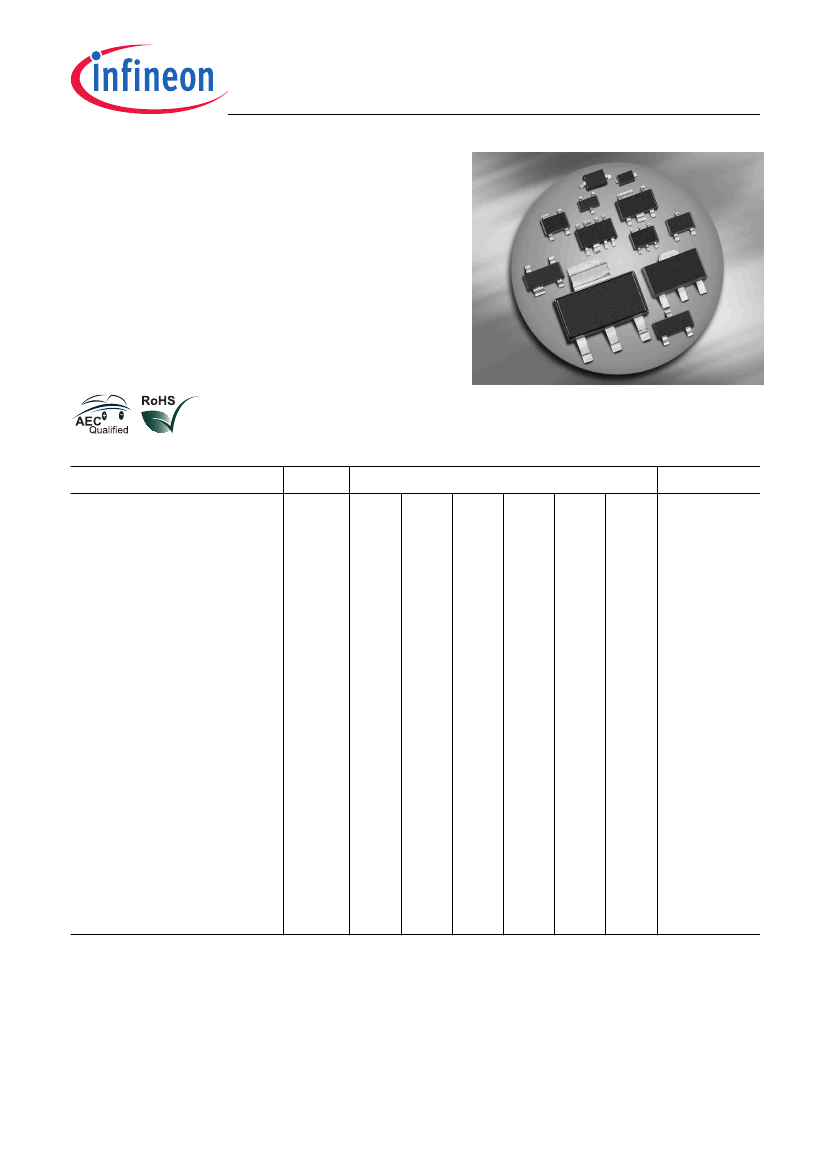

BC817.../BC818...
NPN Silicon AF Transistor
•
For general AF applications
•
High collector current
•
High current gain
•
Low collector-emitter saturation voltage
•
Complementary types:
BC807.../W, BC808.../W (PNP)
•
Pb-free (RoHS compliant) package
1)
•
Qualified according AEC Q101
Type
BC817-16
BC817K-16*
BC817-25
BC817K-25*
BC817-25W
BC817K-25W*
BC817-40
BC817K-40*
BC817-40W
BC817K-40W*
BC818-16W
BC818K-16W*
BC818-25
BC818K-25*
BC818-40
BC818K-40*
* Shrinked chip version
1
Pb-containing
Marking
6As
6As
6Bs
6Bs
6Bs
6Bs
6Cs
6Cs
6Cs
6Cs
6Es
6Es
6Fs
6Fs
6Gs
6Gs
Pin Configuration
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Package
SOT23
SOT23
SOT23
SOT23
SOT323
SOT323
SOT23
SOT23
SOT323
SOT323
SOT323
SOT323
SOT23
SOT23
SOT23
SOT23
package may be available upon special request
1
2008-04-11

BC817-40 Related Products

BC817-40 BC817-25 BC817K-16 BC817K-25W BC817K-25 BC817-16 BC817-40W BC817-25W
Description 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
Maker Infineon Infineon Infineon Infineon Infineon Infineon Infineon Infineon
package instruction SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3
Contacts 3 3 3 3 3 3 3 3
Reach Compliance Code compli compli compli compli compli compli compli compli
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum collector current (IC) 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A
Collector-emitter maximum voltage 45 V 45 V 45 V 45 V 45 V 45 V 45 V 45 V
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 170 100 100 160 160 60 170 100
JESD-30 code R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3
Humidity sensitivity level 1 1 1 1 1 1 1 1
Number of components 1 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 260
Polarity/channel type NPN NPN NPN NPN NPN NPN NPN NPN
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount YES YES YES YES YES YES YES YES
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 20
transistor applications AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER
Transistor component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Nominal transition frequency (fT) 170 MHz 170 MHz 170 MHz 170 MHz 170 MHz 170 MHz 170 MHz 170 MHz
Parts packaging code SOT-23 SOT-23 - - - SOT-23 SC-70 SC-70
JESD-609 code e3 e3 - - - e3 e3 e3
Maximum power dissipation(Abs) 0.33 W 0.33 W 0.5 W 0.25 W 0.5 W 0.33 W - -
Terminal surface Matte Tin (Sn) MATTE TIN - - - MATTE TIN MATTE TIN MATTE TIN
