BAT54-02V

Description
0.2 A, 30 V, SILICON, SIGNAL DIODE
CategoryDiscrete semiconductor    diode
File Size961KB,15 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric View All

BAT54-02V Overview

0.2 A, 30 V, SILICON, SIGNAL DIODE

BAT54-02V Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerInfineon
Parts packaging codeSC-79
package instructionR-PDSO-F2
Contacts2
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.24 V
JESD-30 codeR-PDSO-F2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current0.6 A
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current0.2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.23 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage30 V
Maximum reverse recovery time0.005 µs
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

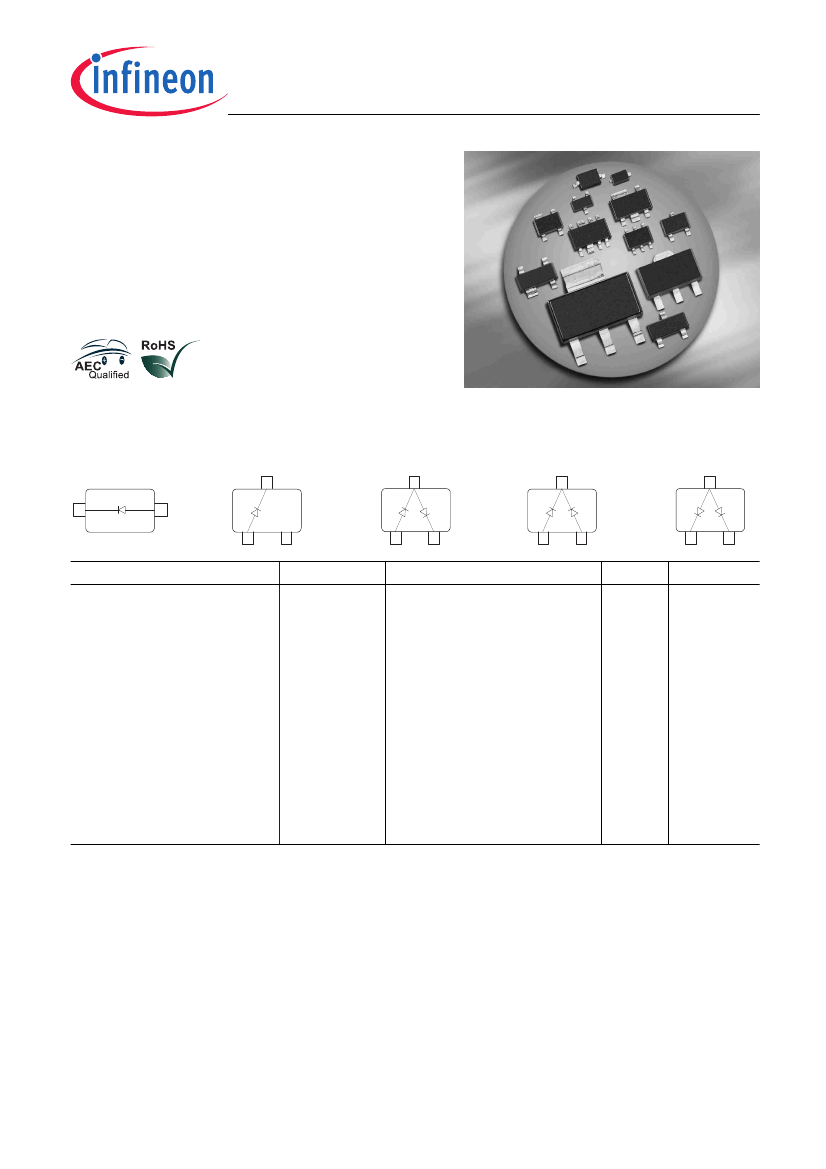

BAT54...
Silicon Schottky Diodes
For low-loss, fast-recovery, meter protection,
bias isolation and clamping application
Guard ring protected
Low forward voltage
Pb-free (RoHS compliant) package
Qualified according AEC Q101
1)
BAT54-02LRH
BAT54-02V
BAT54-03W
BAT54
BAT54W
!
BAT54-04
BAT54-04W
!
BAT54-05
BAT54-05W
!
BAT54-06
BAT54-06W
!

,
,
,
,
,
,




Type
BAT54
BAT54-02LRH*
BAT54-02V
BAT54-03W
BAT54-04
BAT54-04W
BAT54-05
BAT54-05W
BAT54-06
BAT54-06W
BAT54W
1
*BAT54-02LRH
Package
SOT23
TSLP-2-7
SC79
SOD323
SOT23
SOT323
SOT23
SOT323
SOT23
SOT323
SOT323
Configuration
single
single
single
single
series
series
common cathode
common cathode
common anode
common anode
single
L
S
(nH)
1.8
0.4
0.6
1.8
1.8
1.4
1.8
1.4
1.8
1.4
1.4
Marking
T
54
b
blue 5
TS
TS
TC
TC
TA
TA
T5
is not qualified according AEC Q101
1
2011-06-29
