D2S4M4001P12.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D2S4M4001P12.5

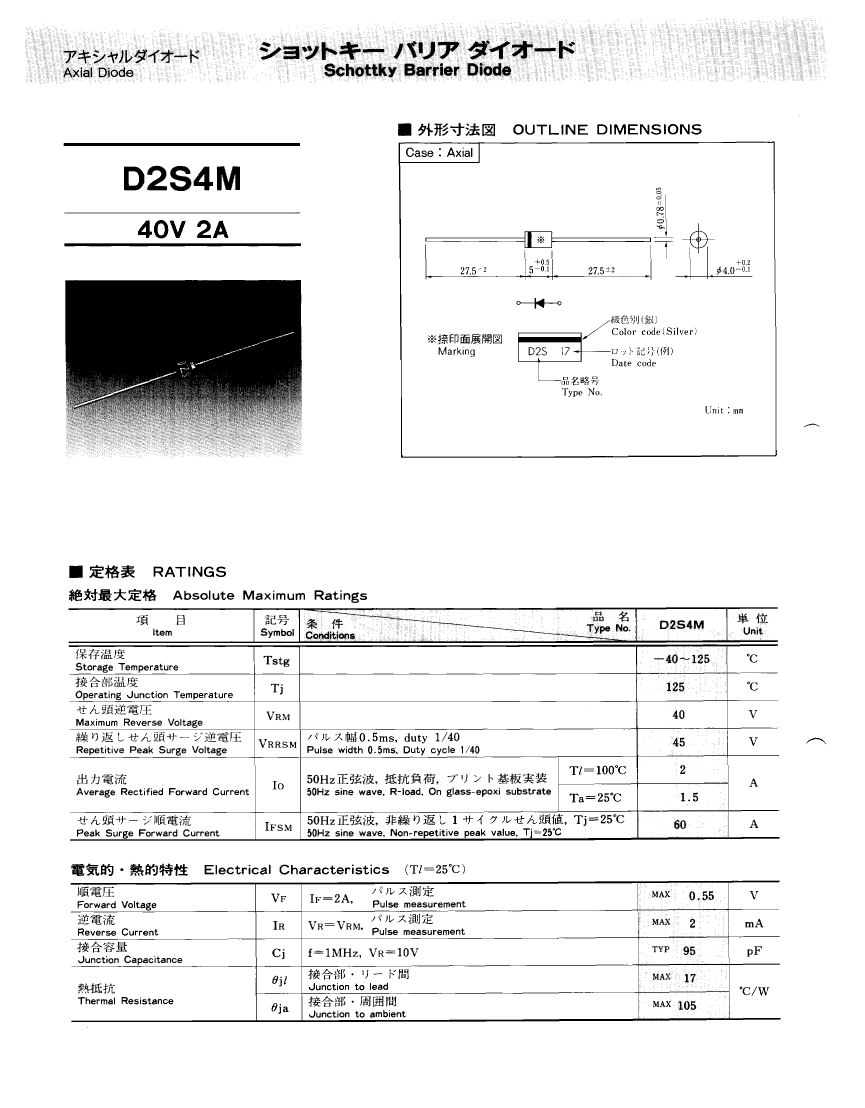

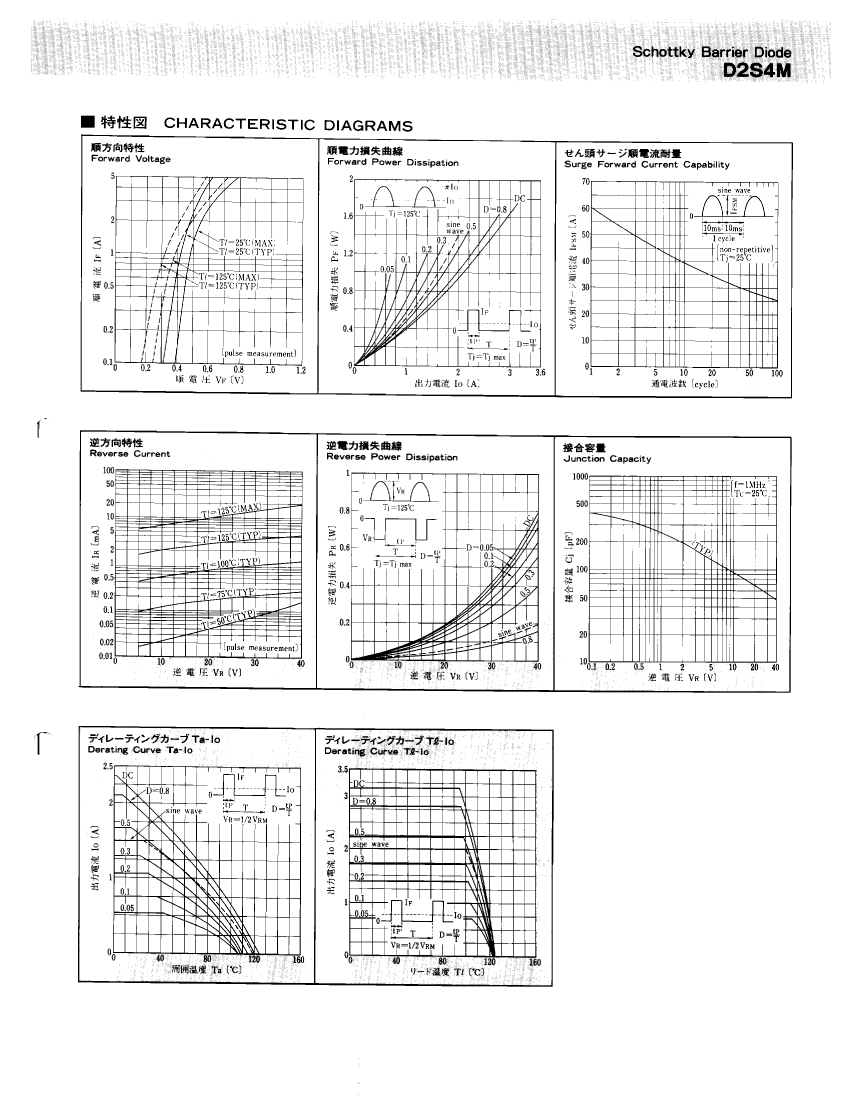

D2S4M4001P12.5: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,; CategoryDiscrete semiconductor diode; File Size229KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D2S4M4001P12.5 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,

D2S4M4001P12.5 Parametric

Parameter Name	Attribute value
package instruction	O-XALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JESD-30 code	O-XALF-W2
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	1.5 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum reverse current	2000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

D2S4M4001P12.5 Related Products

	D2S4M4001P12.5	D2S4M4003P12.5	D2S4M4003P10	D2S4M4001P15	D2S4M4004P15	D2S4M4003P15	D2S4M4004P12.5	D2S4M4061	D2S4M4002P5	D2S4M4001P10
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.5A, Silicon,
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V	0.55 V	0.55 V	0.55 V	0.55 V	0.55 V	0.55 V	0.55 V	0.55 V	0.55 V
JESD-30 code	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2
Maximum non-repetitive peak forward current	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	1	1	1	1	1	1
