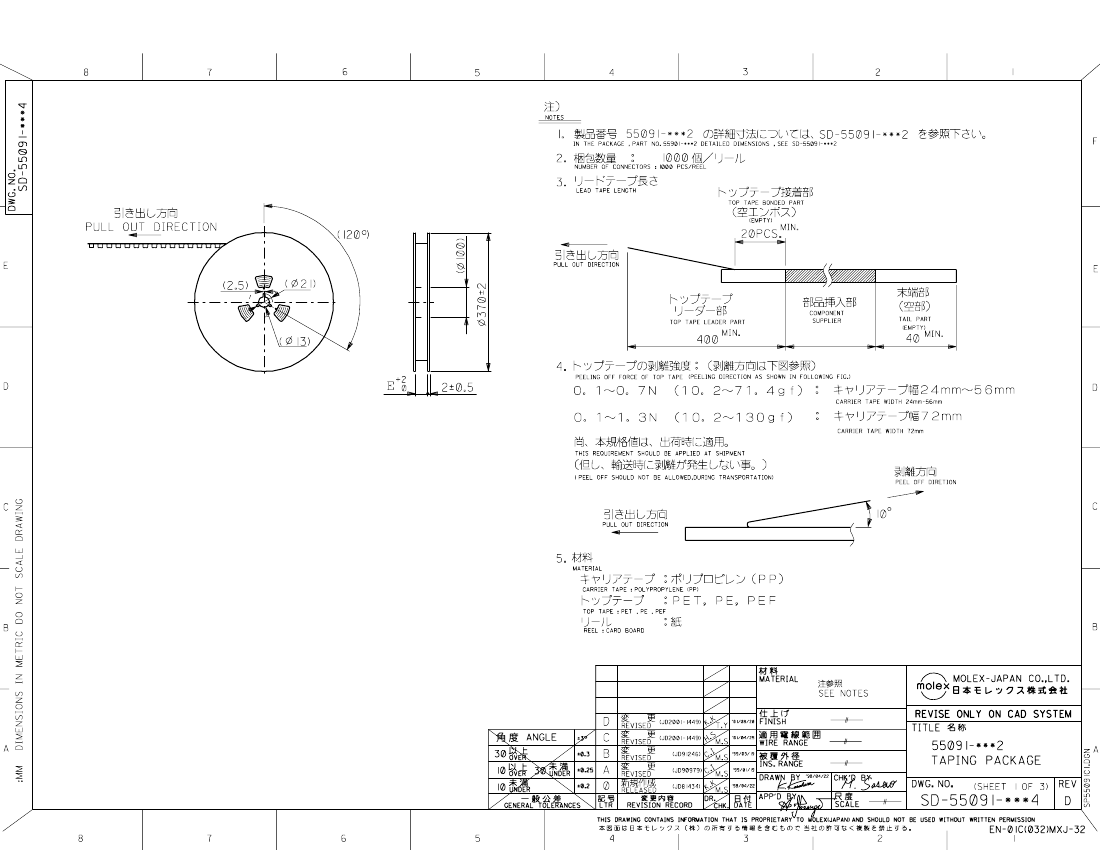

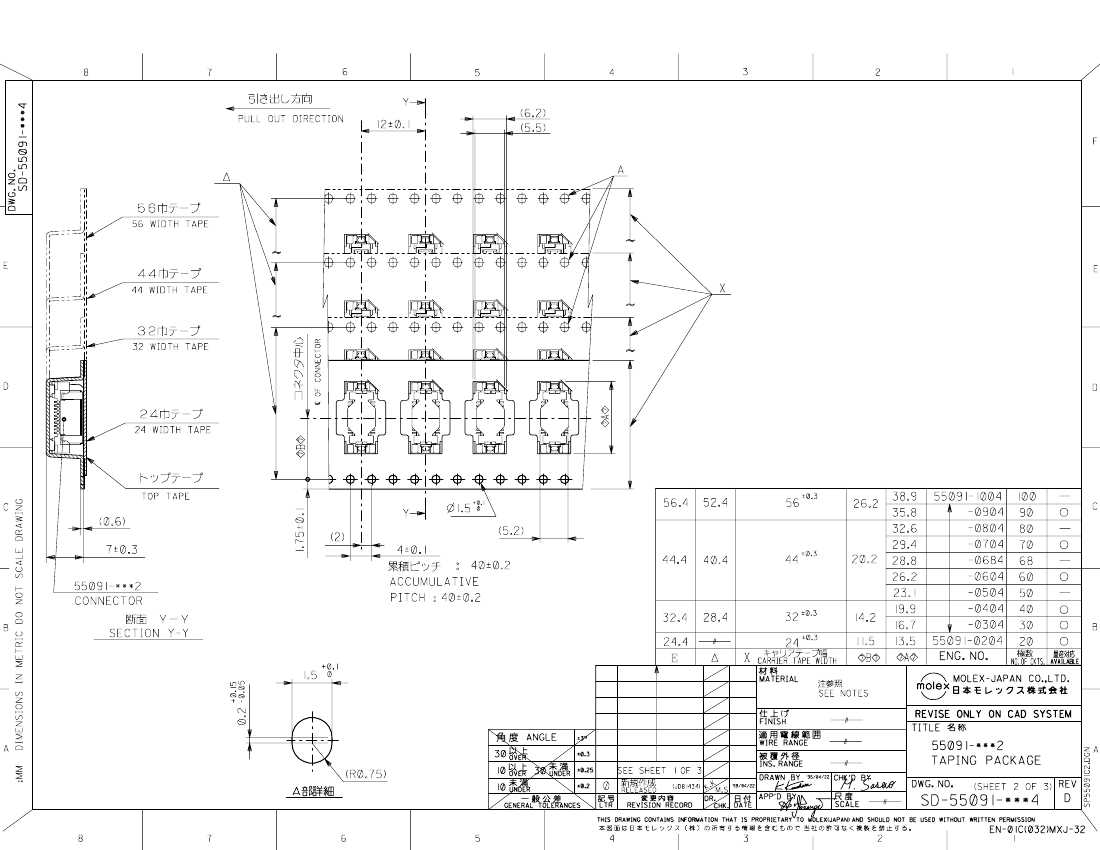

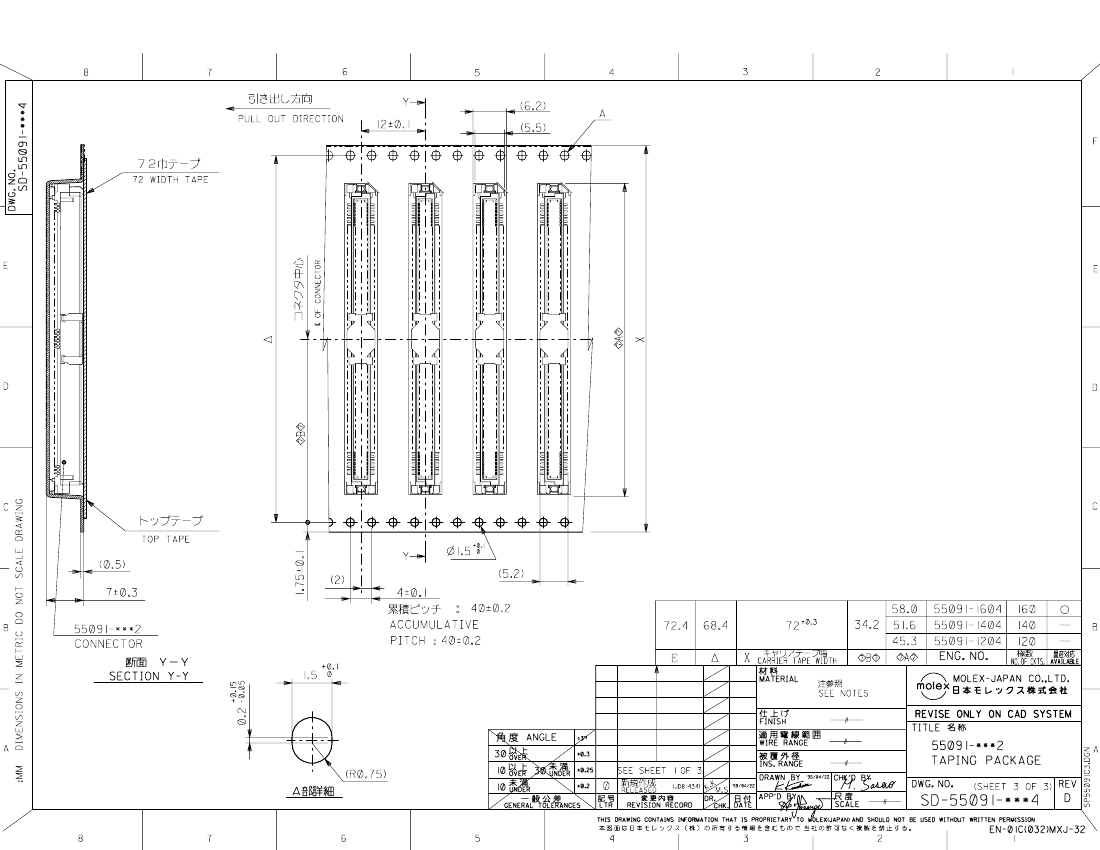

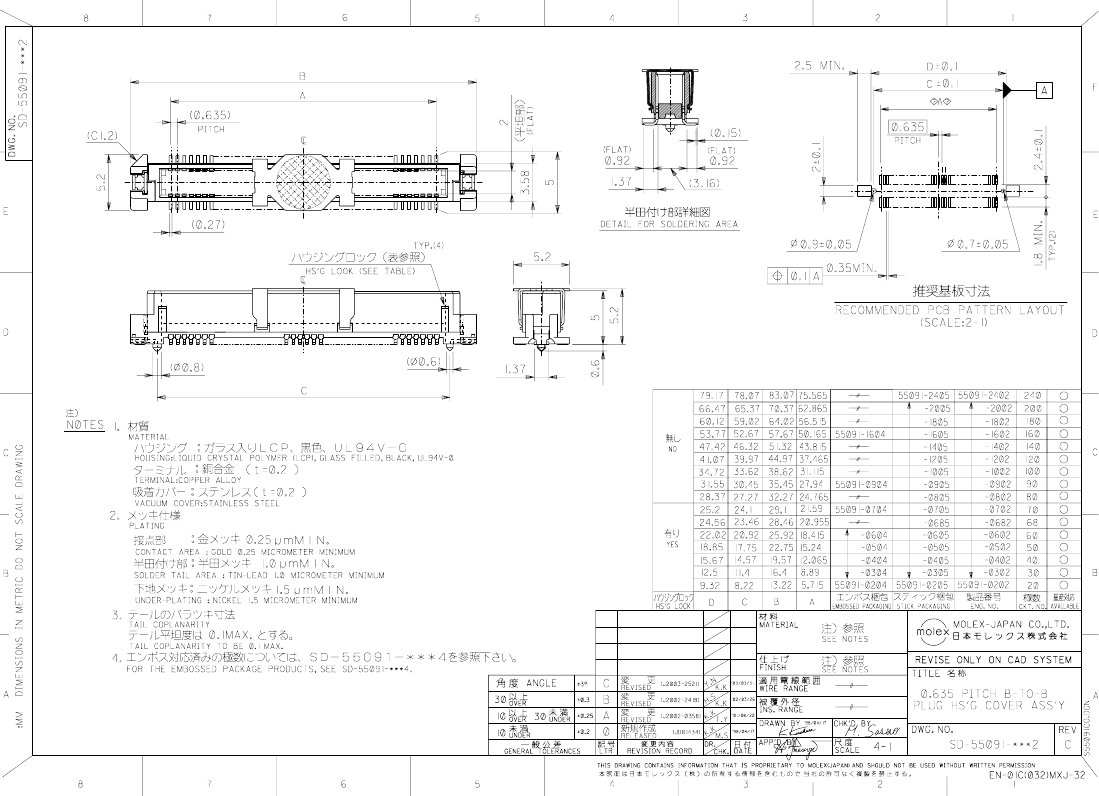

Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | SLIMSTACK, SHROUDED, POLARIZED |
| Board mount options | PEG |
| body width | 0.205 inch |
| subject depth | 0.205 inch |
| body length | 0.77 inch |
| Body/casing type | PLUG |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 60 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 250VAC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .695 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 55091 |
| Plug contact pitch | 0.025 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | FRICTION LOCK |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 4.191 mm |
| Plating thickness | 10u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.635 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 40 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .1112 N |
