48ASSP2S4M7RAT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 48ASSP2S4M7RAT

Preview

48ASSP2S4M7RAT: DescriptionSlide Switch, SPDT, Latched And Momentary, 0.02A, 20VDC, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size154KB，3 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

48ASSP2S4M7RAT Overview

Slide Switch, SPDT, Latched And Momentary, 0.02A, 20VDC, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT

48ASSP2S4M7RAT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body width	6.6 mm
body height	12.7 mm
Body length or diameter	10.16 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	SPDT
Switch type	SLIDE SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

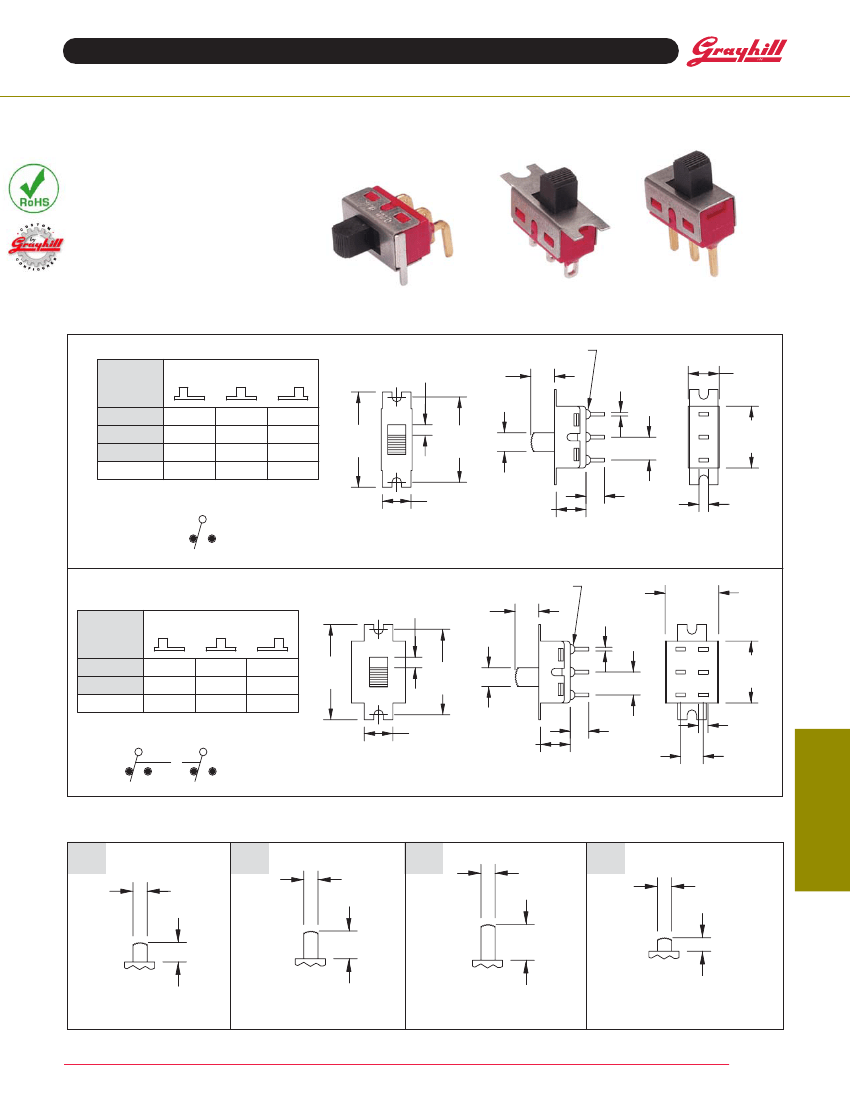

Series 48A: Slide Switches

SERIES 48A

Slide Switches

FEATURES

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuations and

Terminations

DIP Switches

MODELS

SPDT

In inches (and millimeters)

TRAVEL

.085

(2.16)

EPOXY SEAL

.200

(5.08)

.030

(0.76)

.185

(4.70)

.260

(6.60)

3

2

1

MODEL

NO.

SSP1

SSP2

SSP3

TERM. COMM.

SWITCH POSITION

ON

2-1

02COMM.

NONE

OFF

OPEN

ON

(ON)

ON

2-3

.770

(19.56)

.690

(17.53)

.152

(3.86)

.500

(12.70)

()=MOMENTARY

.240

(6.10)

.250

(6.35)

.155

(3.94)

.080

(2.03)

SCHEMATIC

DPDT

1

3

TRAVEL

.085

(2.16)

EPOXY SEAL

.200

(5.08)

.030

(0.76)

.185

(4.70)

.450

(11.43)

MODEL

NO.

SDP1

SDP3

TERM. COMM.

SWITCH POSITION

6

5

4

3

2

1

ON

2-1,5-4

ON

NONE

ON

OFF

OPEN 2-3,5-6

()=MOMENTARY

05COMM.

.770

(19.56)

.690

(17.53)

.152

(3.86)

.250

(6.35)

.500

(12.70)

02COMM.

.240

(6.10)

.155

(3.94)

.080

(2.03)

.190

(4.83)

1

3 4

6

SCHEMATIC

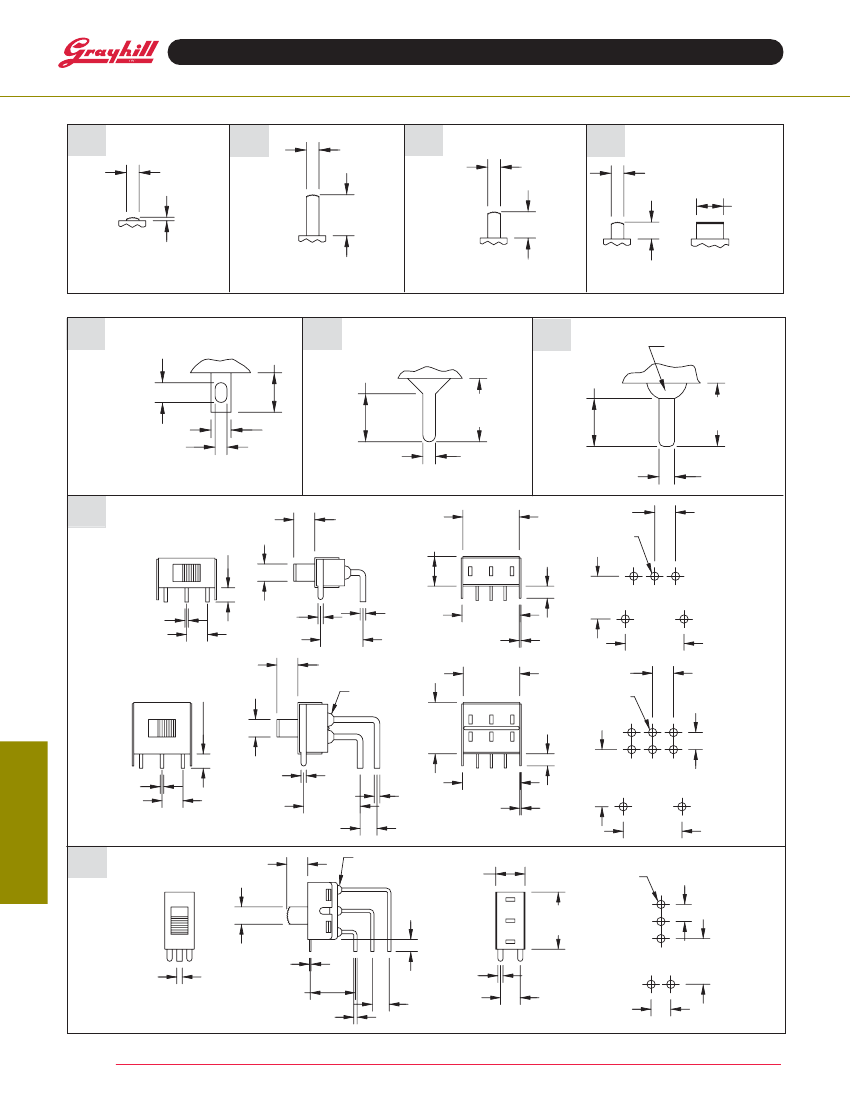

Slide Switches

ACTUATOR OPTIONS

S1

Std

In inches (and millimeters)

S2

S3

S4

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.200

(5.08)

.285

(7.24)

.370

(9.40)

.140

(3.56)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

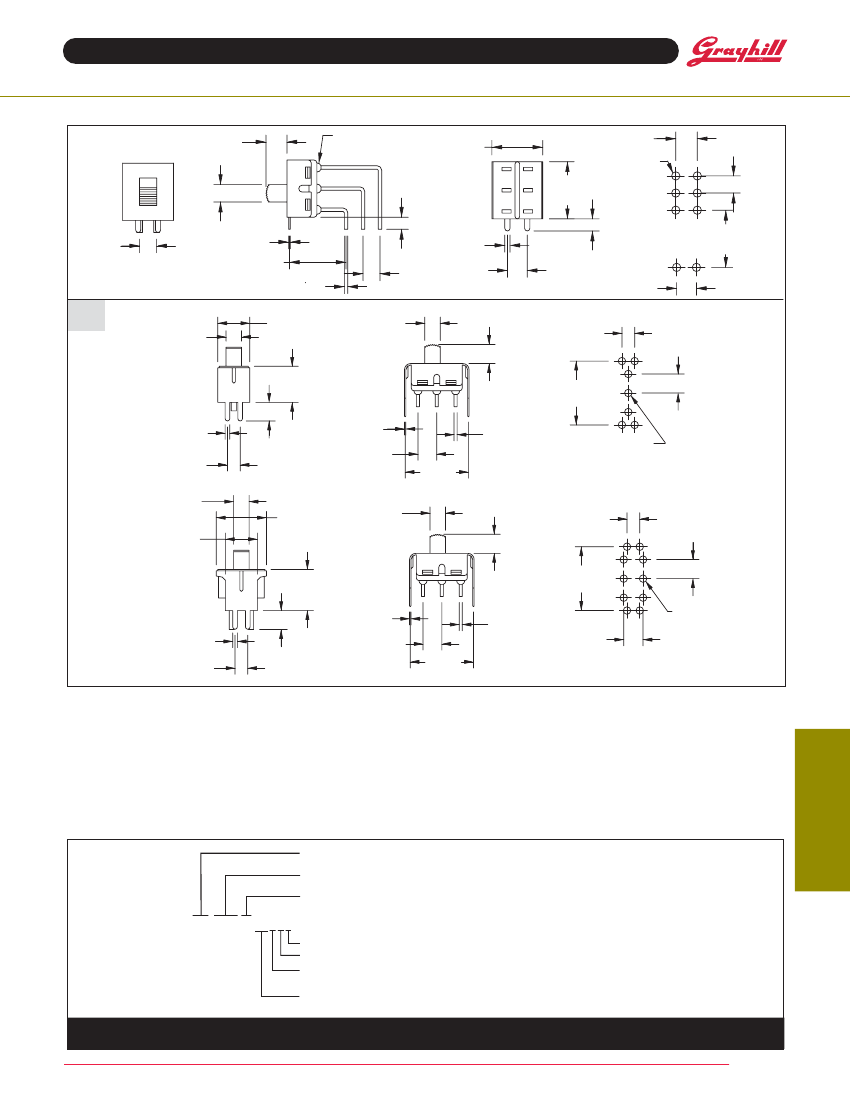

Slide

4
