S54LS37F883B datasheet, PDF - EEWORLD Datasheet

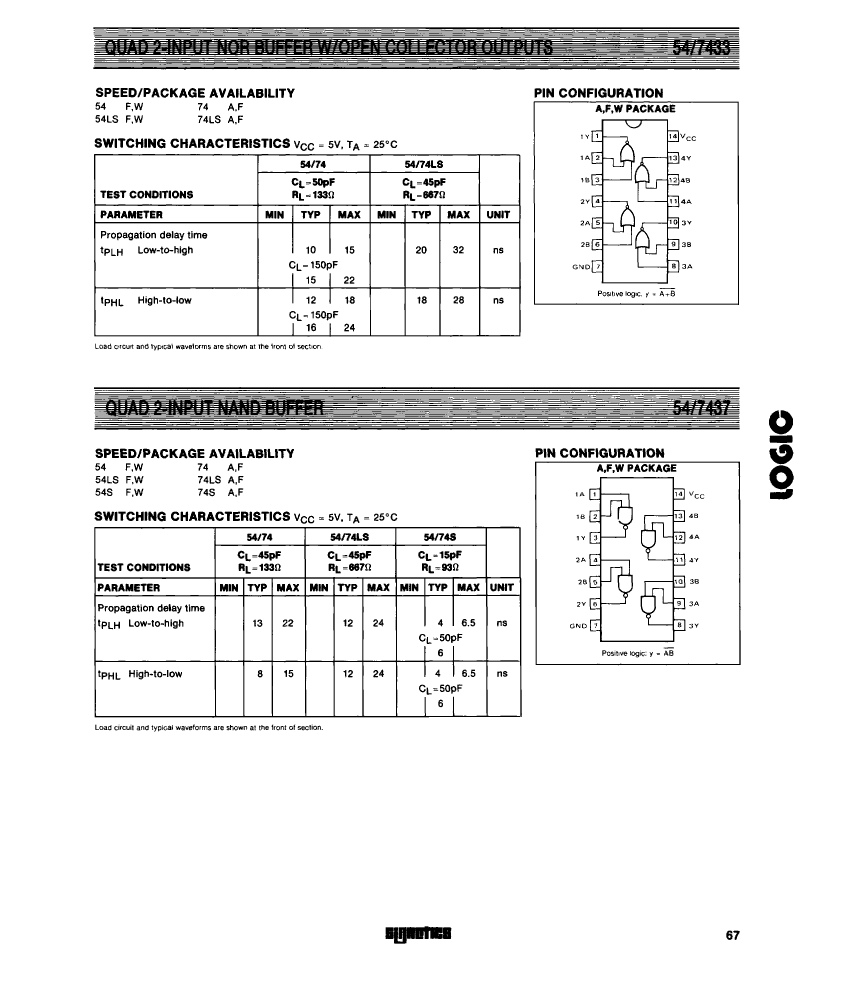

S54LS37F883B: DescriptionNAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, DIP-14; Categorylogic logic; File Size31KB，1 Pages; ManufacturerSignetics

Download Datasheet Parametric View All

S54LS37F883B Overview

NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, DIP-14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP-14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.012 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	12 mA
Prop。Delay @ Nom-Sup	24 ns
propagation delay (tpd)	24 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	MIL-STD-883 Class B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
