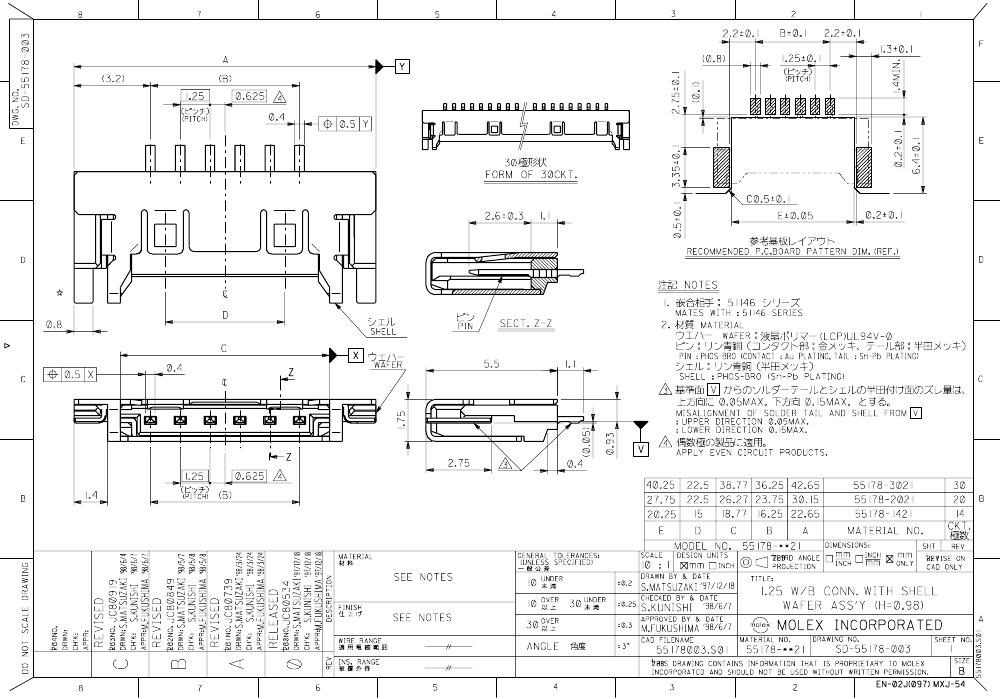

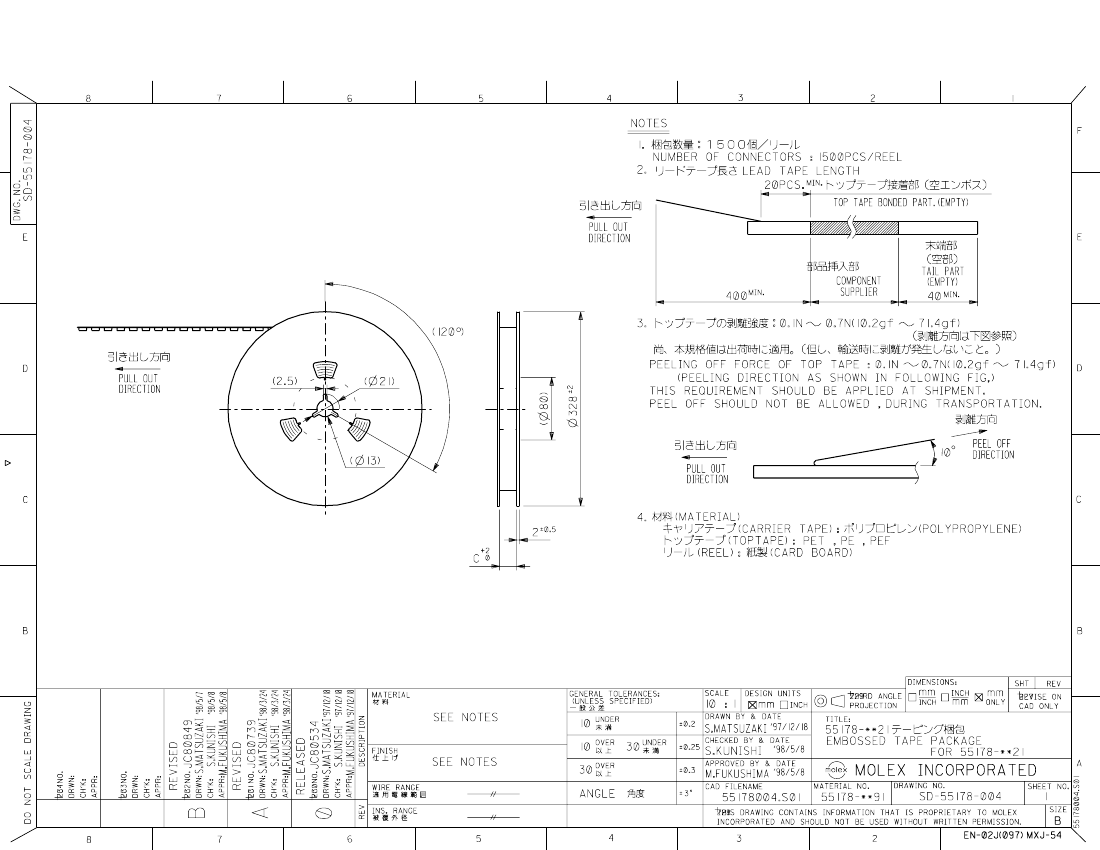

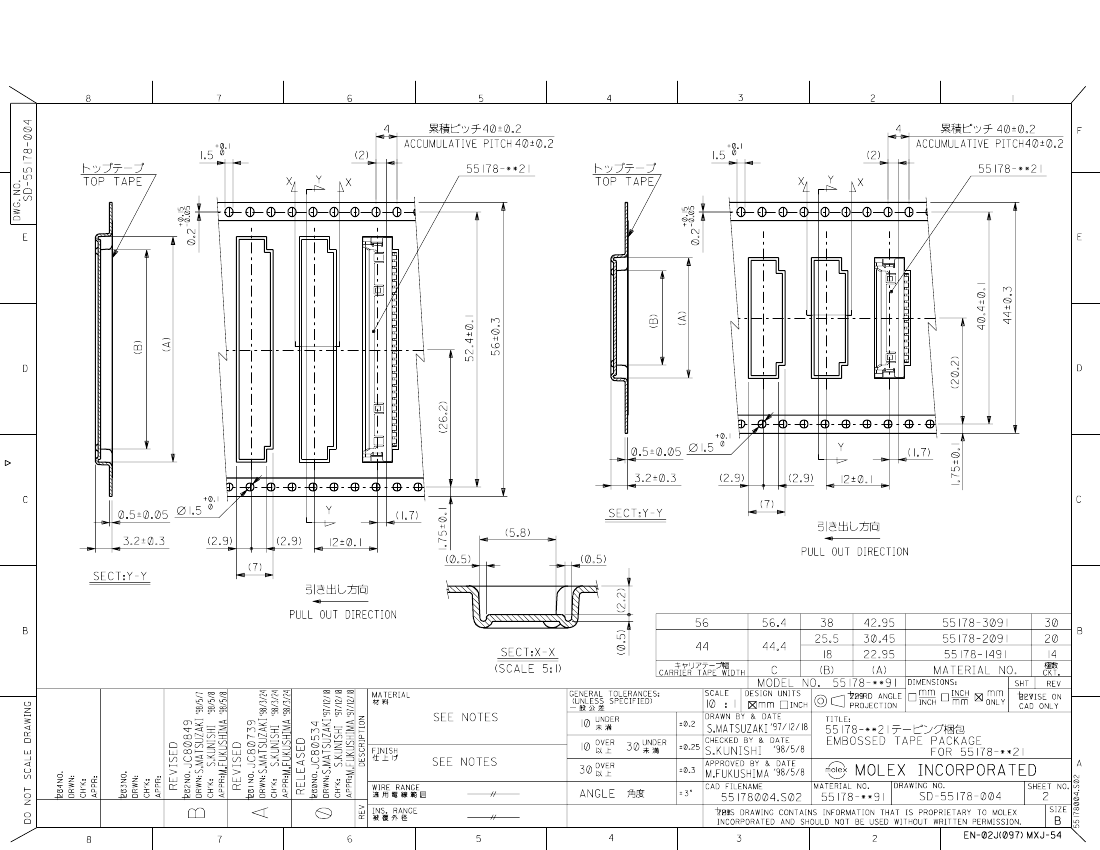

Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Other features | PANELMATE, EMI SHIELDED, LOW PROFILE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 55178 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of rows loaded | 1 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 1.25 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 14 |
| UL Flammability Code | 94V-0 |
| 55178-1491 | 55178-1421 | 55178-2021 | 55178-3021 | 55178-2091 | |
|---|---|---|---|---|---|
| Description | Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal | Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, | Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, | Board Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, | Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | PANELMATE, EMI SHIELDED, LOW PROFILE | PANELMATE, BLADE CONTACTS, EMI SHIELDED, LOW PROFILE | PANELMATE, BLADE CONTACTS, EMI SHIELDED, LOW PROFILE | PANELMATE, BLADE CONTACTS, EMI SHIELDED, LOW PROFILE | PANELMATE, EMI SHIELDED, LOW PROFILE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 55178 | 55178 | 55178 | 55178 | 55178 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 14 | 14 | 20 | 30 | 20 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | - | 1 | 1 | 1 | - |
