SMBJ78CT3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMBJ78CT3

SMBJ78CT3: DescriptionTrans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, DO-214AA; CategoryDiscrete semiconductor diode; File Size42KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

SMBJ78CT3 Overview

Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, DO-214AA

SMBJ78CT3 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
package instruction	R-PDSO-C2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	109.8 V
Minimum breakdown voltage	86.7 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	BIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

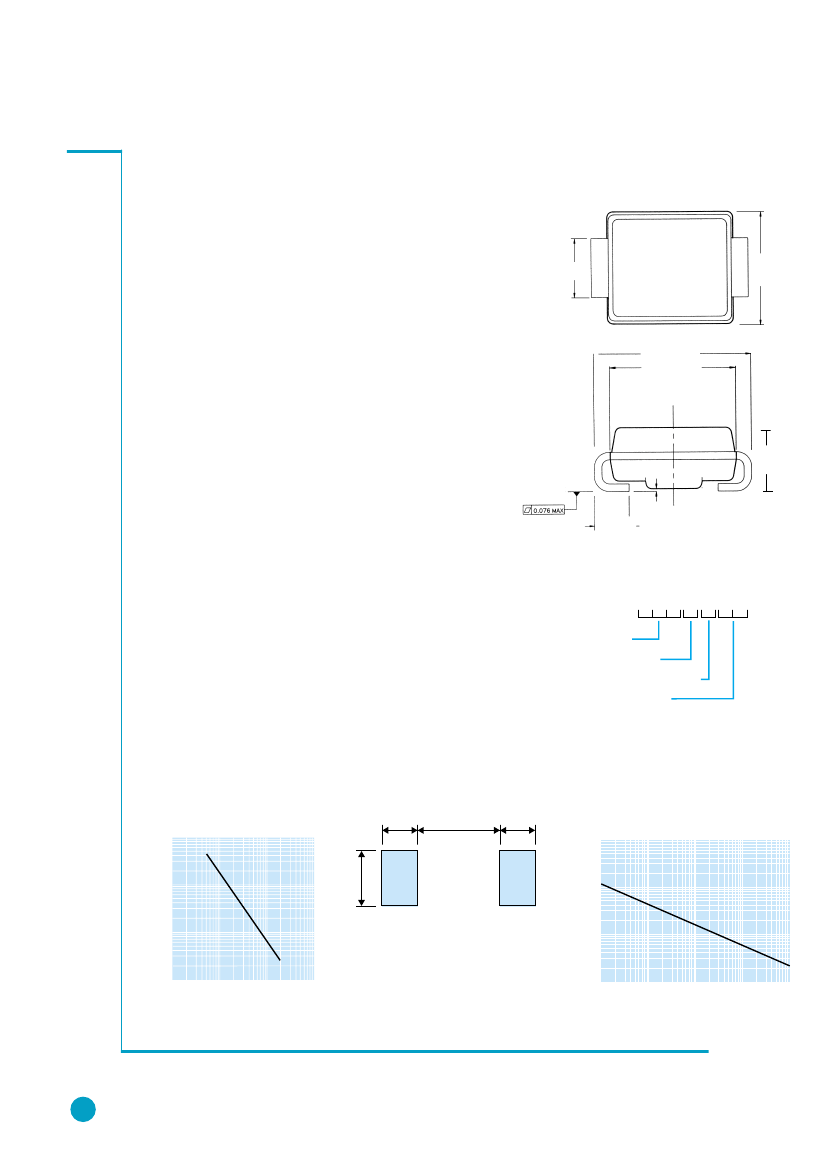

SMBJ5.0 - SMBJ188CA series

SMBJ5.0 - SMBJ188CA

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS

Protect sensitive electronics against voltage transients induced by electro-static

discharge (ESD), inductive load switching, and lightning. Ideal for the

protection of I/O interfaces, Vcc bus and other integrated circuits.

FEATURES

•

Stand-off Voltage Range 5.0 to 188 Volts

•

Uni-directional and Bi-directional

•

Glass Passivated Junction

•

Jedec package designed to meet SM assembly needs

•

Low lead inductance

•

Each device 100% surge tested

•

UL Recognized

MAXIMUM RATINGS

•

Peak Pulse Power (Ppk) 600 Watts (10 X 1000µs)

(see diagram on page 6 for wave form)

•

1.5 Watt Steady State

•

Response time: 1 X 10-12 secs (theoretical)

•

Forward surge rating: 100A, 8.3 ms single half sine-wave

(Uni-directional only)

•

Operating & storage Temp.: -55°C to +150°C

MECHANICAL DATA

•

CASE: D0214AA moulded plastic over glass

pasivated junction UL94V(O) (Thermoset) Epoxy.

•

Terminals: Solder plated solderable per MIL-STD-750

Method 2026

•

Solderable leads: 230°C for 10 seconds.

•

Marking: cathode band(positive terminal, uni-directional

devices only), device code, logo

•

Weight: 0.093 gram (approx.)

Seating

Plane

0.76/

1.27

0.102

0.203

5.21/5.59

4.06/4.57

2.0

3.30 -

3.94

2.18/

2.44

ORDERING INFORMATION

SMBJ

Voltage

Bi Directional

5% Voltage Tolerance

Packing Option

T1 = Taped (500 pcs)

T3 = Taped (3000 pcs)

C A

Figure 1 - Capacitance

10000

Figure 2 - Pad Size

2.16

2.74

2.16

Figure 3 - Peak Pulse Power vs. Pulse Time

100kw

1000

Pico-

farads

100

2.26

@ Stand-off Voltage

20kw

5kw

2kw

500w

SMB

Solder Pads

(all dimensions in mm)

100

1000

Device Stand-off Voltage - Volts

100w

1µs

µs

100

µs

Pulse Time (tp)

1ms

10 ms

All products are sold to the commercial specifications shown for any additional reliability testing or extended parameters, please consult the factory.

contact semitron on: telephone:

+44 (0)1793 724000

fax:

+44 (0)1793 720401
