HVR152S2MOHMF: DescriptionFixed Resistor, Metal Glaze/thick Film, 17W, 2000000ohm, 30000V, 1% +/-Tol, -100,100ppm/Cel; CategoryPassive components The resistor; File Size156KB，2 Pages; ManufacturerNikkohm Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

HVR152S2MOHMF Overview

Fixed Resistor, Metal Glaze/thick Film, 17W, 2000000ohm, 30000V, 1% +/-Tol, -100,100ppm/Cel

HVR152S2MOHMF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Silicon C
Lead diameter	1 mm
Lead length	38.1 mm
Manufacturer's serial number	HVR
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package diameter	9 mm
Package length	152 mm
Package form	Axial
Rated power dissipation(P)	17 W
resistance	2000000 Ω
Resistor type	FIXED RESISTOR
series	HVR
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	-100,100 ppm/°C
Tolerance	1%
Operating Voltage	30000 V
Base Number Matches	1

Preview

Download Datasheet

View All

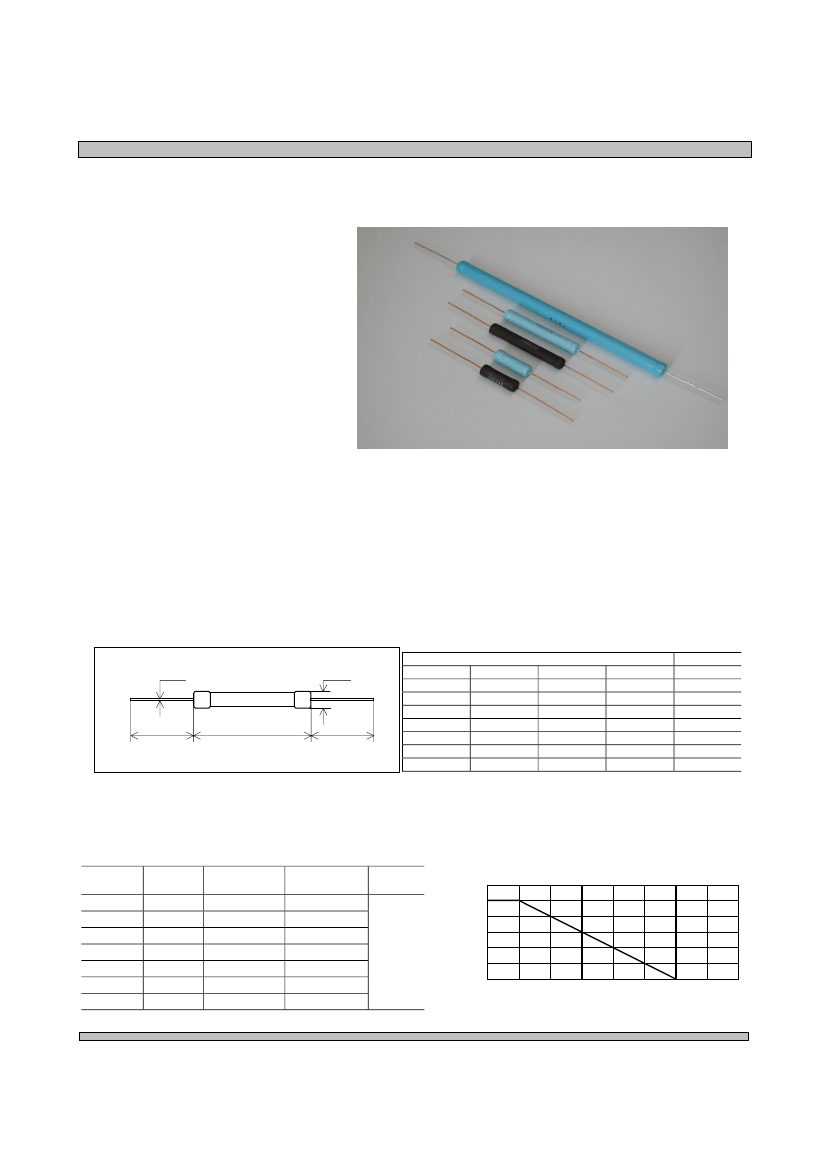

POWER SOLUTION - NIKKOHM

Precision High Voltage Non-Inductive Resistors

HVR

Features and Applications

Designed to high voltage applications as 4kV to 30KV.

Wide range of resistance to more than 10Gohm at 1%-10% are available.

Non-inductive structure and excellent long-term stability are realized with thick film technologies

and epoxy or silicone coating.

High voltage power supplies on industrial apparatus, such as physical &chemical measurement

equipment, X ray equipment, and an electron microscope. laser equipments, and miscellaneous

scientific equipment.

Dimensional Specifications

D

C

A+/-1.5

24

39

43

52

76

102

152

Dimension (mm)

B+/-3.18

HVR24

38.1

HVR39

38.1

HVR43

38.1

HVR52

38.1

HVR76

38.1

HVR102

38.1

HVR152

38.1

C+/-1

8

9

D+/-0.1

1

B

A

B

Performances

Type

HVR24

HVR39

HVR43

HVR52

HVR76

HVR102

HVR152

Wattage

(W)

2

3

3.5

5

7

12

17

Max

Voltage(KV)

4.0

6.5

7.5

10.0

15.0

20.0

30.0

Resistance

Range(ohm)

500-10G

Tol.(%)

+/-

1.0(F)

+/-

2.0(G)

+/-

5.0(J)

+/-

10.0(K)

Derating Curve

% Power Rating

100

80

60

40

20

0

25

50 75 100 125 150

Ambient Temperature (C)

175

200
