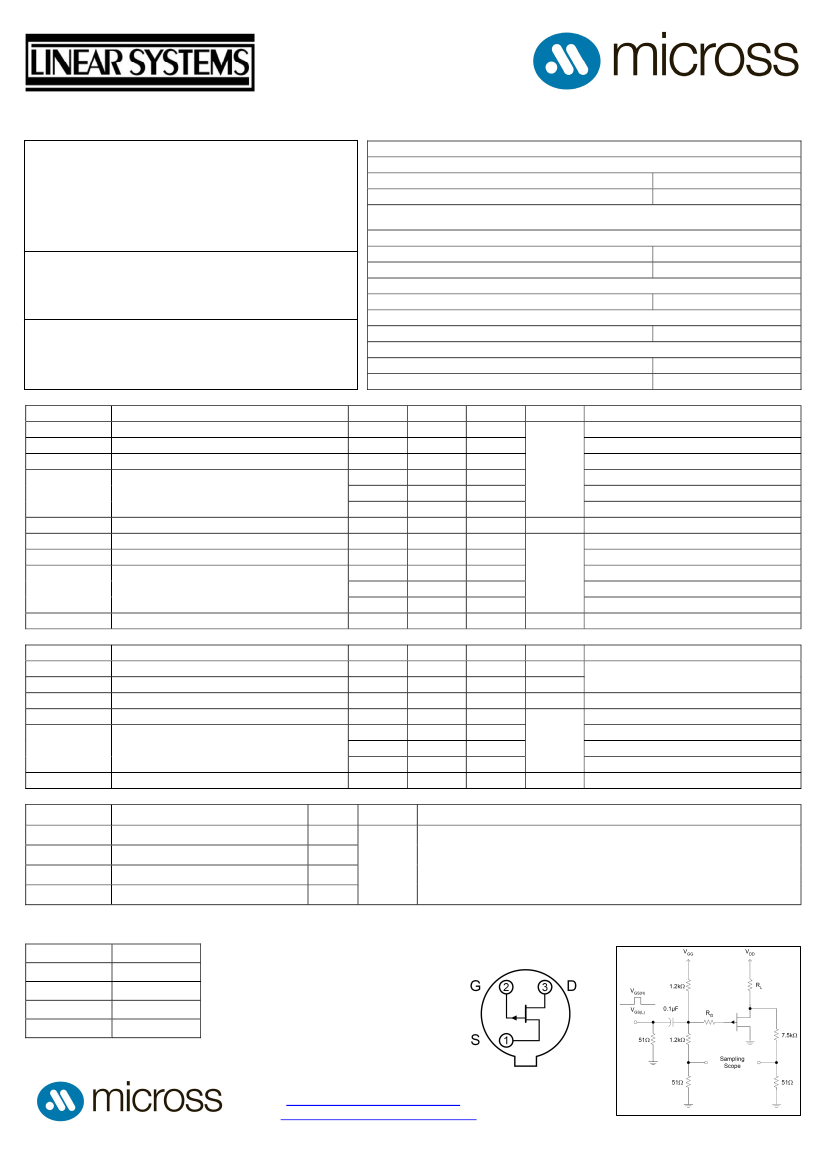

LS5114

P-CHANNEL JFET

Linear Systems replaces discontinued Siliconix 2N5114

This analog switch is designed for inverting switching

into inverting input of an Operational Amplifier.

The hermetically sealed TO-18 package is well suited

for hi-reliability and harsh environment applications.

(See Packaging Information).

FEATURES

DIRECT REPLACEMENT FOR SILICONIX 2N5114

LOW ON RESISTANCE

r

DS(on)

≤ 75Ω

LOW CAPACITANCE

6pF

ABSOLUTE MAXIMUM RATINGS @ 25°C (unless otherwise noted)

Maximum Temperatures

Storage Temperature

‐55°C to +200°C

LS5114 Benefits:

Operating Junction Temperature

‐55°C to +200°C

Low On Resistance

Maximum Power Dissipation

I

D(off)

≤

500 pA

Continuous Power Dissipation

500mW

Switches directly from TTL logic

MAXIMUM CURRENT

LS5114 Applications:

Gate Current (Note 1)

I

G

= ‐50mA

Analog Switches

MAXIMUM VOLTAGES

Commutators

Gate to Drain Voltage

V

GDS

= 30V

Choppers

Gate to Source Voltage

V

GSS

= 30V

LS5114 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted)

SYMBOL

CHARACTERISTIC

MIN

TYP.

MAX

UNITS

CONDITIONS

BV

GSS

Gate to Source Breakdown Voltage

30

‐‐

I

G

= 1µA, V

DS

= 0V

V

GS(off)

Gate to Source Cutoff Voltage

4

‐‐

10

V

DS

= ‐15V, I

D

= ‐1nA

V

GS(F)

Gate to Source Forward Voltage

‐‐

‐0.7

‐1

I

G

= ‐1mA, V

DS

= 0V

‐‐

‐1.0

‐1.3

V

GS

= 0V, I

D

= ‐15mA

V

DS(on)

Drain to Source On Voltage

‐‐

‐0.7

‐‐

V

GS

= 0V, I

D

= ‐7mA

‐‐

‐0.5

‐‐

V

GS

= 0V, I

D

= ‐3mA

I

DSS

Drain to Source Saturation Current (Note 2)

‐30

‐‐

‐90

mA

V

DS

= ‐18V, V

GS

= 0V

I

GSS

Gate Reverse Current

‐‐

5

500

V

GS

= 20V, V

DS

= 0V

I

G

Gate Operating Current

‐‐

‐5

‐‐

V

DS

= ‐15V, I

D

= ‐1mA

pA

‐‐

‐10

‐500

V

DS

= ‐15V, V

GS

= 12V

I

D(off)

Drain Cutoff Current

‐‐

‐10

‐‐

V

DS

= ‐15V, V

GS

= 7V

‐‐

‐10

‐‐

V

DS

= ‐15V, V

GS

= 5V

r

DS(on)

Drain to Source On Resistance

‐‐

75

Ω

I

D

= ‐1mA, V

GS

= 0V

LS5114 DYNAMIC ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted)

SYMBOL

CHARACTERISTIC

MIN

TYP.

MAX

UNITS

CONDITIONS

g

fs

Forward Transconductance

‐‐

4.5

‐‐

mS

V

DS

= ‐15V, I

D

= 1mA , f = 1kHz

g

os

Output Conductance

‐‐

20

‐‐

µS

r

DS(on)

Drain to Source On Resistance

‐‐

75

Ω

I

D

= 0A, V

GS

= 0V, f = 1kHz

C

iss

Input Capacitance

‐‐

20

25

V

DS

= ‐15V, V

GS

= 0V, f = 1MHz

pF

‐‐

5

7

V

DS

= 0V, V

GS

= 12V, f = 1MHz

C

rss

Reverse Transfer Capacitance

‐‐

6

‐‐

V

DS

= 0V, V

GS

= 7V, f = 1MHz

‐‐

6

‐‐

V

DS

= 0V, V

GS

= 5V, f = 1MHz

e

n

Equivalent Noise Voltage

‐‐

20

‐‐

nV/√Hz

V

DG

= 10V, I

D

= 10mA , f = 1kHz

LS5114 SWITCHING CHARACTERISTICS @ 25°C (unless otherwise noted)

SYMBOL

CHARACTERISTIC

UNITS

CONDITIONS

Click To Buy

Turn On Time

Turn On Rise Time

Turn Off Time

Turn Off Fall Time

6

10

6

15

ns

V

GS

(L) = ‐11V

V

GS

(H) = 0V

See Switching Circuit

‐10V

20V

430Ω

100Ω

‐15mA

Available Packages:

LS5114 in TO-18

LS5114 in bare die.

Please contact Micross for full

package and die dimensions

Tel: +44 1603 788967

Email:

chipcomponents@micross.com

Web:

http://www.micross.com/distribution

TO-18 (Bottom View)

t

d(on)

t

r

t

d(off)

t

f

Note 1 ‐ Absolute maximum ratings are limiting values above which LS5114 serviceability may be impaired. Note 2 – Pulse test: PW≤ 300 µs, Duty Cycle ≤ 3%
