BCX53T/R datasheet, PDF - EEWORLD Datasheet

BCX53T/R: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size140KB，4 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

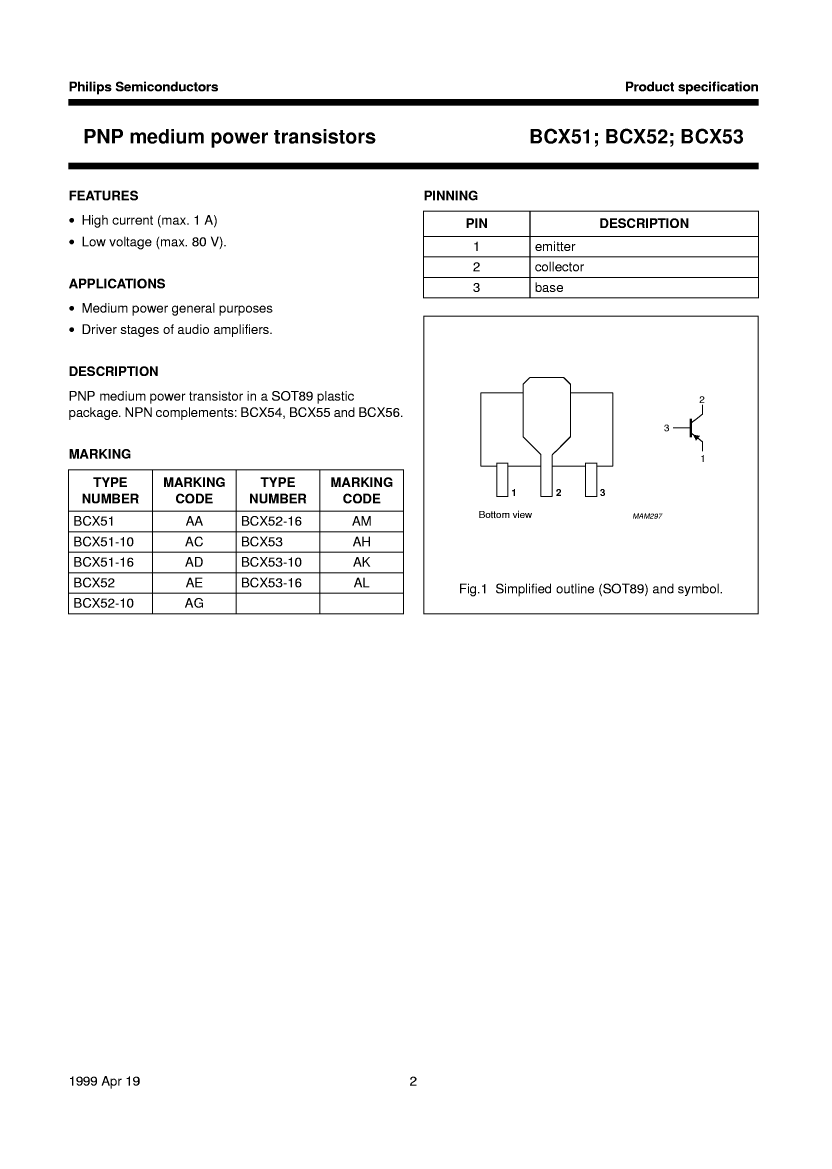

BCX53T/R Overview

Transistor

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown

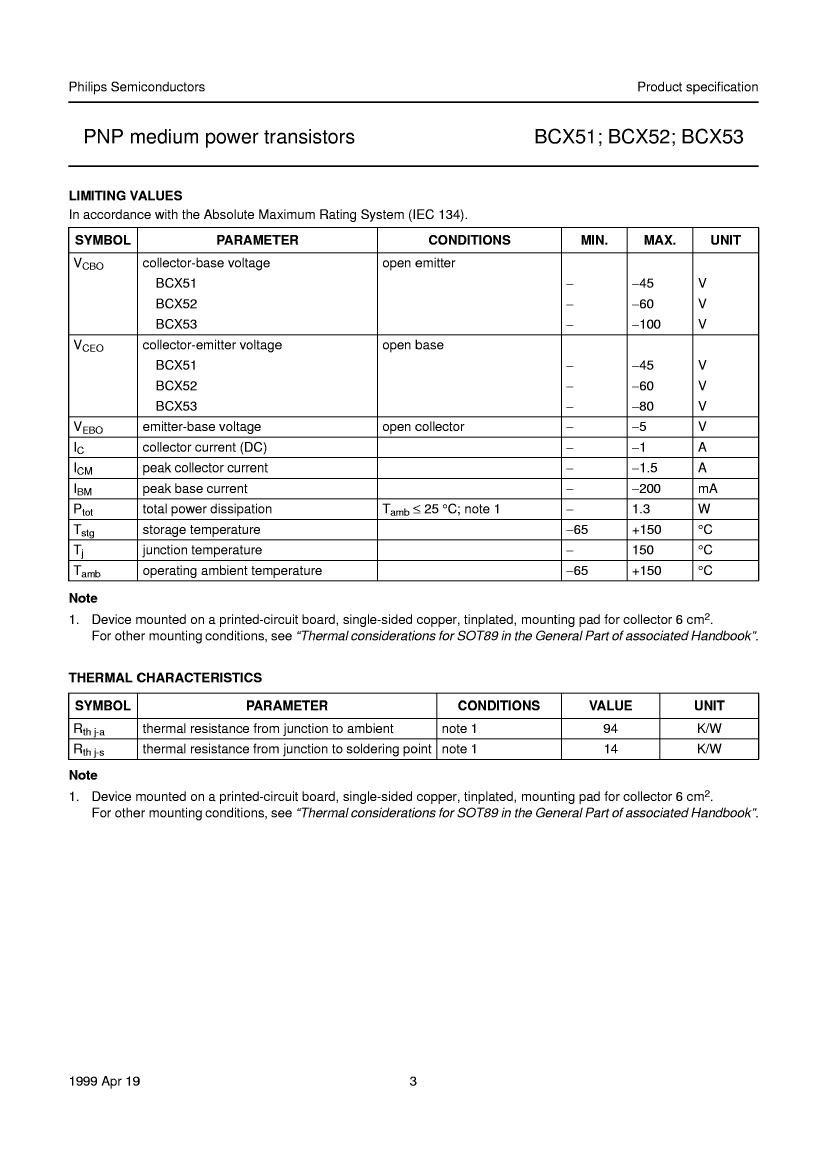

Maximum collector current (IC)	1 A
Configuration	Single

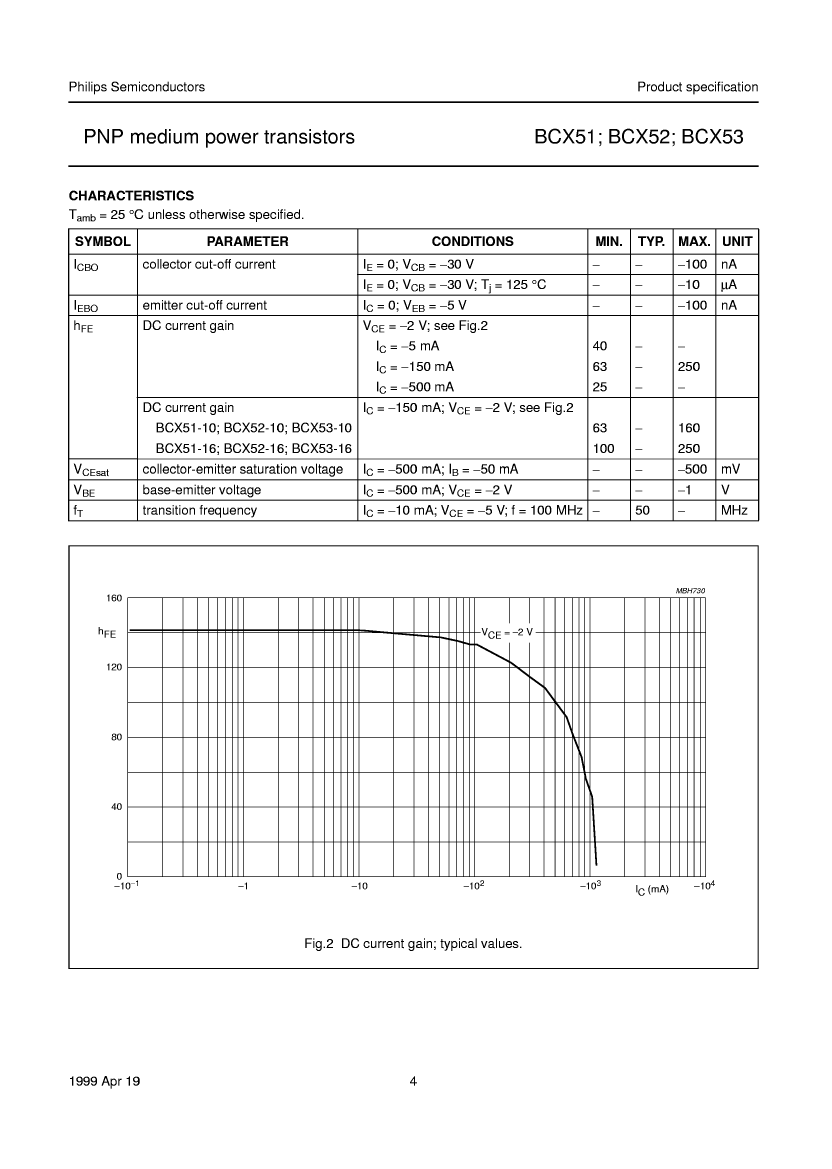

Minimum DC current gain (hFE)	40
JESD-609 code	e3
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	2 W

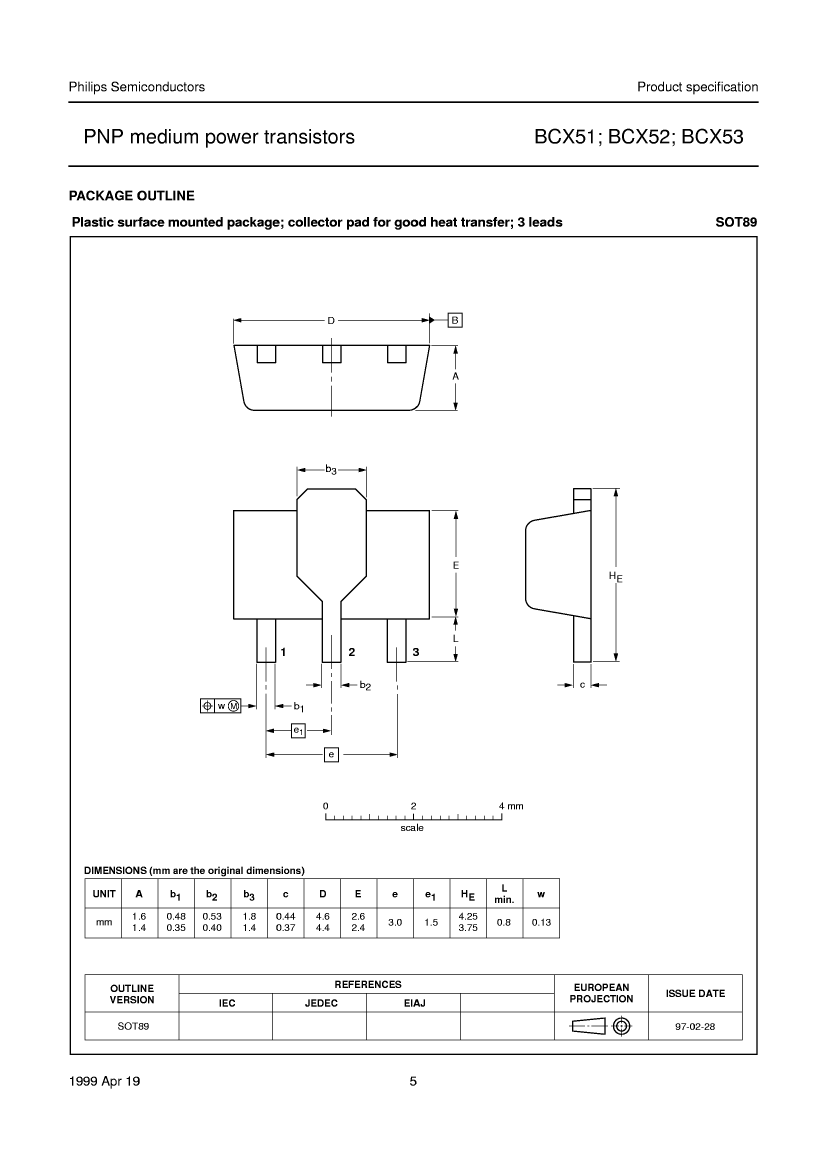

surface mount	YES
Terminal surface	Matte Tin (Sn)
Nominal transition frequency (fT)	80 MHz

	BCX53T/R	BCX52-16T/R	BCX51T/R	BCX51-16T/R	BCX51-10T/R	BCX53-10T/R	BCX53-16T/R	BCX52-10T/R
Description	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Configuration	Single	Single	Single	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	40	100	40	100	63	63	100	63
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	2 W	1 W	2 W	1 W	1 W	1 W	1 W	1 W
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
