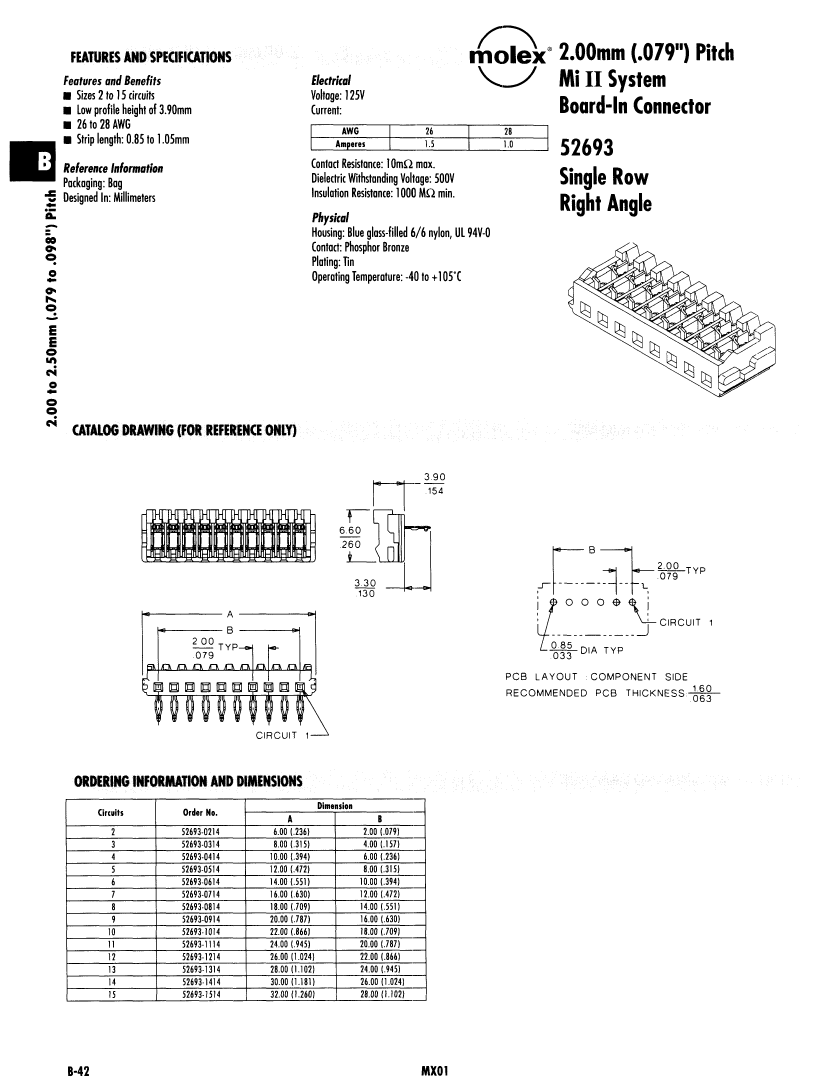

52693-1114: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52693-1114 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Blue Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.154 inch
subject depth	0.26 inch
body length	0.945 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Manufacturer's serial number	52693
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	11
UL Flammability Code	94V-0
