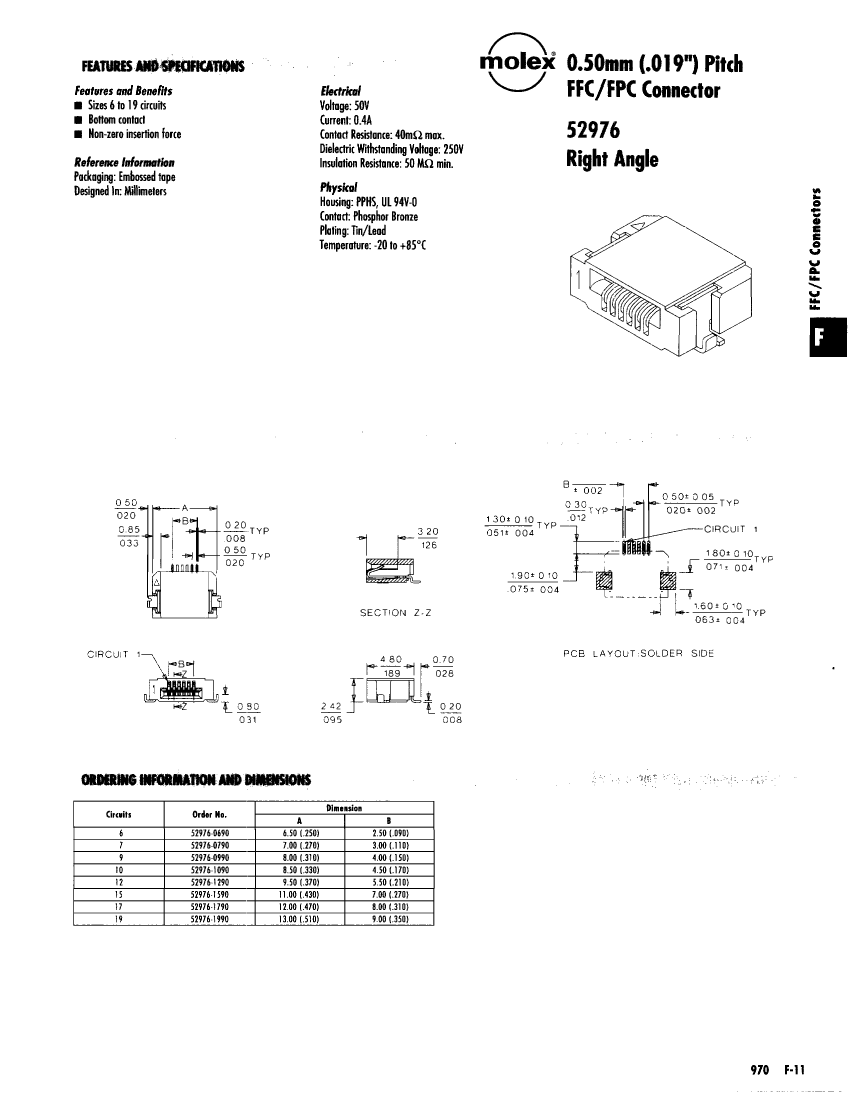

Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| body width | 0.095 inch |
| subject depth | 0.189 inch |
| body length | 0.37 inch |
| Connector type | FFC/FPC CONNECTOR |
| Contact to complete cooperation | SN-PB |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 40 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 250VDC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 50000000 Ω |
| MIL compliance | NO |
| Plug contact pitch | 0.02 inch |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 0.4 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 12 |
| UL Flammability Code | 94V-0 |
| 52976-1290 | 52976-0790 | 52976-0990 | 52976-1090 | 52976-1590 | 52976-1790 | 52976-1990 | 52976-0690 | |
|---|---|---|---|---|---|---|---|---|
| Description | Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal | Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal | Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal | Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal | Card Edge Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal | Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal | Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal | Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| body width | 0.095 inch | 0.095 inch | 0.095 inch | 0.095 inch | 0.095 inch | 0.095 inch | 0.095 inch | 0.095 inch |
| subject depth | 0.189 inch | 0.189 inch | 0.189 inch | 0.189 inch | 0.189 inch | 0.189 inch | 0.189 inch | 0.189 inch |
| body length | 0.37 inch | 0.27 inch | 0.31 inch | 0.33 inch | 0.43 inch | 0.47 inch | 0.51 inch | 0.25 inch |
| Connector type | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR |
| Contact to complete cooperation | SN-PB | SN-PB | SN-PB | SN-PB | NOT SPECIFIED | SN-PB | SN-PB | SN-PB |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 250VDC V | 250VDC V | 250VDC V | 250VDC V | 250VDC V | 250VDC V | 250VDC V | 250VDC V |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Insulation resistance | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| PCB row number | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Rated current (signal) | 0.4 A | 0.4 A | 0.4 A | 0.4 A | 0.4 A | 0.4 A | 0.4 A | 0.4 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 12 | 7 | 9 | 10 | 15 | 17 | 19 | 6 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
