TLYH1032(T14,F) datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> TLYH1032(T14,F)

TLYH1032(T14,F): DescriptionVisible LED, SINGLE COLOR LED, YELLOW, 1.2 mm, ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size326KB，17 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TLYH1032(T14,F) Overview

Visible LED, SINGLE COLOR LED, YELLOW, 1.2 mm, ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN

TLYH1032(T14,F) Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN
Reach Compliance Code	unknown
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	2.4 V
Nominal luminous intensity	100.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.45 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	590 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.6 mm

Preview

Download Datasheet

View All

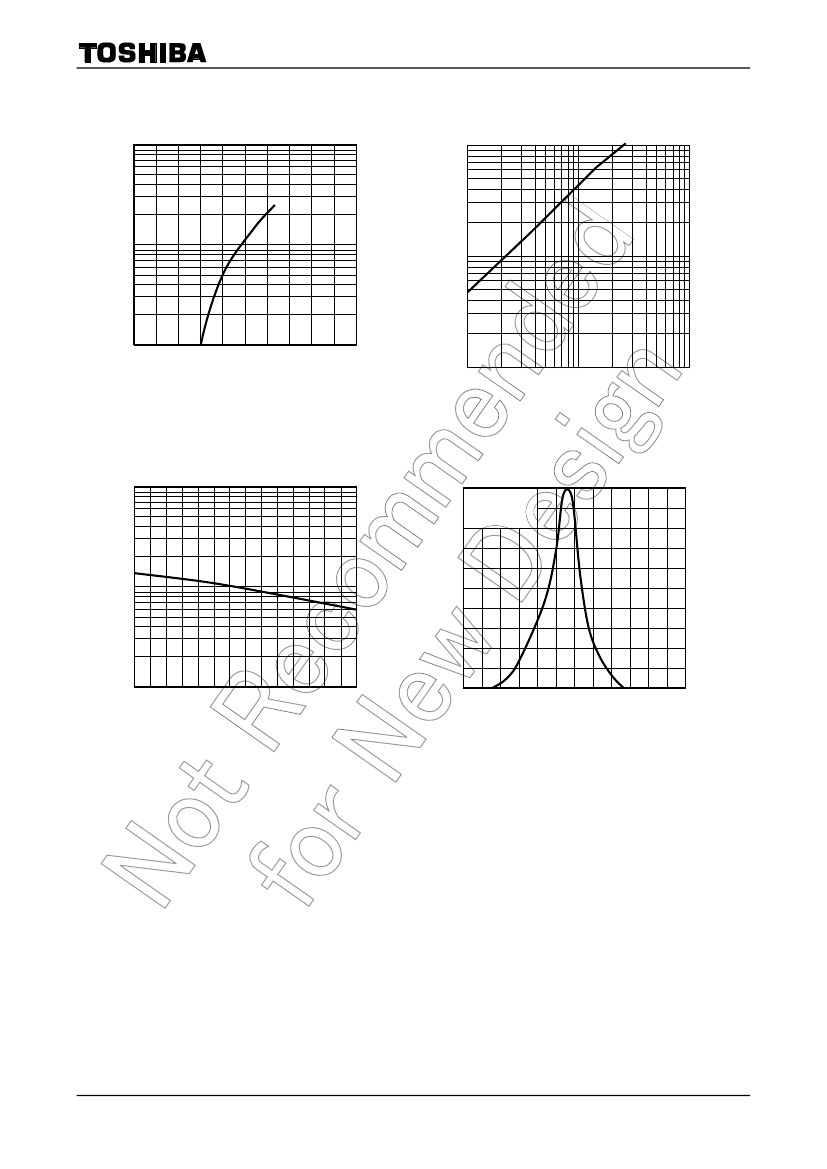

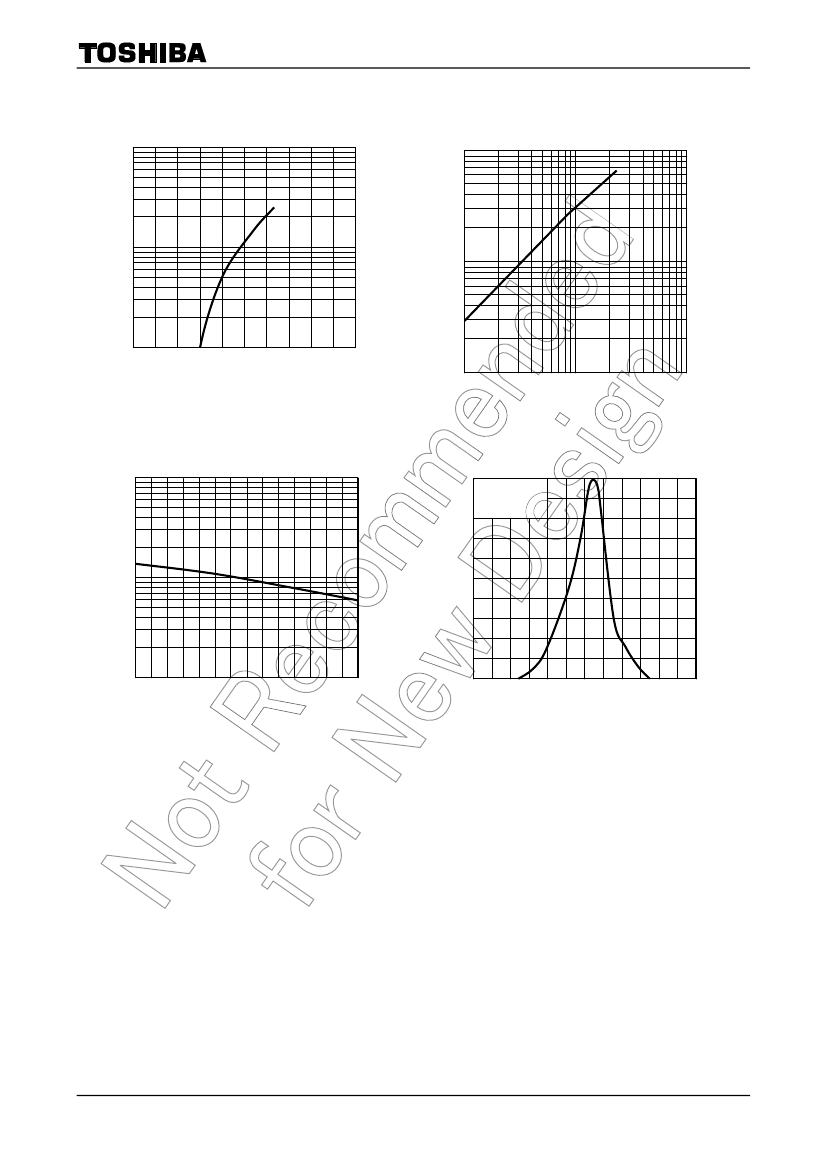

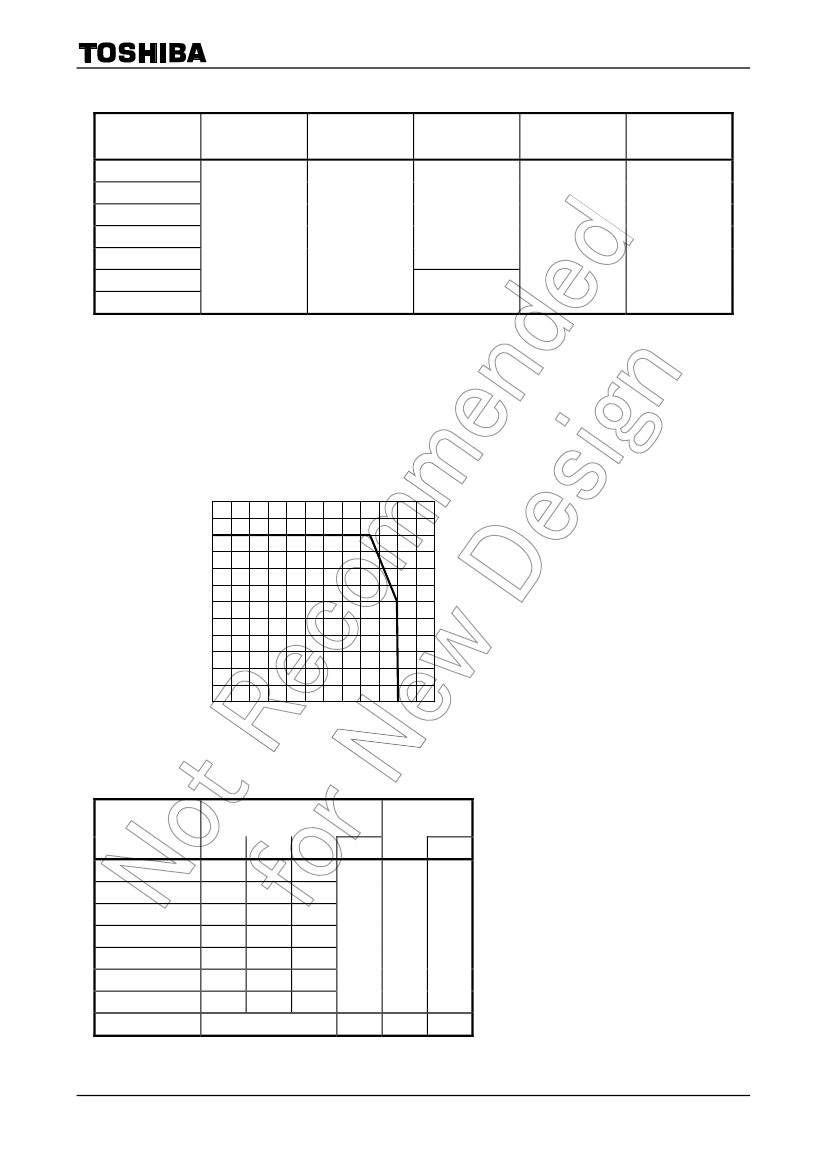

TL(RH,RMH,SH,OH,YH,GH,FGH)1032(T14,F)

TOSHIBA LED Lamps

TLRH1032(T14,F), TLRMH1032(T14,F), TLSH1032(T14,F),

TLOH1032(T14,F), TLYH1032(T14,F), TLGH1032(T14,F),

TLFGH1032(T14,F)

Unit: mm

Panel Circuit Indicators

•

Surface-mount devices

1.6 (L) mm × 0.8 (W) mm × 0.45 (H) mm (including lead length)

InGaAℓP LEDs

High luminous intensity and low power consumption

Colors: red, orange, yellow, green, pure green

Applications: backlighting for LCDs and switches for automotive

applications.

Standard embossed tape packing: T14 (4000 / reel)

4-mm pitch

JEDEC

JEITA

TOSHIBA

―

4-1A1

Color and Material

Part Number

TLRH1032

TLRMH1032

TLSH1032

TLOH1032

TLYH1032

TLGH1032

TLFGH1032

Color

Red

Orange

Yellow

Green

Fresh Green

InGaAℓP

Material

Weight: 0.001 g (typ.)

2008-11-18

TLYH1032(T14,F) Related Products

	TLYH1032(T14,F)	TLFGH1032(T14,F)	TLRH1032(T14,F)	TLSH1032(T14,F)	TLOH1032(T14,F)	TLRMH1032(T14,F)	TLRMH1032(T14	TLSH1032(T14
Description	Visible LED, SINGLE COLOR LED, YELLOW, 1.2 mm, ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	Visible LED, SINGLE COLOR LED, FRESH GREEN, 1.2 mm, ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	Visible LED, SINGLE COLOR LED, RED, 1.2 mm, ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	Visible LED, SINGLE COLOR LED, RED, 1.2 mm, ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	Visible LED, SINGLE COLOR LED, ORANGE, 1.2 mm, ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	Visible LED, SINGLE COLOR LED, RED, 1.2 mm, ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	SINGLE COLOR LED, RED, 1.2mm	SINGLE COLOR LED, RED, 1.2mm
package instruction	ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	ROHS COMPLIANT, PLASTIC, 4-1A1, 2 PIN	PLASTIC, 4-1A1, 2 PIN	PLASTIC, 4-1A1, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	YELLOW	FRESH GREEN	RED	RED	ORANGE	RED	RED	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Nominal luminous intensity	100.0 mcd	25.0 mcd	56.0 mcd	160.0 mcd	200.0 mcd	85.0 mcd	85.0 mcd	160.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.45 mm	0.45 mm	0.45 mm	0.45 mm	0.45 mm	0.45 mm	0.45 mm	0.45 mm
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"
peak wavelength	590 nm	568 nm	644 nm	623 nm	612 nm	636 nm	636 nm	623 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
color@wavelength	Yellow	Green	Red	Red	Orange	Red	-	-
Maximum forward voltage	2.4 V	2.5 V	2.4 V	2.4 V	2.4 V	2.4 V	-	-
Maximum reverse voltage	4 V	4 V	4 V	4 V	4 V	4 V	-	-
