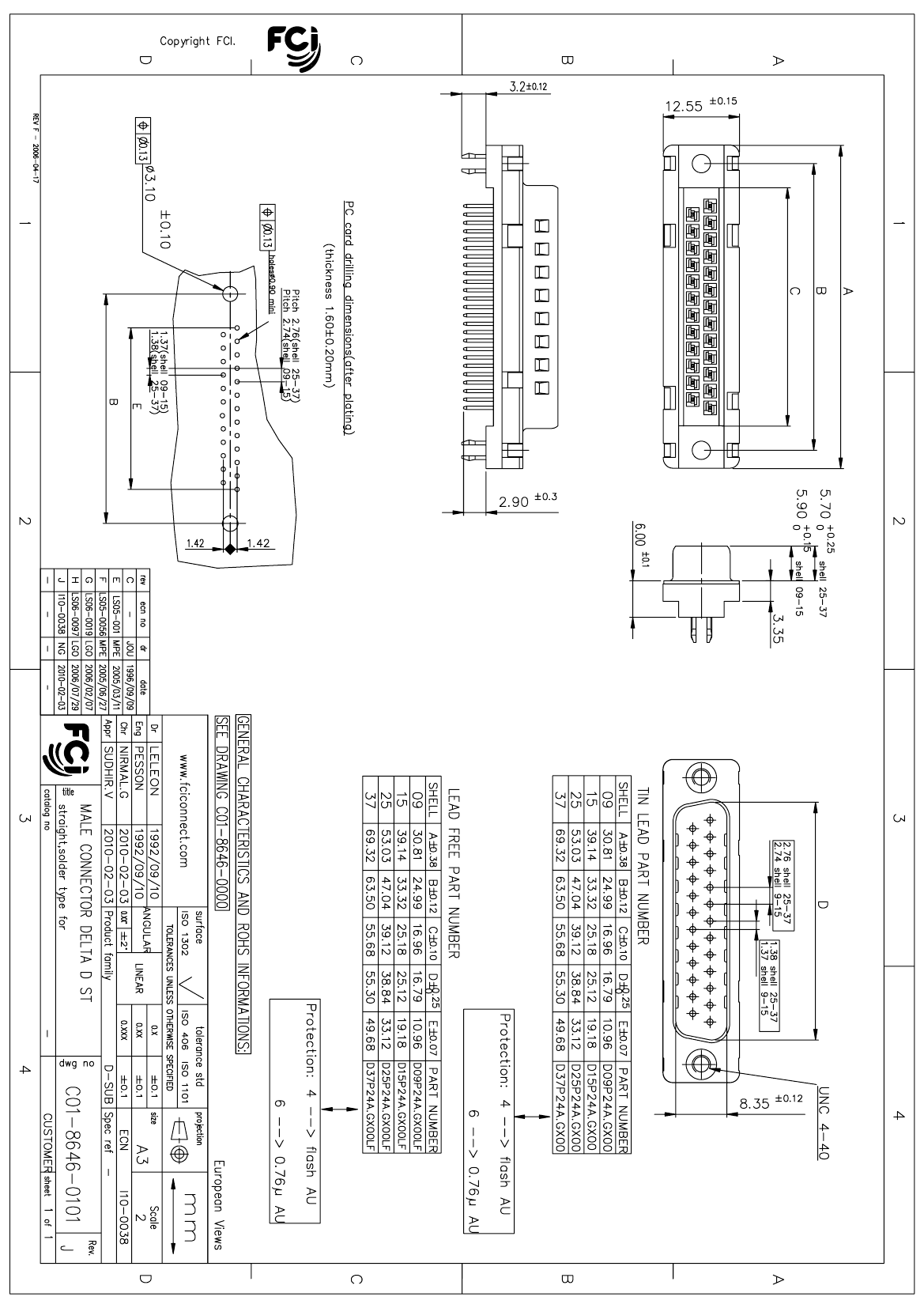

D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| body width | 0.492 inch |
| subject depth | 0.236 inch |
| body length | 1.541 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD FLASH |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | MALE |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | D |
| Plug contact pitch | 0.108 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | #4-40 |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 5 A |
| reliability | COMMERCIAL |
| Shell surface | TIN OVER NICKEL |
| Housing size | 2/A |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.7432 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| Evacuation force-minimum value | .3058 N |
| D15P24A4GX00 | D15P24A6GX00 | D25P24A6GX00 | D25P24A4GX00 | D37P24A4GX00 | D37P24A6GX00 | D09P24A6GX00 | D09P24A4GX00 | |
|---|---|---|---|---|---|---|---|---|
| Description | D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, Receptacle | D Subminiature Connector, 15 Contact(s), Male, Solder Terminal | D Subminiature Connector, 25 Contact(s), Male, Solder Terminal | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle | D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle | D Subminiature Connector, 37 Contact(s), Male, Solder Terminal | D Subminiature Connector, 9 Contact(s), Male, Solder Terminal | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, Receptacle |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | unknown | unknown | compliant | compliant | unknown | unknown | compliant |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD FLASH | GOLD (30) | GOLD (30) | GOLD FLASH | GOLD FLASH | GOLD (30) | GOLD (30) | GOLD FLASH |
| Contact completed and terminated | TIN LEAD | TIN LEAD | TIN LEAD | Tin/Lead (Sn/Pb) | TIN LEAD | TIN LEAD | TIN LEAD | Tin/Lead (Sn/Pb) |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| empty shell | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | D | D | D | D | D | D | D | D |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Housing size | 2/A | 2/A | 3/B | 3/B | 4/C | 4/C | 1/E | 1/E |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 15 | 15 | 25 | 25 | 37 | 37 | 9 | 9 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 |
