DAI3W3S700G30LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DAI3W3S700G30LF

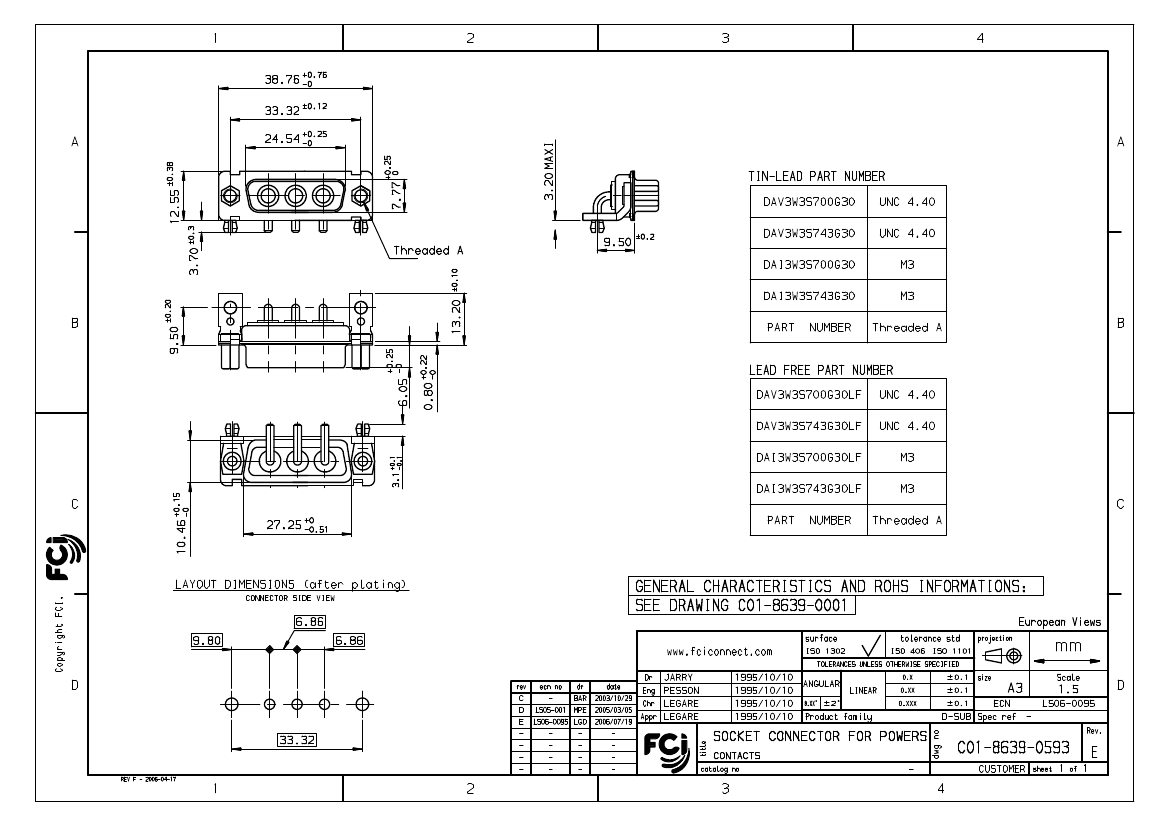

Preview

DAI3W3S700G30LF: DescriptionD Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

DAI3W3S700G30LF Overview

D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT

DAI3W3S700G30LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	DA
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Oct 01, 2010

.

DAI3W3S700G30LF Related Products

	DAI3W3S700G30LF	DAV3W3S700G30	DAV3W3S743G30	DAI3W3S700G30	DAI3W3S743G30LF	DAI3W3S743G30
Description	D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT	D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT	D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Socket
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	TIN	TIN LEAD	TIN LEAD	TIN LEAD	TIN	TIN LEAD
Contact completed and terminated	TIN	TIN LEAD	TIN LEAD	TIN LEAD	TIN	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e0	e0	e0	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	DA	DA	DA	DA	DA	DA
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	2/A	2/A	2/A	2/A	2/A
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	3	3	3	3	3
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol
