SBH1520: Description15 A, 20 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size364KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SBH1520 Overview

15 A, 20 V, SILICON, RECTIFIER DIODE

SBH1520 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.48 V
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	350 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	185 °C
Minimum operating temperature	-50 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20 V
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

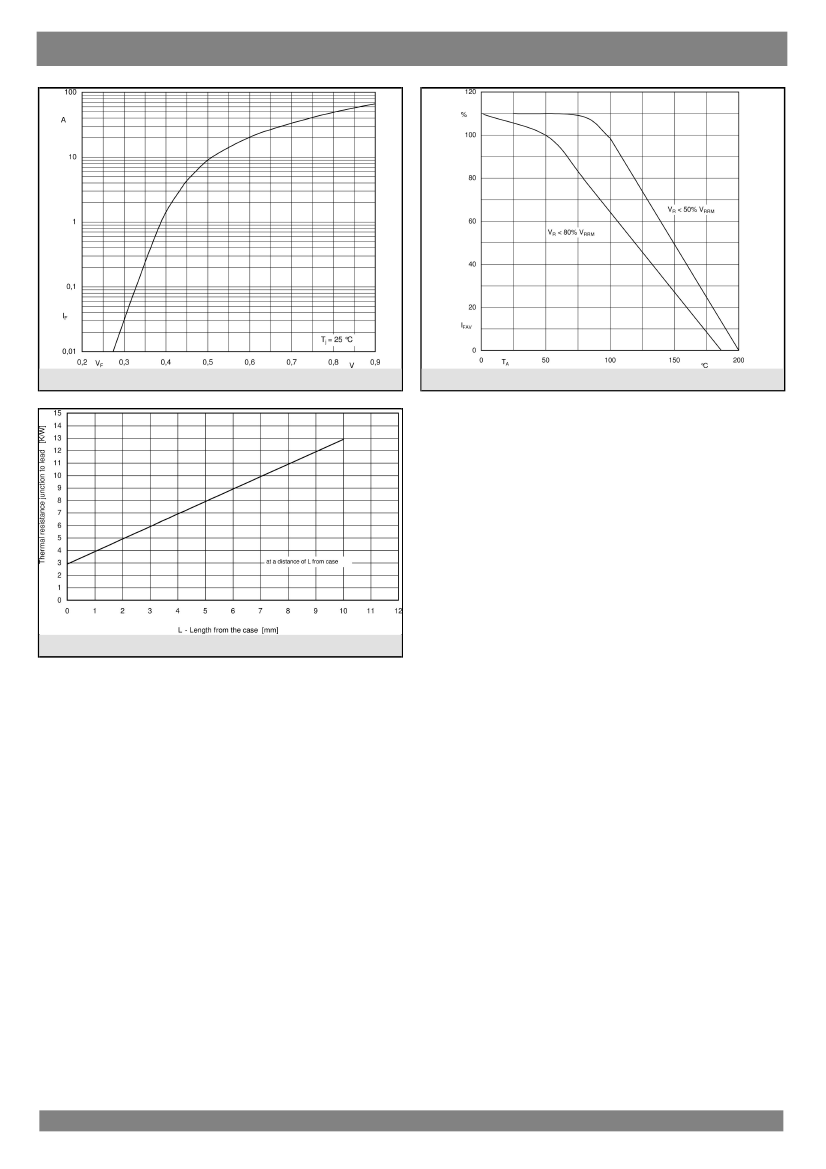

SBH 1520 ... SBH 1545

Axial lead diode

High temperature

schottky barrier diodes

SBH 1520 ... SBH 1545

Forward Current: 15 A

Reverse Voltage: 20 to 45 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Characteristics

Symbol Conditions

Values

Units

Mechanical Data

1)

Dimensions in mm

2)

3)

4)

5)

1

10-03-2011 MAM

SBH1520 Related Products

	SBH1520	SBH1530	SBH1545	SBH1540
Description	15 A, 20 V, SILICON, RECTIFIER DIODE	15 A, 30 V, SILICON, RECTIFIER DIODE	15 A, 45 V, SILICON, RECTIFIER DIODE	15 A, 40 V, SILICON, RECTIFIER DIODE
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	2
Reach Compliance Code	unknow	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.48 V	0.48 V	0.48 V	0.48 V
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	350 A	350 A	350 A	350 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	185 °C	185 °C	185 °C	185 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	20 V	30 V	45 V	40 V
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
