SBH2045TL datasheet, PDF - EEWORLD Datasheet

SBH2045TL: Description20 A, 45 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size360KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

SBH2045TL Overview

20 A, 45 V, SILICON, RECTIFIER DIODE

Parameter Name	Attribute value
Maker	SEMIKRON
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	650 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	185 °C
Minimum operating temperature	-50 °C
Maximum output current	20 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

SBH 2020TL...SBH 2045TL

Axial lead diode

High temperature

schottky barrier diodes

SBH 2020TL...SBH 2045TL

Forward Current: 20 A

Reverse Voltage: 20 to 45 V

Preliminary Data

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Mechanical Data

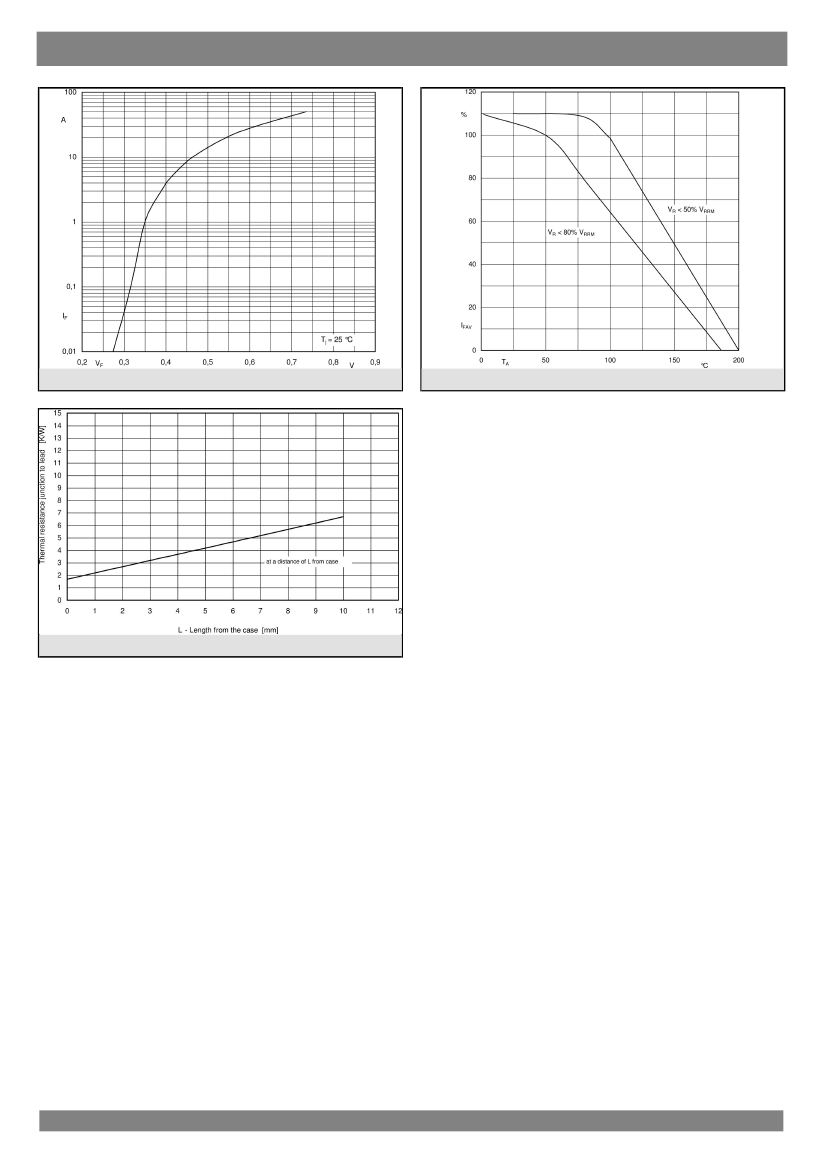

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

10-08-2010 MAM

	SBH2045TL	SBH2030TL	SBH2020TL	SBH2040TL
Description	20 A, 45 V, SILICON, RECTIFIER DIODE	20 A, 30 V, SILICON, RECTIFIER DIODE	20 A, 20 V, SILICON, RECTIFIER DIODE	20 A, 40 V, SILICON, RECTIFIER DIODE
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	2
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	650 A	650 A	650 A	650 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	185 °C	185 °C	185 °C	185 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	20 A	20 A	20 A	20 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	30 V	20 V	40 V
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Maker	SEMIKRON	SEMIKRON	SEMIKRON	-
