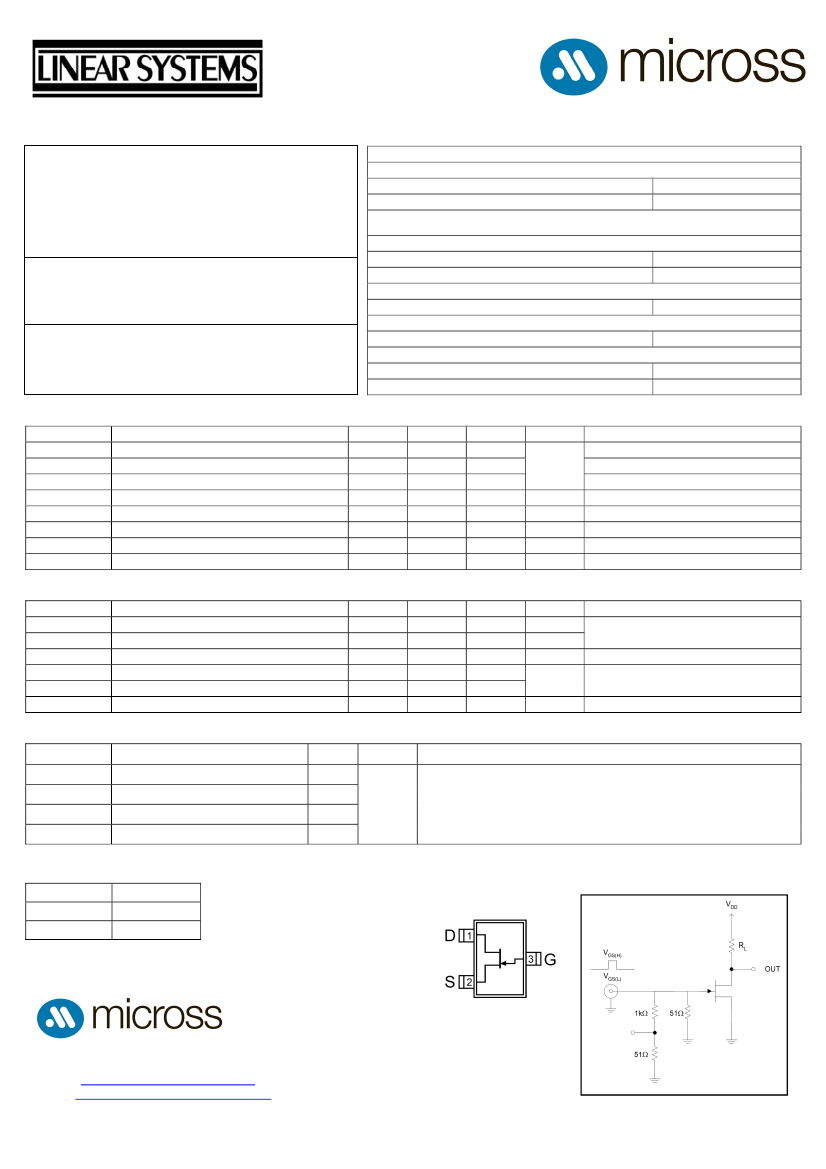

SST113

N-CHANNEL JFET

Linear Systems replaces discontinued Siliconix SST113

This n-channel JFET is optimised for low noise high

performance switching. The part is particularly suitable

for use in low noise audio amplifiers. The SOT-23

package is well suited for cost sensitive applications

and mass production.

(See Packaging Information).

FEATURES

DIRECT REPLACEMENT FOR SILICONIX SST113

LOW GATE LEAKAGE CURRENT

5pA

FAST SWITCHING

t

(on)

≤ 4ns

ABSOLUTE MAXIMUM RATINGS @ 25°C (unless otherwise noted)

Maximum Temperatures

Storage Temperature

‐55°C to +150°C

SST113 Benefits:

Operating Junction Temperature

‐55°C to +135°C

Short Sample & Hold Aperture Time

Maximum Power Dissipation

Low insertion loss

Continuous Power Dissipation

350mW

Low Noise

MAXIMUM CURRENT

SST113 Applications:

Gate Current (Note 1)

50mA

Analog Switches

MAXIMUM VOLTAGES

Commutators

Gate to Drain Voltage

V

GDS

= ‐35V

Choppers

Gate to Source Voltage

V

GSS

= ‐35V

SST113 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted)

SYMBOL

CHARACTERISTIC

MIN

TYP.

MAX

UNITS

CONDITIONS

BV

GSS

Gate to Source Breakdown Voltage

‐35

‐‐

I

G

= 1µA, V

DS

= 0V

V

GS(off)

Gate to Source Cutoff Voltage

‐‐

‐3

V

DS

= 5V, I

D

= 1µA

V

GS(F)

Gate to Source Forward Voltage

‐‐

0.7

‐‐

I

G

= 1mA, V

DS

= 0V

I

DSS

Drain to Source Saturation Current (Note 2)

2

‐‐

mA

V

DS

= 15V, V

GS

= 0V

I

GSS

Gate Reverse Current

‐‐

‐0.005

‐1

nA

V

GS

= ‐15V, V

DS

= 0V

I

G

Gate Operating Current

‐‐

‐0.5

‐‐

pA

V

DG

= 15V, I

D

= 10mA

I

D(off)

Drain Cutoff Current

‐‐

0.005

1

nA

V

DS

= 5V, V

GS

= ‐10V

r

DS(on)

Drain to Source On Resistance

‐‐

100

Ω

I

G

= 1mA, V

DS

= 0V

SST113 DYNAMIC ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted)

SYMBOL

CHARACTERISTIC

MIN

TYP.

MAX

UNITS

CONDITIONS

g

fs

Forward Transconductance

‐‐

6

‐‐

mS

V

DS

= 20V, I

D

= 1mA , f = 1kHz

g

os

Output Conductance

‐‐

25

‐‐

µS

r

DS(on)

Drain to Source On Resistance

‐‐

100

Ω

V

GS

= 0V, I

D

= 0mA, f = 1kHz

C

iss

Input Capacitance

‐‐

7

12

pF

V

DS

= 0V, V

GS

= ‐10V, f = 1MHz

C

rss

Reverse Transfer Capacitance

‐‐

3

5

e

n

Equivalent Noise Voltage

‐‐

3

‐‐

nV/√Hz

V

DG

= 10V, I

D

= 1mA , f = 1kHz

SST113 SWITCHING CHARACTERISTICS @ 25°C (unless otherwise noted)

SYMBOL

CHARACTERISTIC

UNITS

CONDITIONS

Click To Buy

Turn On Time

Turn On Rise Time

Turn Off Time

Turn Off Fall Time

2

6

15

ns

V

DD

= 10V

V

GS

(H) = 0V

See Switching Circuit

Available Packages:

SST113 in SOT-23

SST113 in bare die.

Please contact Micross for full

package and die dimensions

SOT-23 (Top View)

t

d(on)

t

r

t

d(off)

t

f

Note 1 ‐ Absolute maximum ratings are limiting values above which SST113 serviceability may be impaired. Note 2 – Pulse test: PW≤ 300 µs, Duty Cycle ≤ 3%

SST113 SWITCHING CIRCUIT PARAMETERS

‐5V

R

L

3200Ω

I

D(on)

3mA

Micross Components Europe

V

GS(L)

SWITCHING TEST CIRCUIT

Tel: +44 1603 788967

Email:

chipcomponents@micross.com

Web:

http://www.micross.com/distribution
