Technical Data Sheet

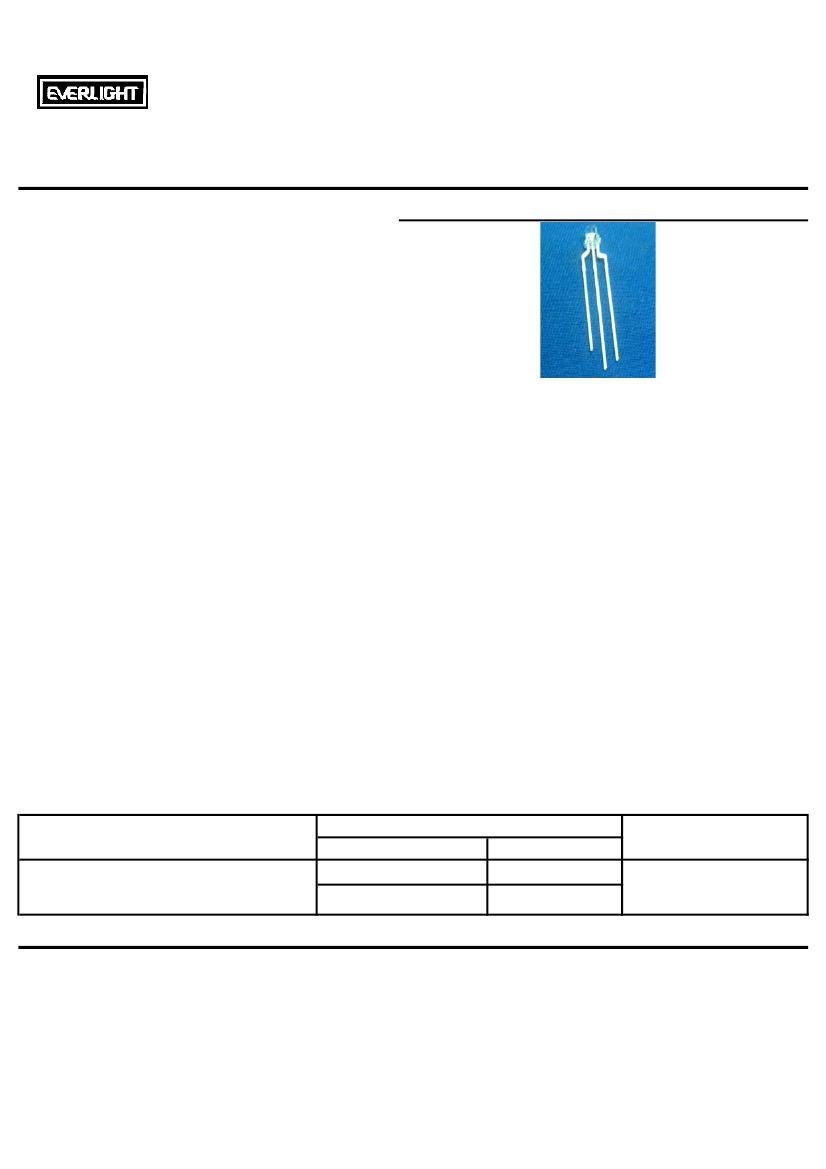

3.0mm Multi-Color Round Type LED Lamps
209UYOSUGC/S530-A3
█
Features :
●
Two chips are matched for uniform
light output, wide viewing angle
●
●
●
●
Long life-solid state reliability
I.C. compatible/Low power consumption
Pb free
The product itself will remain within RoHS compliant version
█
Descriptions :
●
The209LED lamps contain two integral
chips and is available as both bicolor
and bipolar types.
●
Super Yellow Orange and
light is emitted by diodes of
AlGaInP
and
Super Green
InGaN/SiC
●
Type of bicolar lamps are both white
diffused and color diffused while the
bicolor are water clear.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
Chip
Material
AlGaInP
209UYOSUGC/S530-A3
InGaN/SiC
PART NO.
Emitted Color
Super Yellow Orange
Super Green
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-020-1031
http : //www.everlight.com
Prepared date:
2006/1/25
Rev.:
1
Page:
1 of 7
Prepared by:
Xiuzen Feng
BG0601107，R0601145
Technical Data Sheet
3.0mm Multi-Color Round Type LED Lamps
209UYOSUGC/S530-A3
Package Dimensions
SUG
UYO
1
2
3
1
2
3
Notes:
1.All dimensions are in millimetres
2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension ±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
ESD
Pd
V
R
UYO/S530
SUG/C525
Rating
25
30
Unit
mA
℃
℃
℃
-40 to +85
-40 to +100
260 ± 5
UYO/S530
SUG/C525
UYO/S530
SUG/C525
5
2000
1000
60
130
V
mW
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-020-1031
http : //www.everlight.com
Prepared date: 2006/1/25
Rev.:
Prepared by:
1
Page:
2 of 7
Xiuzen Feng
Technical Data Sheet
3.0mm Multi-Color Round Type LED Lamps
209UYOSUGC/S530-A3
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Symbol
UYO/S530
SUG/C525
UYO/S530
SUG/C525
UYO/S530
Luminous Intensity
SUG/C525
Viewing
Peak Wavelength
Angle
UYO/S530
SUG/C525
UYO/S530
SUG/C525
Spectrum Radiation
Bandwidth
UYO/S530
SUG/C525
△λ
I
F
=
20
mA
2θ1/2
λp
IF=
I
F
=
20
20
mA
mA
V
F
I
R
Condition
I
F
=
V
R
=
20
mA
Min.
／
／
／
／
100
160
／
／
／
／
／
／
／
Typ.
2.0
3.5
／
／
200
320
50
611
518
605
525
17
30
Max.
2.4
4.3
10
50
／
／
／
／
／
／
／
／
／
nm
deg
nm
Unit
V
Reverse Current
5
V
μA
Iv
I
F
=
20
mA
mcd
Dominant
Wavelength
λd
I
F
=
20
mA
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-020-1031
http : //www.everlight.com
Prepared date:
2006/1/25
REV.:
Prepared by:
1
Page: 3of 7
Xiuzen Feng
Technical Data Sheet
3.0mm Multi-Color Round Type LED Lamps
209UYOSUGC/S530-A3
█

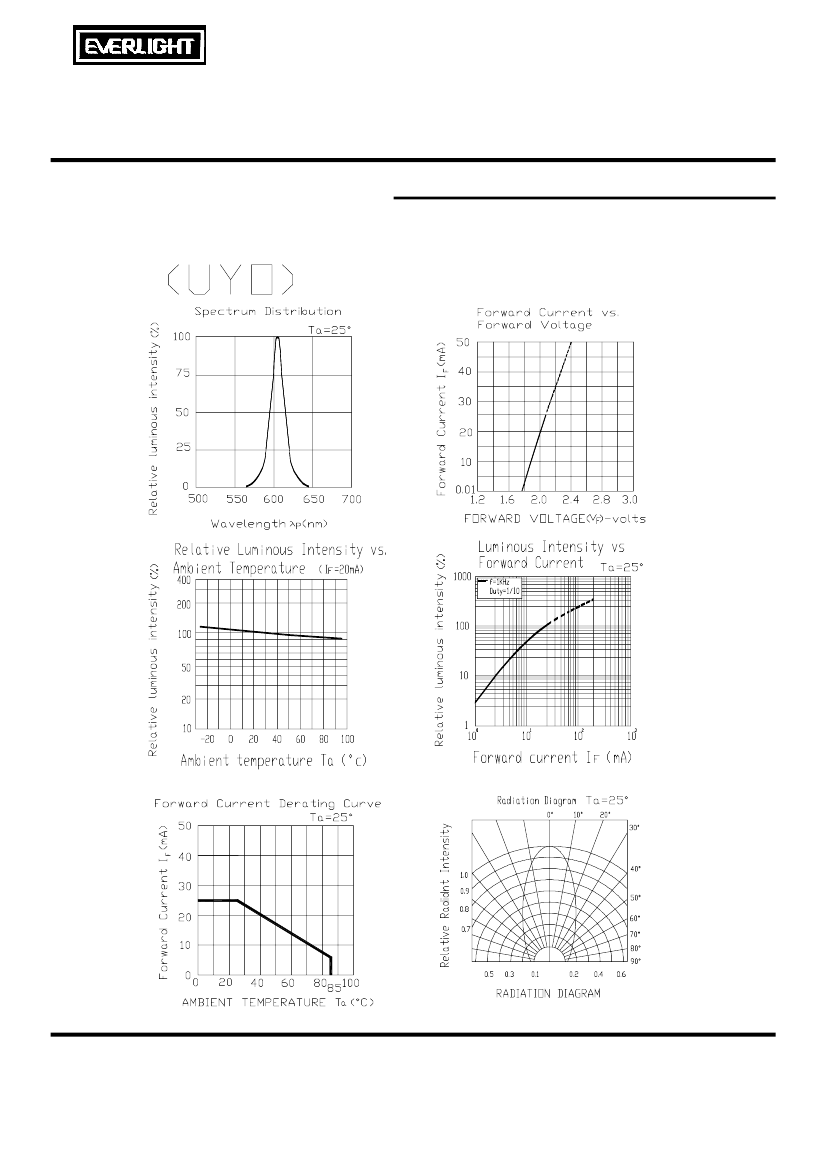

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-020-1031
http : //www.everlight.com
Prepared date: 2006/1/25
Rev.:
1
Page:
4 of 7
Prepared by:
Xiuzen Feng
Technical Data Sheet
3.0mm Multi-Color Round Type LED Lamps
209UYOSUGC/S530-A3
█

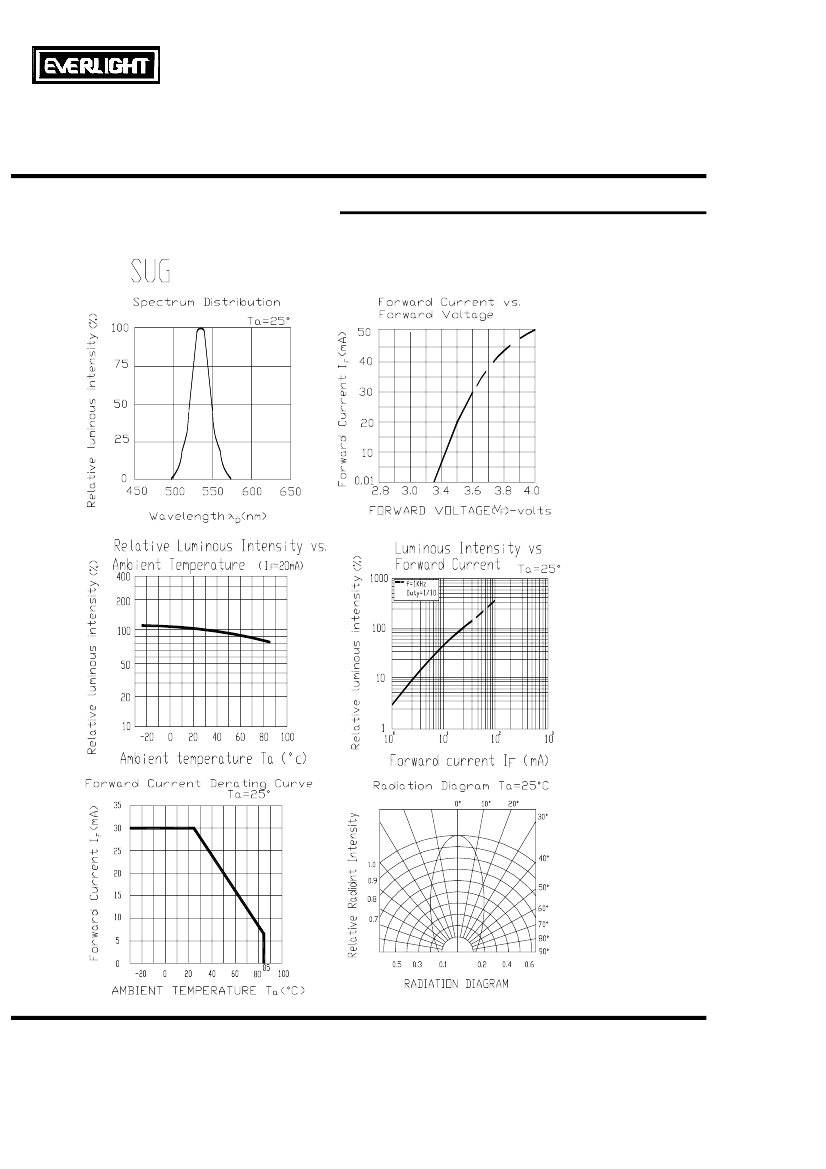

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-020-1031
http : //www.everlight.com
Prepared date: 2006/1/25
Rev.:
1
Page:
5 of 7
Prepared by:
Xiuzen Feng
