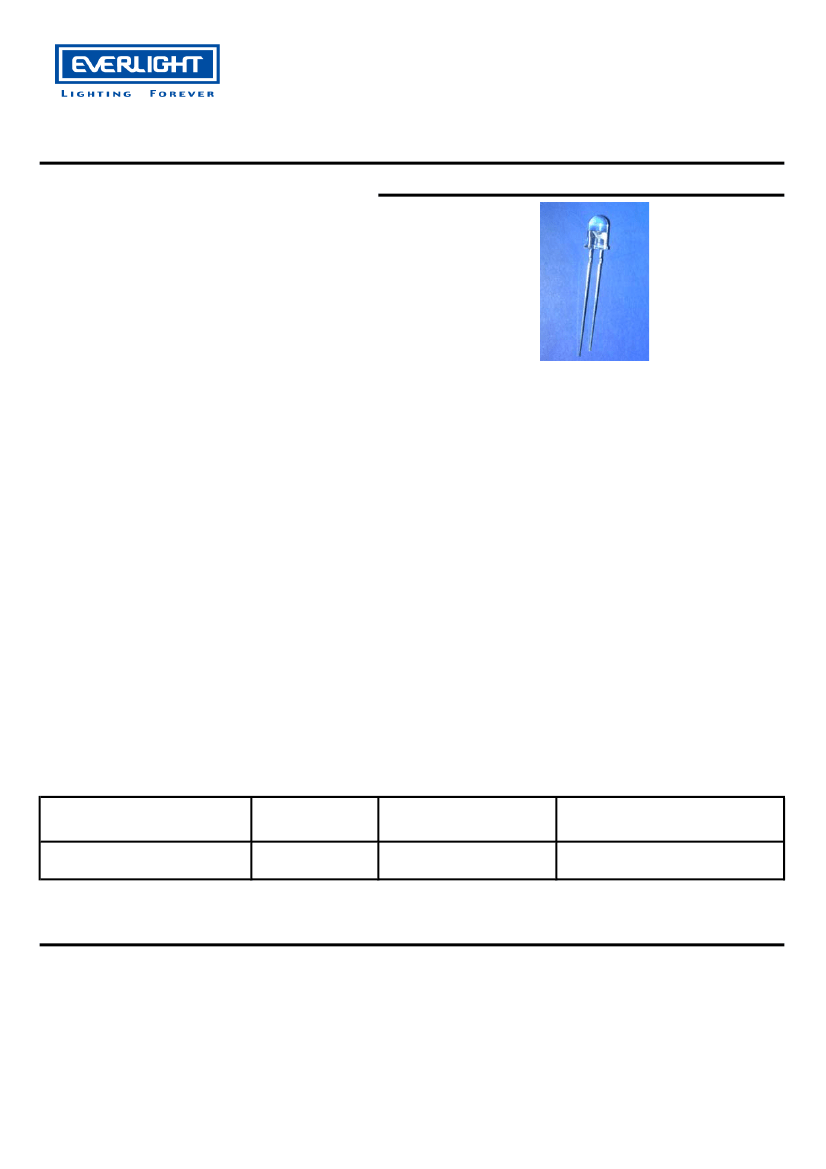

Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SUBC/C470/S400-A6
█
Features :
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
●
●
Pb free
●
The product itself will remain within RoHS compliant version.
●
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
333-2SUBC/C470/S400-A6
Material
InGaN
Emitted Color
Blue
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-0001171
http : //www.everlight.com
Prepared date: 2009/4/7
Rev.:
2
Page: 1 of 6
Li ming
Prepared by:
0
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SUBC/C470/S400-A6
Package Dimensions
Notes:
1. All dimensions are in millimetres
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Peak Forward Current
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
ESD
Pd
I
F
(Peak)
V
R
Rating
25
-40 to +85
-40 to +100
260
±
5
150
110
100
5
Unit
mA
℃
℃
℃
V
mW
mA
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-0001171
http : //www.everlight.com
Prepared date:
2009/4/7
Rev.:
2
Prepared by:
Page: 2 of 6
Li ming
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SUBC/C470/S400-A6
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
VF
IR
Iv
2θ1/2
λp
λd
△λ
Condition
I
F
=
V
R
=
I
F
=
I
F
=
I
F
=
I
F
=
I
F
=
Min.
／
／
1000
／
／
／
／
Typ.
3.4
／
2000
10
468
470
35
Max.
4.0
50
／
／
／
／
／
Unit
V
μA
mcd
deg
nm
nm
nm
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :DLE-0001171
http : //www.everlight.com
Prepared date:
2009/4/7
Rev.:
Prepared by:
2
Li ming
Page: 3 of 6
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SUBC/C470/S400-A6
█

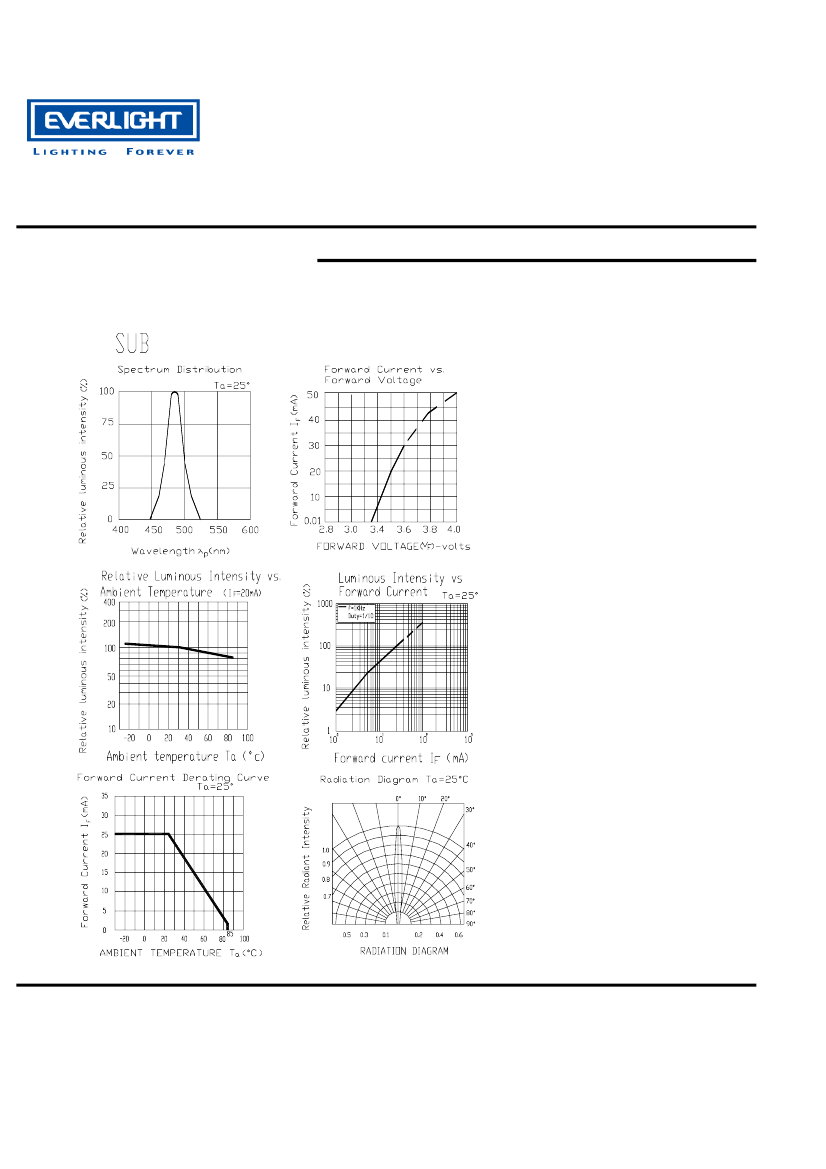

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-0001171
http : //www.everlight.com
Prepared date:
2009/4/7
Rev.:
Prepared by:
2
Page: 4 of 6
Li ming
Technical Data Sheet
5.0mm Round Type LED Lamps
333-2SUBC/C470/S400-A6
█
Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%
NO
Item
Test Conditions
Test
Hours/Cycle
10 SEC
Sample Size
Failure
Judgment
Criteria
Ac/Re
1
Solder Heat
TEMP : 260℃
±
5 ℃
76 PCS
0/1
2
Temperature Cycle
3
Thermal Shock
High Temperature
Storage
Low Temperature
Storage
DC Operating Life
High Temperature /
High Humidity
H : +100℃ 15min
∫ 5 min 300 CYCLES
L : -40℃ 15min
H : +100℃ 5min
∫ 10 sec
300 CYCLES
L : -10℃ 5min
TEMP : 100℃
1000 HRS
76 PCS
0/1
76 PCS
Iv≦Ivt*0.5 or
Vf≧U
or
Vf≦L
0/1
4
76 PCS
0/1
5
TEMP : -40℃
TEMP : 25℃
I
F
= 20mA
85℃ / 85% RH
1000 HRS
76 PCS
0/1
6
7
1000 HRS
1000 HRS
76 PCS
76 PCS
0/1
0/1
Note：Ivt：To test Iv value of the chip before the reliablility test
Iv：The test value of the chip that has completed the reliablility test
U：Upper Specification Limit
L： Lower Specification Limit
EVERLIGHT ELECTRONICS CO.,L
Device Number :
DLE-0001171
http : //www.everlight.com
Prepared date:
2009/4/7
Rev.: 2
Prepared by:
Page: 5 of 6
Li ming
