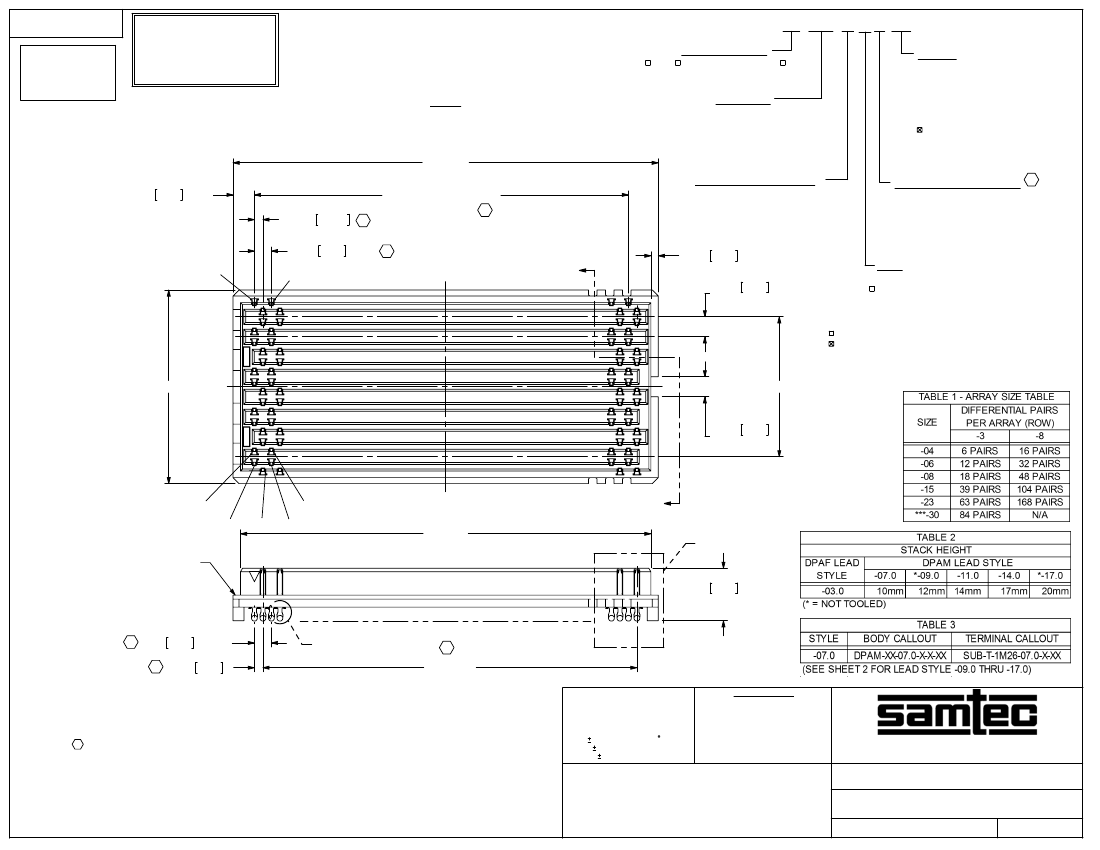

REVISION P
DO NOT
SCALE FROM
THIS PRINT
PATENT NUMBERS
6979238
6969286
7159312
7052337
/
/
/
/
7137832
7178232
7172438
7125293
-04,
DPAM-XX-XX.X-X-X-X-XX
No OF POSITIONS
-06, -08, -15, -23, *** -30
(PER ROW)
LEAD STYLE
-07.0: (SEE TABLE 3)
*-09.0: (SEE TABLE 6, SHT3)
-11.0: (SEE TABLE 6, SHT3)
-14.0: (SEE TABLE 6, SHT3)
*-17.0: (SEE TABLE 6, SHT3)
PLATING SPECIFICATION
OPTION
-A: ALIGNMENT PIN
(SEE FIG. 3, SHT 4)
-K: KAPTON PAD
(SEE FIG. 4, SHT 4)
-TR: TAPE & REEL
(LEAVE BLANK FOR TRAYS)
*** -GP: GUIDE POST
(SEE FIG. 5, SHT 5)
(ONLY AVAILABE WITH -07.0
LEAD STYLE)
SOLDER CRIMP MATERIAL C
-1: 63%TIN/37%LEAD
(USE SUB-T-1M26-07.0-X-01 OR
USE SUB-T-1M32-XX.X-X-1)
-2: 96.5% TIN/3.5% SILVER
(USE SUB-T-1M26-07.0-X-02 OR
USE SUB-T-1M32-XX.X-X-2)
ROW
-8: 8 DIFFERENTIAL PAIR ROWS
-3: 3 DIFFERENTIAL PAIR ROWS
* = NOT TOOLED
= ONLY AVAILABLE WITH -07.0 LEAD STYLE
= ONLY AVAILABLE IN 3 ROW WITH -07.0 LEAD
STYLE & 23 POSITIONS
** = FOR EXISTING CUSTOMER ONLY
*** = NOT RELEASED FOR PRODUCTION
DPAM-23-07.0-X-8-X SHOWN
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 1
"A" REF
.107 2.71 REF
.0425 1.080
C
"C" SPCS @ .085 = "D"
C
**-H: 30µ" GOLD IN CONTACT
AREA, MATT TIN ON TAIL
-S: 30µ" GOLD IN CONTACT
AREA, MATTE TIN ON TAIL.
.037 0.94 REF
.100 2.54
REF (TYP)
.085 2.16 (TYP) C
G1
(Ground Pin)
G3
"A"
"G" REF
"F" REF
.100 2.54
REF
PIN 2 (PAIR 1)
PIN 1 (PAIR 1)
G2
PIN 4 (PAIR 2)
PIN 3 (PAIR 2)
"B" REF
"A"
'B'
DPAM-XX-070.0-X
.262 6.65 REF
(SEE NOTE 6)
C .085 2.16 (TYP)
C
.043 1.08
'C'
C
"E" (TYP)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
NOTES:
1.
2.
3.
4.
5.
6.
7.
C
(SEE SHEET 2 FOR BOTTOM VIEW)
REPRESENTS A CRITICAL DIMENSION.
MINIMUM PUSHOUT FORCE: .5 LBS.
PARTS PACKAGED IN TRAYS IF -TR OPTION IS NOT SELECTED
SOLDER CRIMP LOCATION MUST BE VERIFIED ON 6 CONSECUTIVE PINS.
SEE RECOMMENDED FOOTPRINT DRAWING FOR STENCIL REQUIREMENTS.
MEASURE ON ALL 4 CORNERS OF THE ASSEMBLY, INCLUDING ADJACENT ROW.
DIMENSION TO BE CHECKED AT TIPS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.050]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: L.C.P., COLOR: BLACK
TERMINAL: COPPER ALLOY
.085 PITCH DP TERMINAL ASSEMBLY
DWG. NO.
DPAM-XX-XX.X-X-X-X-XX
6/3/2003
SHEET
1
OF
5
F:\DWG\MISC\MKTG\DPAM-XX-XX.X-X-X-X-XX-MKT.SLDDRW
BY:
CHAD F

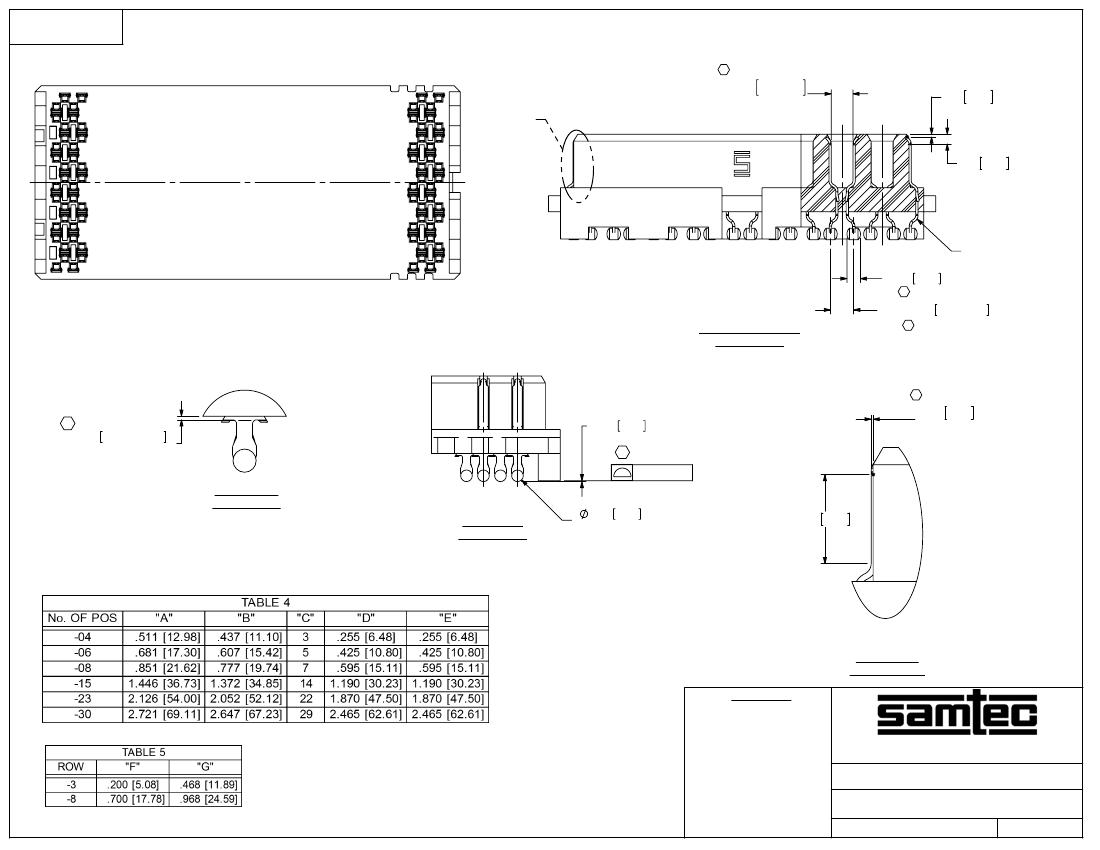

REVISION P
C
.054
+.0070
1.37
+0.18
- .0050
- 0.13
(SEE NOTE 7)
'D'
.007 0.18 REF
.025 0.62 REF
SUB-T-1M26-07.0-X-XX
.034 0.85 REF (TYP)
C
(BOTTOM VIEW PROJECTED FROM SHEET 1)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
.058±.005 1.48±0.13 (TYP)
SECTION "A"-"A"
SCALE 4 : 1
C
L
C
L
C
C
C
.0045±.0020 0.114±0.051
(SEE NOTE 6)
.002 0.05
.002 0.05 REF
C
.010 [0.25]
(SEE NOTE 7)
(ALL TERMINALS NOT
SHOWN FOR CLARITY)
DETAIL 'C'
SCALE 8 : 1
DETAIL 'B'
SCALE 4 : 1
.029 0.74
REF (TYP)
.089 2.26
DETAIL 'D'
SCALE 10 : 1
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.085 PITCH DP TERMINAL ASSEMBLY
SHEET SCALE: 2:1
DPAM-XX-XX.X-X-X-X-XX
CHAD F
6/3/2003
SHEET
2
OF
5
F:\DWG\MISC\MKTG\DPAM-XX-XX.X-X-X-X-XX-MKT.SLDDRW
BY:

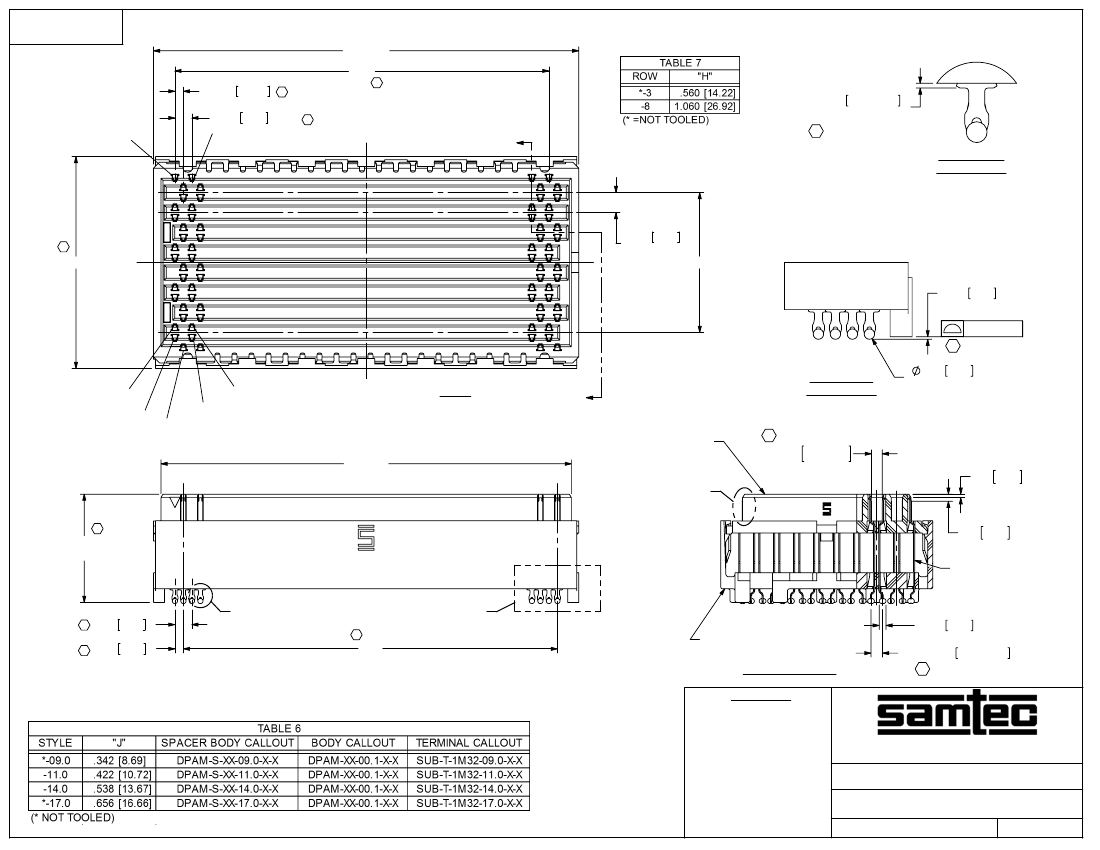

REVISION P
"A" REF
"D"
.0425 1.080
C
C
C
.085 2.16 (TYP)
(Ground Pin)
.006±.003 0.15±0.08
(SEE NOTE 6)
"E"
C
G1
G3
DETAIL 'G'
SCALE 8 : 1
(ALL TERMINALS NOT
SHOWN FOR CLARITY)
C
.100 2.54
REF (TYP)
"F" REF
.006 0.15 REF
.008 [0.20]
C
"H" REF
PIN 2 (PAIR 1)
PIN 1 (PAIR 1)
G2
PIN 4 (PAIR 2)
PIN 3 (PAIR 2)
"E"
DPAM-23-14.0-X-8-X SHOWN
-09.0 THRU -17.0 LEAD STYLE
(SAME AS FIG1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
"B" REF
FIG 2
DETAIL 'H'
SCALE 4 : 1
.026 0.66
REF (TYP)
DPAM-XX-00.1-X-X
C
.054
+.007
1.37
+0.18
- .004
- 0.10
.018 0.45 REF
'F'
C
"J"
(SEE NOTE 6)
.035 0.90 REF
SUB-T-1M32-XX.X-X-X
'G'
C
C
'H'
C
.085 2.16
.043 1.08
.034 0.86 REF (TYP)
"E"
DPAM-S-XX-XX.X-X-X
.058±.005 1.47±0.13 (TYP)
SECTION "E"-"E"
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
C
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
.085 PITCH DP TERMINAL ASSEMBLY
DWG. NO.
SHEET SCALE: 2:1
DPAM-XX-XX.X-X-X-X-XX
6/3/2003
SHEET
3
OF
5
F:\DWG\MISC\MKTG\DPAM-XX-XX.X-X-X-X-XX-MKT.SLDDRW
BY:
CHAD F

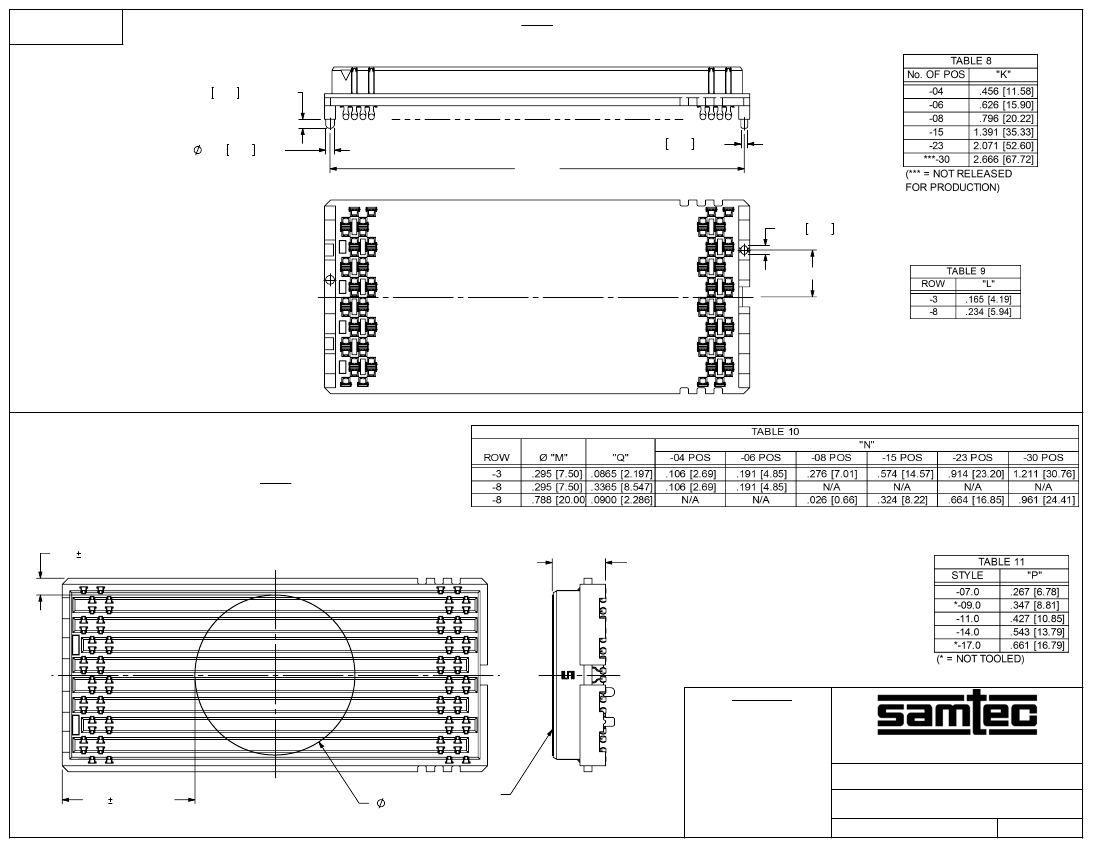

REVISION P
DPAM-23-07.0-X-8-1-A SHOWN
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 3
.045 1.14 REF (TYP)
.044 1.12 REF
"K" REF
.034 0.86 REF
.044 1.12 REF
"L" REF
DPAM-23-07.0-X-8-X-A-K SHOWN
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 4
"Q"
.020[0.51]
"P"
(INCL. K-DOT)
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
"N"
.020 [0.51]
"M"
K-1000-800
.085 PITCH DP TERMINAL ASSEMBLY
SHEET SCALE: 2:1
DPAM-XX-XX.X-X-X-X-XX
6/3/2003
SHEET
4
OF
5
F:\DWG\MISC\MKTG\DPAM-XX-XX.X-X-X-X-XX-MKT.SLDDRW
BY:
CHAD F

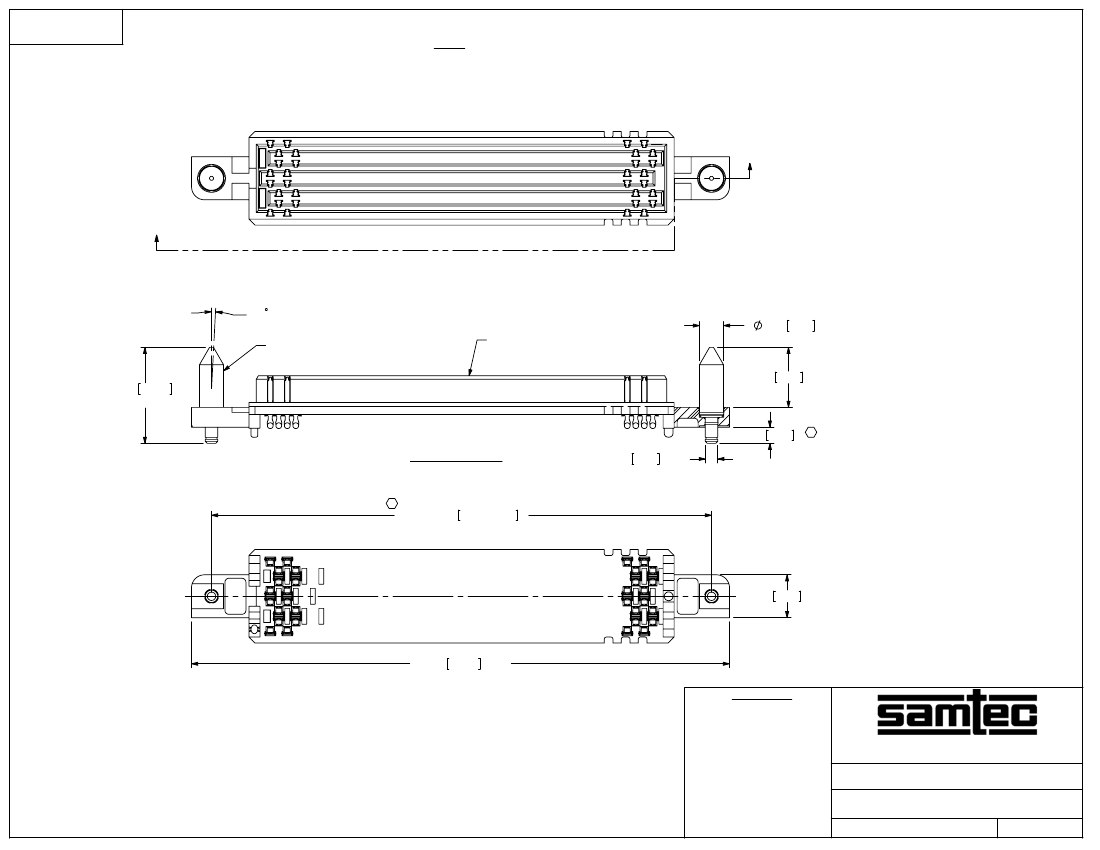

REVISION P
*** DPAM-23-07.0-X-3-X-A-GP SHOWN
(ONLY AVAILABLE ON 3 ROW, 23 POSITIONS)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
*** = NOT RELEASED FOR PRODUCTION
FIG 5
"F"
"F"
2 MAX SWAY
(TYP)
T-1R34-XX-T
DPAM-XX-070.0-X-A-GP
.120 3.05 REF
.480 12.19
REF
.300 7.62 REF
.081 2.06
C
SECTION "F"-"F"
.062 1.57 REF
C
2.500±.002 63.50±0.05
.215 5.46 REF
2.690 68.33 REF
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.085 PITCH DP TERMINAL ASSEMBLY
SHEET SCALE: 2:1
DPAM-XX-XX.X-X-X-X-XX
CHAD F
6/3/2003
F:\DWG\MISC\MKTG\DPAM-XX-XX.X-X-X-X-XX-MKT.SLDDRW
BY:
SHEET
5
OF
5
