DX19S

Description
Single In Line DIP Switches (SIP Switches)
File Size123KB,2 Pages
ManufacturerGREATECS
Websitehttp://www.greatecs.com/
Download Datasheet Compare View All

DX19S Overview

Single In Line DIP Switches (SIP Switches)

DIP Switches
Single In Line DIP Switches (SIP Switches)

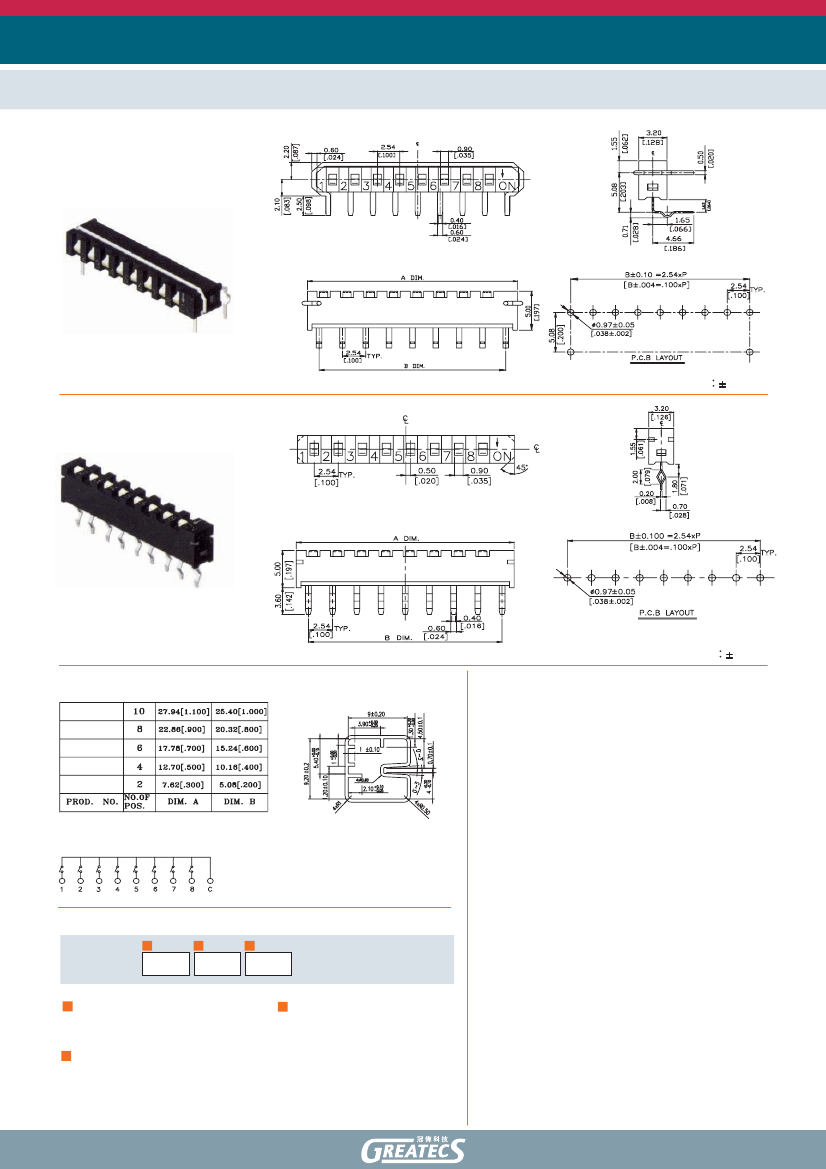

DX19 Series
DX19R_
Right Angle Terminals
General Tolerance:±0.2mm
DX19S_
Straight Terminals
General Tolerance
:±0.2mm
Dimention A & B:
DX19_10
DX19_08
DX19_06
Dx19_04
DX19_02
Tube Dimention:
General Specifications:
MATERIALS
» Cover: UL 94V-0 Nylon High-Temp Thermoplastic Black
» Base: UL 94V-0 PBT or Nylon High-Temp Thermoplastic Black
» Actuator: UL 94V-0 Nylon Thermoplastic White
» Contact: Alloy Copper with gold plated
» Terminal: Brass with tin plated
Schematic (Typ.):
Packing Unit:
DX19S02TB: 62/tube
DX19S04TB: 37/tube
DX19S06TB: 27/tube
DX19S08TB: 20/tube
DX19S10TB: 17/tube
DX19R02TB: 56/tube
DX19R04TB: 35/tube
DX19R06TB: 25/tube
DX19R08TB: 20/tube
DX19R10TB: 16/tube
MECHANICAL
» Mechanical Life: 500 cycles
» Operation Force: 800 gf
» Operation Temperature: -30°C to +80°C
» Storage Temperature: -30°C to +80°C
ELECTRICAL
» Electrical Life: 500 cycles
How to order:
1
2
3
DX19
1
» Non-Switching Rating: 100mA, 50VDC
» Switching Rating: 10mA, 5VDC
» Circuit: Single pole single throw
» Contact Resistance at current 100mA:
100m max. at initial, 200m max. after life test
» Insulation Resistance: 100M
SOLDERING PROCESSES
» Wave Soldering: Recommended solder temperature at 260°C
max. 5 seconds.
» Hand Soldering: Use a soldering iron of 30 watts, controlled at 350°C
approximately max 5 seconds while applying solder.
min. 500VDC
R
S
2
TYPE OF TERMINALS:
Right Angle Terminal
Straight Terminal
NO. OF POSITIONS:
2 Positions
4 Positions
6 Positions
8 Positions
10 Positions
3
TB
PACKAGE STYLE:
Tube
02
04
06
08
10
sales@greatecs.com
www.greatecs.com
