DIP Switches
SMT Half Pitch Type Halogen-Free DIP Switches

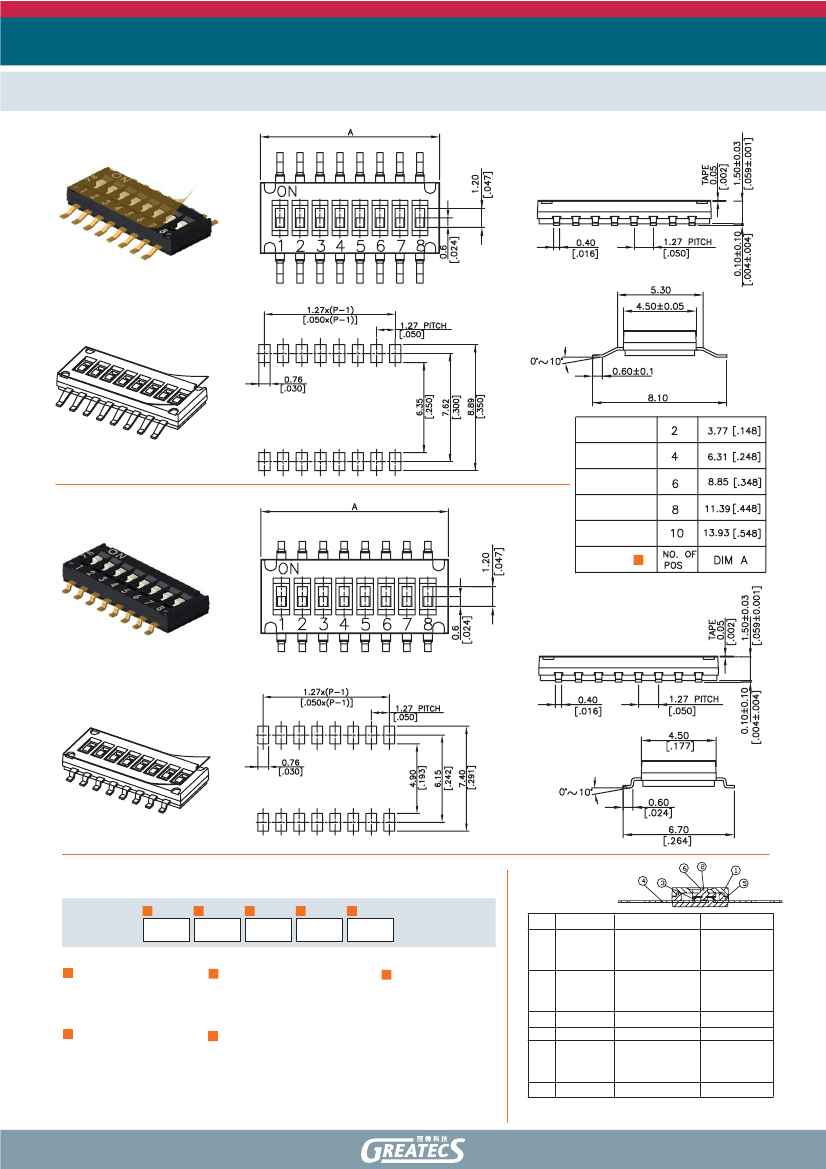

DX48H Series
DX48HL...
Terminal Length 8.1mm
PCB LAYOUT
02
04
06
08
10
CODE OF
2
DX48HS...
Terminal Length 6.7mm
PCB LAYOUT
How to order:
1
2
3
4
5
Material:
Item Description Materials
1
Cover
High-Temp.
Thermoplastic
LCP
2
Actuator
High-Temp.
Thermoplastic
LCP
3
Contact
Phosphor Bronze
4
Terminal
Brass
5
Base
High-Temp.
Thermoplastic
LCP
6
Tape
Katpon
Br < 900 ppm
Cl < 900 ppm
Br+Cl < 1500 ppm
DX48H
1
Treatment
Molded Black
L
S
2
TERMINAL LENGTH:
8.1 mm
6.7 mm
NO. OF POSITIONS:
2 Positions
4 Positions
6 Positions
8 Positions
10 Positions
ACTUATOR POSITION:
F
In OFF Position (Standard)
O
In ON Position
4
SEAL:
N
Regular (Standard)
T
Top Tape Sealed
3
5
PACKAGE STYLE:
TB
Tube
TR
Tape & Reel
Molded White
Gold Plated
Gold Plated
Molded Black
02
04
06
08
10
Note:
> General Tolerance: +/-0.2mm
> Unit in mm and inch (bracketed)
sales@greatecs.com
www.greatecs.com
1
DIP Switches
SMT Half Pitch Type Halogen-Free DIP Switches
DX48H Series
SPECIFICATIONS
1.
Style:
This specification describes "SMT HALF PITCH TYPE DIP SWITCHES”
mainly used as signal switch of electric devices, with the general
requirements of mechanical and electrical characteristics.
1.1 Operating Temperature Range : -40 ~+85
1.2 Storage Temperature Range :-40 ~+85
2.
Current Range:
2.1 Non-Switching: 100mA, 50V DC
2.2 Switching: 25mA, 24V DC
3.
Type of Actuation:
Actuated by sliding
4.
Test Sequence:
TEST CONDITIONS
REQUIREMENTS
ITEM DESCRIPTION
1.
MELECTRIC PERFORMANCE
Visual
Examination
2.
Contact
Resistance
There shall be no
By visual examination check without defects that affect the
any out pressure & testing.
serviceability of the
product.
1)To be measured between the two
terminals associated with each
switch pole.
100m max. (initial)
2)Measurements shall be made with
a 1 kHz shall current contact
resistance meter.
500 V DC , 1 minute±5 sec.
300 V AC (50Hz or 60 Hz) shall be
applied between all the adjacent
terminals and between the terminal
and the frame for 1 minute.
1MHz±10kHz
100M
min
3.
Insulation
Resistance
Dielectric
4.
withstanding
Voltage
5.
Capacitance
There shall be no
breakdown or flashover.
5 pF max.
sales@greatecs.com
www.greatecs.com
2
DIP Switches
SMT Half Pitch Type Halogen-Free DIP Switches
DX48H Series
Applied in the direction of operation.
ON OFF
30°~120°
OFF ON
6
Operation
Force
500 gf max
4.9N max
MECHANICAL PERFORMANCE
7
Stop
Strength
1 kgf is applied in the operating direction
There shall be no sign of
and pulling direction operated for a
damage mechanically.
period of 15 seconds.
1)Soldering Temperature :
PROD
SMT TYPE TERMINAL
SERIES
TEMP
260±5
TIME
5~10sce
2)Duration of Solder Immersion:
5±1seconds.
3)Frequency of Solder Process:
1 times max.
(PCB is 1.6 mm in thickness.)
Shall be vibrated in accordance with
Method 201A of MIL-STD-202F
1)Frequency: 10-55-10 Hz 1 min/cycle.
2)Direction: 3 vertical directions
including the direction of operation
3)Test Time: 2 hours each direction.
Shall be shocked in accordance with
Method 213B Condition A of MIL-STD-
202F
1)Acceleration : 50G
2)Action Time : 11±1 m seconds
3)Testing Direction : 6 sides
4)Test cycle : 3 times in each direction
Soldering
8
Heat
Resistance
1)As shown in item 3~6
2)Contact Resistance: 2
max.
(final-after test)
1)As shown in item 2~6
2)Contact Resistance: 2
max.)
(final-after test)
9
Vibration
10 Shock
1)As shown in item 2~6
2)Contact Resistance: 2
max.
(final-after test)
sales@greatecs.com
www.greatecs.com
3
DIP Switches
SMT Half Pitch Type Halogen-Free DIP Switches
DX48H Series
WEATHER-PROOF
Measurements shall be made
following
the test set forth below:
1)25mA,24 V DC resistive load
11
Operation Life
2)Rate of Operation : 15~20
cycles/minute
3)Cycle of Operation :
1000 cycles
Following the test set forth below the
sample shall be left in normal
temperature and humidity conditions
Resistance Low
for an hour before measurements are
12
Temperature
made :
1)Temperature : -40±3
2)Time : 96 hours
DURABILITY
1)As shown in item
3,4
2)Contact Resistance:
2 max.
(final-after test)
1)As shown in item
2~6
2)Contact Resistance:
2 max.
(final-after test)
Following the test set forth below the
1)As shown in item
sample shall be left in normal
3~6
Resistance High
temperature and humidity conditions for
13
an hour before measurements are made : 2)Contact Resistance :
Temperature
2 max.
1)Temperature :85±2
(final-after test)
2)Time : 96 hours
14
Resistance
Humidity
1)As shown in item
Following the test set forth below the
sample shall be left in normal
4~6
temperature and humidity conditions for 2)Contact Resistance :
an hour before measurements are made : 2 max.
1)Temperature : 40±2
3)Insulation
2)Relative Humidity : 90~95%
Resistance:
3)Time : 96 hours
10 M min .
sales@greatecs.com
www.greatecs.com
4
DIP Switches
SMT Half Pitch Type Halogen-Free DIP Switches
DX48H Series
5.
SOLDERING CONDITIONS:
Condition for Soldering
MAX 260°
255°
230°
150°
Room
Temperature
120~150sec
60sec
5~10sec
TIME(sec)
The condition mentioned above is the temperature on the Cu foil of the PCB surface.
There are cases where board's temperature greatly differs from switch's surface
temperature depending on board's material, size, thickness, etc. Care, therefore,
should be used not to allow switch's surface temperature to exceed 260 .
Manual Soldering
Soldering Temperature
Continuous Soldering Time
Max,350
Max,5 seconds
Precautions in Handling
1. Care should be exercised so that flux from the upper part of the printed circuit board
does not adhere to the switch.
2.
Don’t clean the switch body except with top tape sealed type, which can only spray of
cleaning method from top of s/w.
3.
Slide the DX48 actuator from
sec operation.
Z axial direction with in 30°~120°of max 300 gf / 10
30°~12
4. The suggest tool for actuator adjust is as below. ( example for 4 position )
sales@greatecs.com
www.greatecs.com
5
