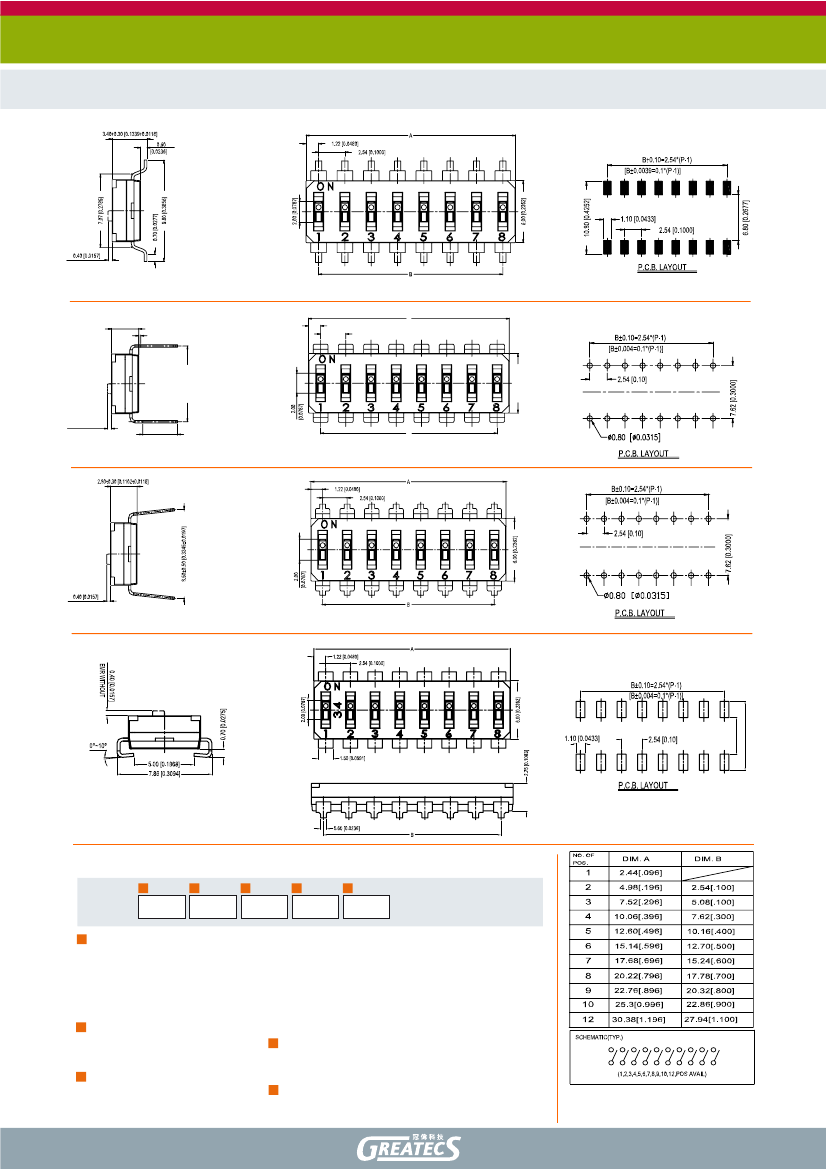

DIP Switches
End Stackable DIP Switches
DX5 Series
DX5S
SMT Terminals
A
2.80±0.30 [0.1102±0.0118]
0.20 [0.0079]
1.22 [0.0480]
2.54 [0.1000]
6.00 [0.2362]
0.40 [0.0157]
B
3.50±0.25 [0.1378±0.0098]
DX5T7
THT Terminals Pitch 7.62mm
DX5T8
THT Terminals Pitch 8.50mm
7.62 [0.3000]
TYP
DX5J
SMT Terminals J-Bending
How to order:
1
2
3
4
5
DX5
1
S
T7
T8
J
2
TYPE OF TERMINALS:
SMT
THT Pitch 7.62mm
THT Pitch 8.50 mm
SMT J-Bending
(Only 4, 8 & 10 positions)
ACTUATOR TYPE:
Raised Actuator
Recessed Actuator
NO. OF POSITIONS:
1 Positions
2 Positions
3 Positions
04
05
06
07
08
09
10
12
4
4 Positions
5 Positions
6 Positions
7 Positions
8 Positions
9 Positions
10 Positions
12 Positions
SEAL:
Regular (Standard)
Top Tape Sealed (Only for recessed actuators)
PACKAGE STYLE:
Tube
Tape & Reel (Only for SMT terminals)
All dimensions are in millimeters, bracketed dimensions
are in inches.
General tolerances max.
±
0.20mm.
RA
RC
3
N
T
5
01
02
03
TB
TR
sales@greatecs.com
www.greatecs.com
4.50[0.1772]
8.50[0.3346]
1
DIP Switches
End Stackable DIP Switches
DX5 Series
SPECIFICATIONS
1.Style:
This specification describes "DUAL IN-LINE PACKAGE SWITCHES" mainly used
as signal switch of electric devices with the general requirements of mechanical
and electrical characteristics.
1.1 Operating Temperature Range : -20 ~ +85
1.2 Storage Temperature Range : -40 ~ +85
2.
Current Range :
2.1 Non-Switching : 100mA, 50V DC
2.2 Switching
: 25mA , 24V DC
3.
Type of Actuation:
Actuated by sliding
4.
Test Sequence
:
ITEM DESCRIPTION
1
TEST CONDITIONS
REQUIREMENTS
There shall be no
defects that affect the
serviceability of the
product.
ELECTRIC PERFORMANCE
Visual
By visual examination check without
Examination any out pressure & testing.
2
3
4
5
MECHANICAL
PERFORMANCE
6
1)To be measured between the two
terminals associated with each
Contact
switch pole.
100m max. (initial)
Resistance 2)Measurements shall be made with a
1kHz shall current contact resistance
meter.
Insulation
500V DC, 1 minute ± 5 sec.
100M min.
Resistance
500V AC (50Hz or 60 Hz) shall be
Dielectric
There shall be no
applied between all the adjacent
withstand-
breakdown or
terminals and between the terminal
ing Voltage
flashover.
and the frame for 1 minute.
Capacitance 1 MHz ± 10 kHz
5 pF max.
Applied in the direction of operation.
ON OFF
1000gf max
Operation OFF ON
Force
9.8N max
sales@greatecs.com
www.greatecs.com
2
DIP Switches
End Stackable DIP Switches
DX5 Series
7
Stop
Strength
A static load of 1 kgf is applied in the
operating direction and pulling direction
operated for a period of 15 seconds.
1)Soldering Temperature :
PROD SERIES
THROUGH HOLE
TYPE
There shall be no sign of
damage mechanically.
TEMP
260
±5
TIME
5±1 sec.
MECHANICAL PERFORMANCE
Soldering
Heat
8
Resistance
SMT TYPE
SEE PAGE 4
9
10
11
DURABILITY
12
2)Duration of Solder Immersion:
5±1 sec.
3)Frequency of Soldering Process:
2 times max.
(PCB is 1.6mm in thickness.)
Shall be vibrated in accordance with
Method 201A of MIL-STD-202F
1)Frequency: 10-55-10 Hz 1 min/cycle.
As shown in item 2~6
Vibration
2)Direction: 3 vertical directions including the
direction of operation.
3)Test Time: 2 hours each direction.
Shall be shocked in accordance with Method
213B condition A of MIL-STD-202F
1)Acceleration: 50G.
Shock
As shown in item 2~6
2)Action Time : 11 ± 1 m sec.
3)Testing Direction: 6 sides.
4)Test cycle: 3 times in each direction
THT Soldering Temperature:245±3
Lead-Free solder M705E JIS Z 3282
No anti-soldering and the
Class A
coverage of dipping into
Solderability (Tin 96.5% Silver 3% Copper 0.5%)
solder must more than 75%
SMT SEE PAGE 4
Flux: 5-10 seconds.
was requested.
Duration of solder Immersion:
5±1 sec.
Measurements shall be made following
1)As show in item 3,4
the test set forth below:
Operation 1)25 mA, 24V DC resistive load
2)Contact Resistance:
)2)Rate of Operation: 15~20 cycles/ minute 500m max.
Life
3)Cycle of Operation: 2000 cycles.
(final-after test)
1)Contact Resistance :
200m Max
2)As shown in item 3~6
sales@greatecs.com
www.greatecs.com
3
DIP Switches
End Stackable DIP Switches
DX5 Series
Following the test set forth below the
sample shall be left in normal temperature
and humidity conditions for an hour
As shown in item 2~6
before measurements are made :
1)Temperature : -40 ±3
2)Time: 96 hours
F
ollowing the test set forth below the
sample shall be left in normal temperature
1)As shown in item 3~6
and humidity conditions for an hour
2)Contact Resistance:
before measurements are made :
100m max.
1)Temperature : 85 ±2
2)Time: 96 hours
Resistance
Low
13
Temperature
WEATHER-PROOF
Resistance
High
14
Temperatur
e
Following the test set forth below the sample 1)As shown in item 4,6
2)Contact Resistance:
shall be left in normal temperature and
100m max.
humidity conditions for an hour before
Resistance
3)Insulation Resistance:
15
Humidity measurements are made :
1)Temperature : 40 ±2
10M min.
2)Relative Humidity :90~95%
3)Time: 96 hours
MAX 260°
255°
230°
150°
Room
Temperature
120~150sec
60sec
5. SOLDERING CONDITIONS:
Condition for Soldering – SMT Terminals
5~10sec
TIME(sec)
The condition mentioned above is the temperature on the Cu foil of the P.C.B surface.
There are cases where board’s temperature greatly differs from switch’s surface
temperature depending on board’s material, size, thickness, etc. Care, therefore,
should be used not to allow switch’s surface temperature to exceed 260 .
Manual Soldering
(THT Terminals)
Soldering Temperature
Continuous Soldering Time
Max.350
Max. 5 seconds
Precautions in Handling
1. Care should be exercised so that flux from the upper part of the printed
circuit board does not adhere to the switch.
2. Don’t clean the switch body except with top tape sealed type, which can
only spray of cleaning method from top of s/w.
3. Please make sure that there is no flux rose over the surface of the PCB
sales@greatecs.com
www.greatecs.com
4
DIP Switches
End Stackable DIP Switches
DX5 Series
ITEM
1.
2.
3.
4.
5.
6.
DESC.
COVER
CONTACT
ACTUATOR
TERMINAL
BASE
TAPE
Q’TY
1
*
*
1
1
1
MATERIALS
HIGH – TEMP.
THERMOPLASTIC
PA-9T UL 94V-0
COPPER
THERRMOPLASTIC
LCP UL 94V-0
BRASS
HIGH – TEMP.
THERMOPLASTIC
PA9T UL 94V-0
KAPTON
TREATMENT
MOLDED BLACK
GOLD PLATED AT
CONTACT AREA.
MOLDED WHITE
GOLD PLATED
MOLDED BLACK
-
REMARK
-
-
-
-
-
-
sales@greatecs.com
www.greatecs.com
5
