2 mm pitch connector
Cable assembly
LPC-B( )( )( )-( )( )( )
●
Configuration of product Part No.
For 1 mm pitch flat cable
IDC
LPC-B ( ) ( ) ( )- ( ) ( ) ( )
➀
➁
➂
➃
➄
➅
¶
¡ Series name
™ No. of contacts: 10, 12, 14, 16, 20, 22, 24, 26, 30, 36, 40, 44 or 50
£ Strain relief
A : Not provided RA: Provided
B : Not provided RB: Provided
C: Not provided RC: Provided
¢ Contact plating
G1: Contact area 0.2µm Gold plate
G2: Contact area 0.05µm Gold plate
∞ Cable length unit: cm
§ Type of cables
Blank: Flat cable (made by Oki Electric Cable)
K1 : Reed-screen type flat cable (made by Oki Electric Cable)
¶ Signage indicates that the product adopts the RoHS Directive.
Blank: When contact plating is “G1”, signage is not provided.
+
: When contact plating is “G2”, signage is provided.

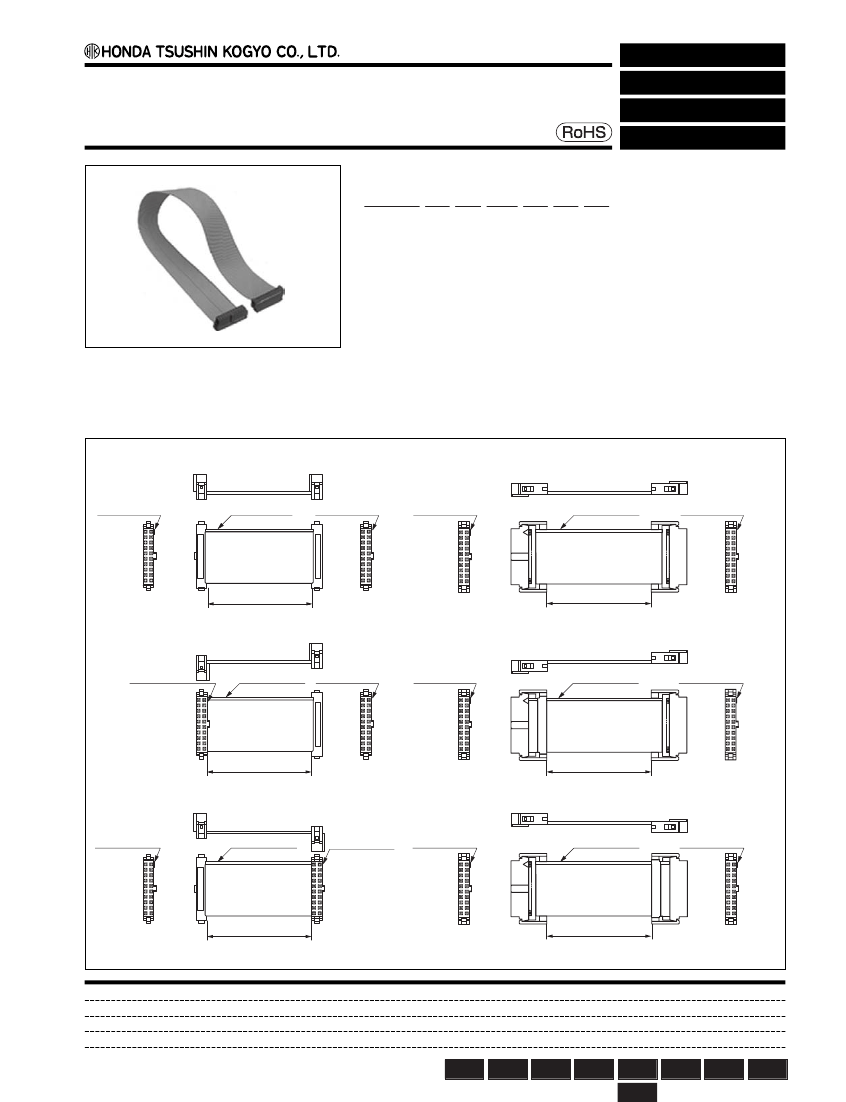

A type
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
Coloring line
First cable
HONDA LPC JAPAN
RA type
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
Coloring line
First cable
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
HONDA LPC JAPAN
POS.#n
POS.#n-1
L(cm)
POS.#n
POS.#n-1
POS.#n
POS.#n-1
L(cm)
POS.#n
POS.#n-1
B type
Triangle mark
POS.#2
POS.#4
Coloring line
First cable
POS.#1
POS.#3
POS.#n-1
L(cm)
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
RB type
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
Coloring line
First cable
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
HONDA LPC JAPAN
POS.#n
POS.#n
POS.#n-1
POS.#n
POS.#n-1
L(cm)
POS.#n
POS.#n-1
C type
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
Coloring line
First cable
HONDA LPC JAPAN
RC type
Triangle mark
POS.#1
POS.#3
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
Coloring line
First cable
Triangle mark
POS.#2
POS.#4
POS.#1
POS.#3
POS.#2
POS.#4
POS.#n
L(cm)
POS.#n
POS.#n-1
POS.#n-1
POS.#n
POS.#n-1
L(cm)
POS.#n
POS.#n-1
Mating connectors:
LPC-B series male connectors for PCB
Others
Wire
wrapping Crimping Soldering
IDC
Press-in
SMT
Through
hole
