BA6235F-T1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6235F-T1

Preview

BA6235F-T1: DescriptionBrush DC Motor Controller, PDSO8, SOP-8; CategoryOther integrated circuit (IC) The signal circuit; File Size72KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BA6235F-T1 Overview

Brush DC Motor Controller, PDSO8, SOP-8

BA6235F-T1 Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G8
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply voltage (Vsup)	5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm

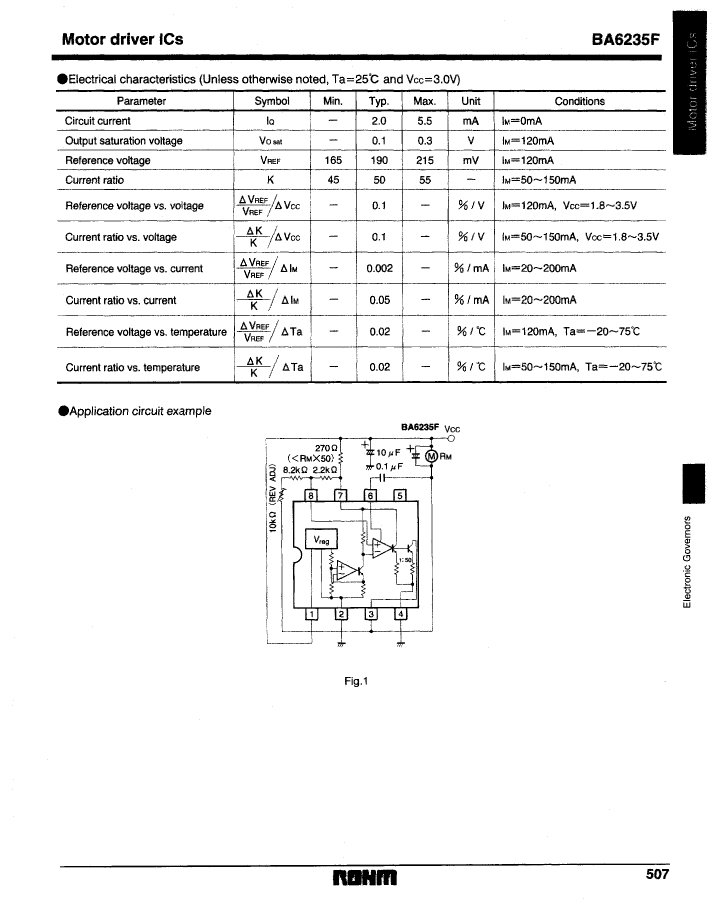

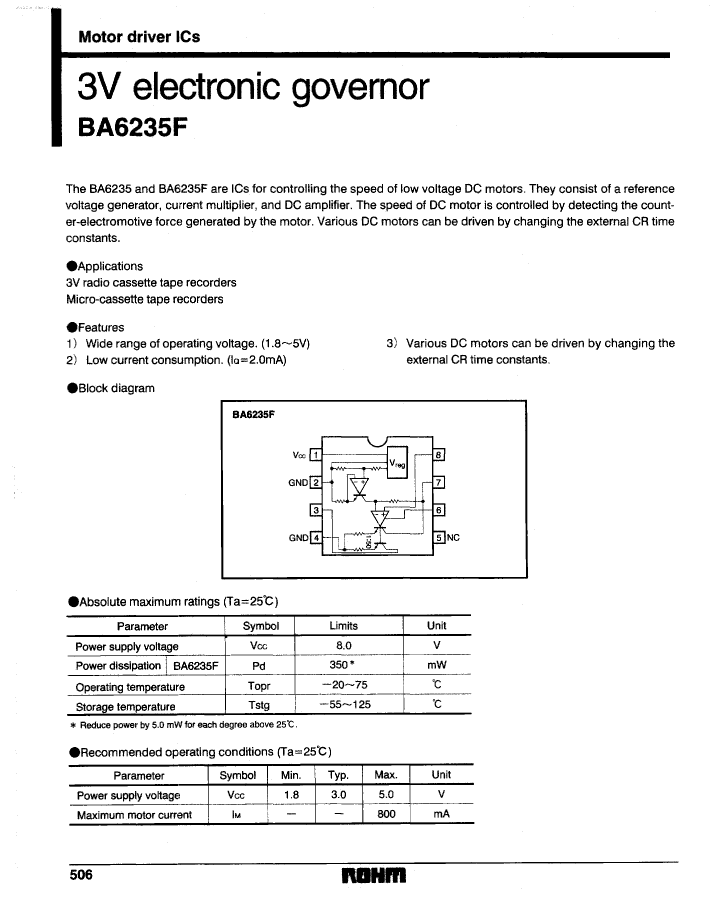

BA6235F-T1 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BA6235F-T1 Related Products

	BA6235F-T1	BA6235F-E1	BA6235FE2	BA6235FE1	BA6235FT1
Description	Brush DC Motor Controller, PDSO8, SOP-8	Brush DC Motor Controller, PDSO8, SOP-8	BRUSH DC MOTOR CONTROLLER, PDSO8, SOP-8	BRUSH DC MOTOR CONTROLLER, PDSO8, SOP-8	BRUSH DC MOTOR CONTROLLER, PDSO8, SOP-8
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	LSOP,	LSOP,	LSOP,	LSOP,	LSOP,
Contacts	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	5 mm	5 mm	5 mm	5 mm	5 mm
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.6 mm	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm
