QS3244Q: DescriptionBus Driver, 3244 Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20,; Categorylogic logic; File Size195KB，4 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS3244Q Overview

Bus Driver, 3244 Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20,

QS3244Q Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
package instruction	SSOP, SSOP20,.25
Reach Compliance Code	unknown
Other features	TTL COMPATIBLE BUS SWITCH
series	3244
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	0.25 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

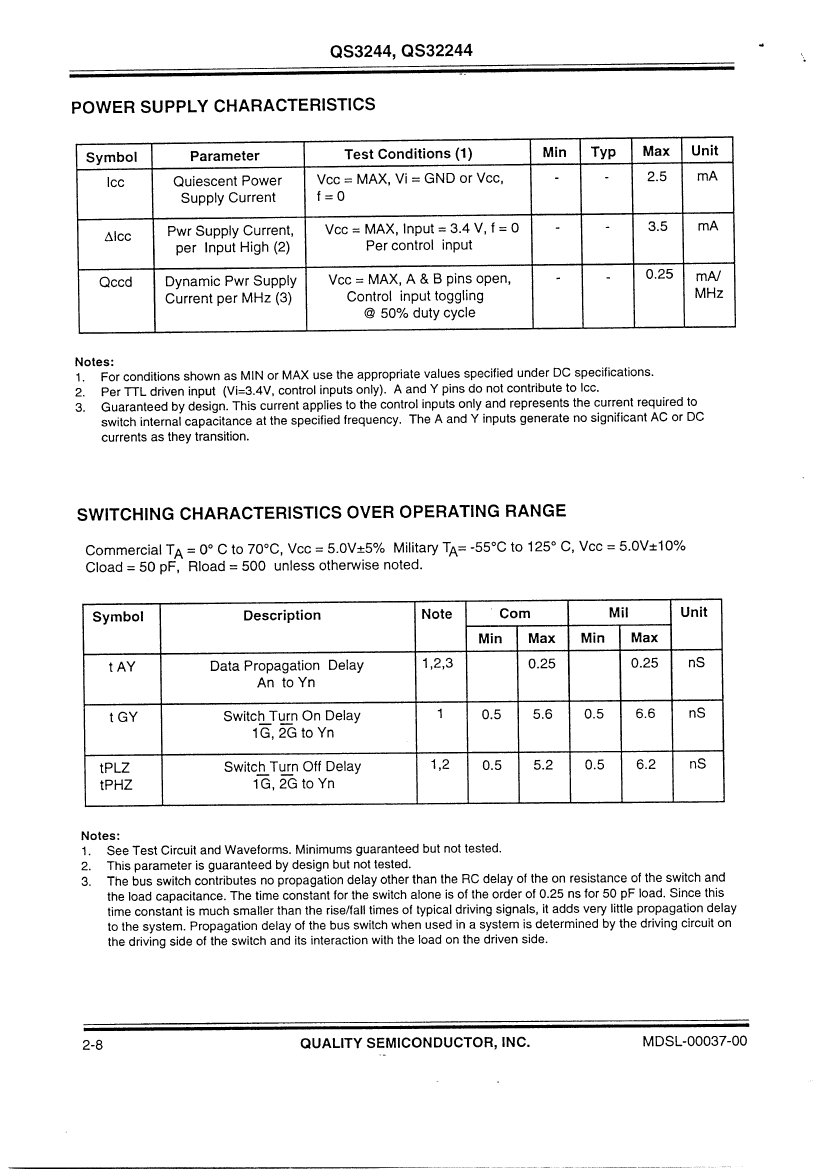

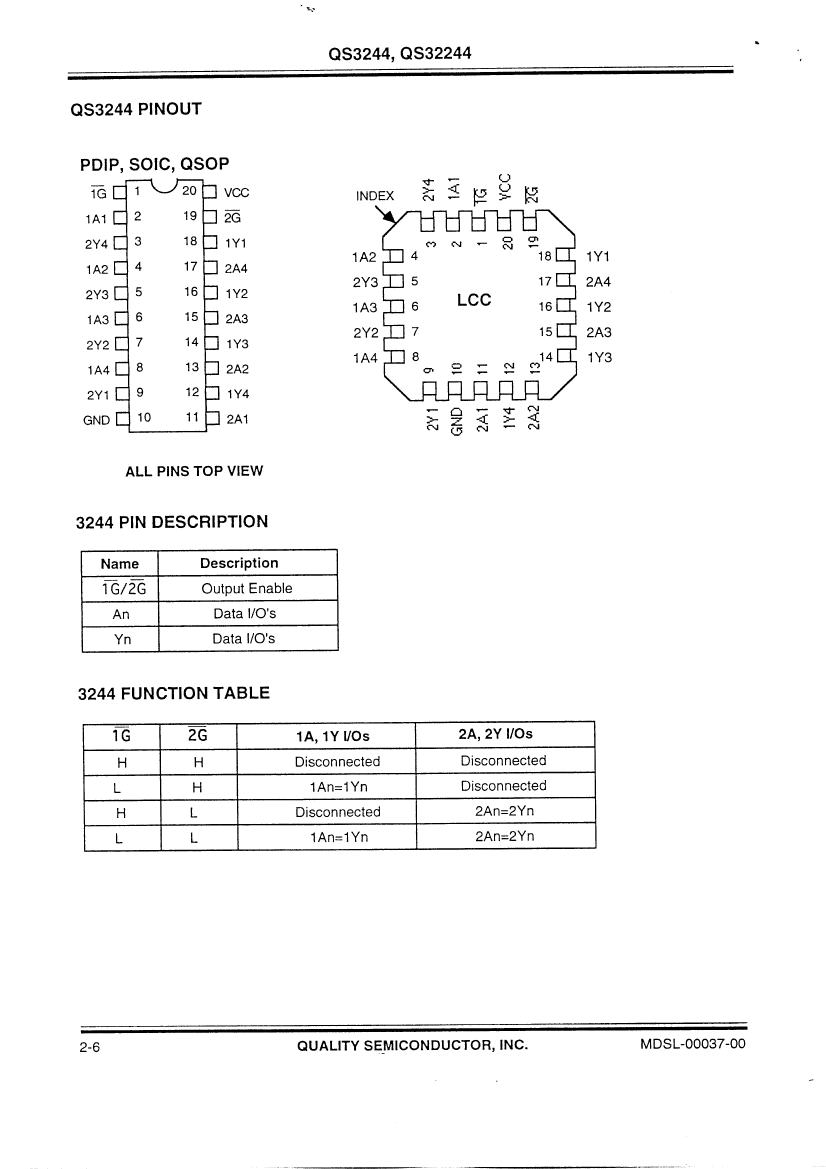

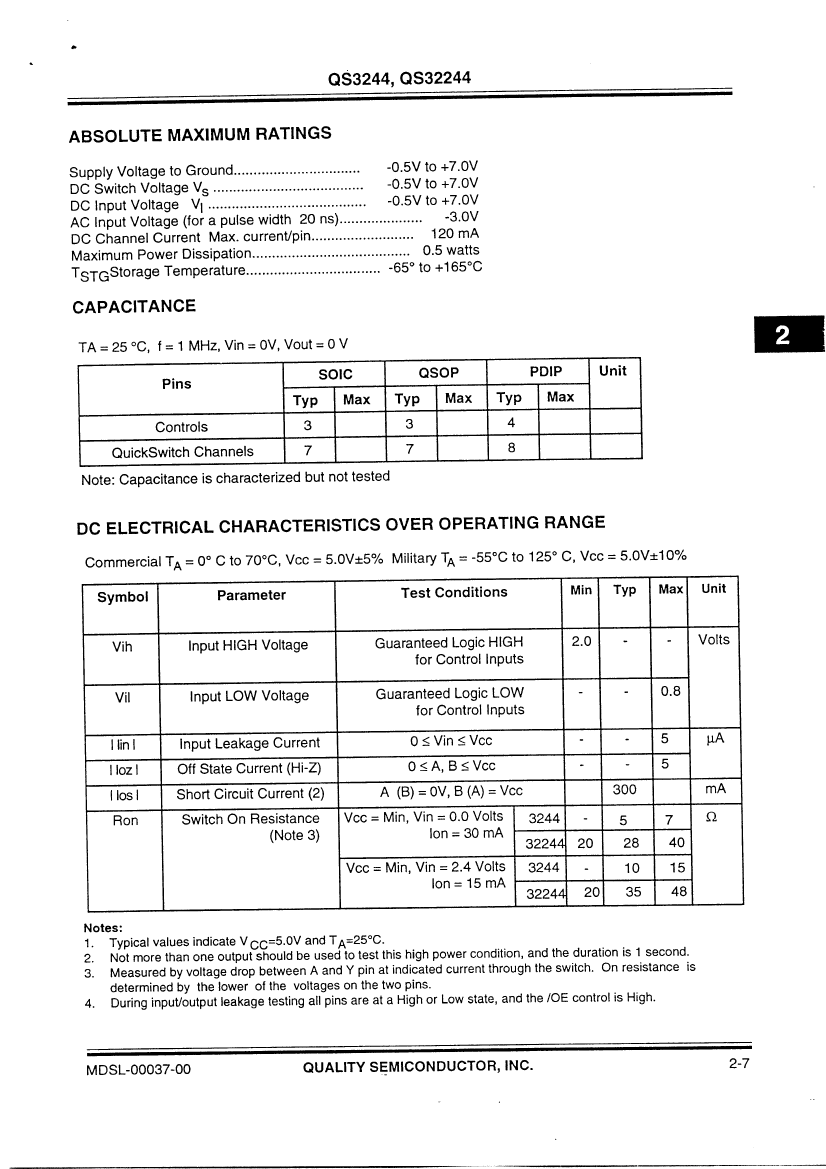

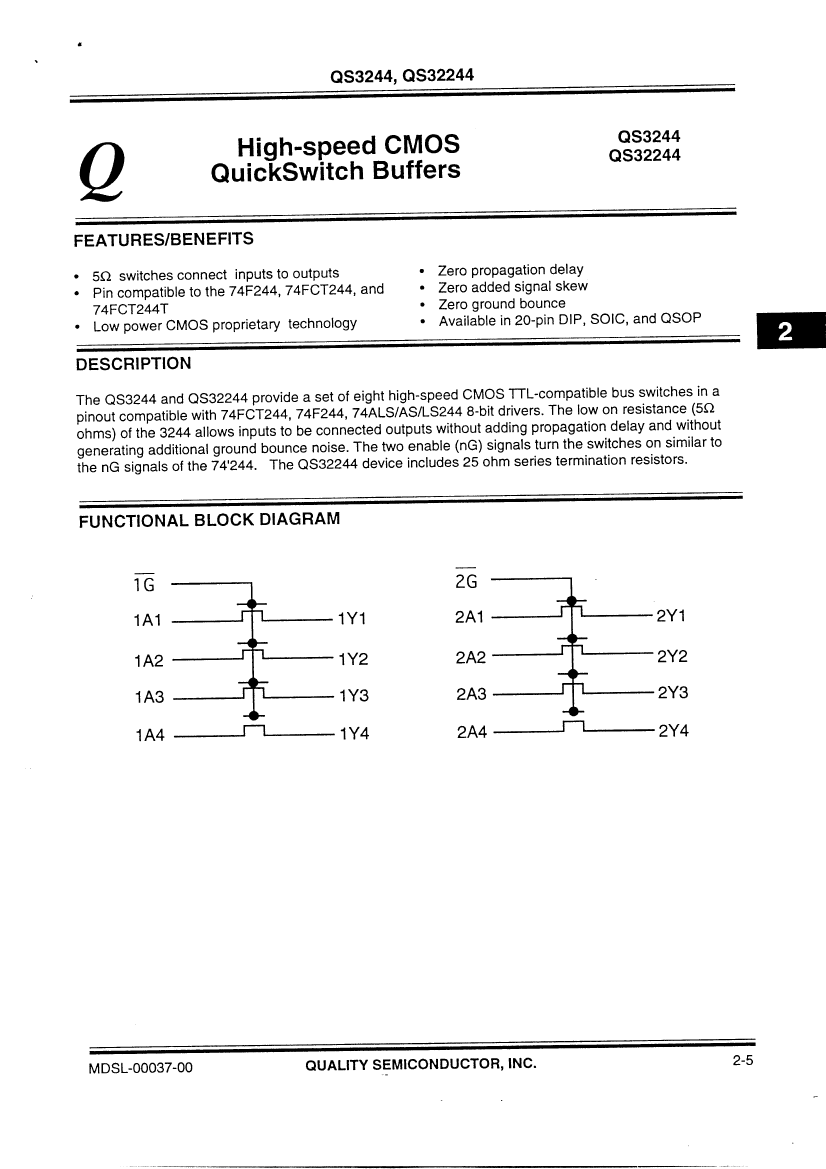

QS3244Q Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

QS3244Q Related Products

	QS3244Q	QS32244Q
Description	Bus Driver, 3244 Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20,	Bus Driver, 32244 Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible
Maker	Quality Semiconductor Inc	Quality Semiconductor Inc
package instruction	SSOP, SSOP20,.25	SSOP, SSOP20,.25
Reach Compliance Code	unknown	unknown
Other features	TTL COMPATIBLE BUS SWITCH	BUS SWITCH
series	3244	32244
JESD-30 code	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	4	4
Number of functions	2	2
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Encapsulate equivalent code	SSOP20,.25	SSOP20,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
propagation delay (tpd)	0.25 ns	1.25 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
