Technical Data Sheet
333-2UTC/S400-A6

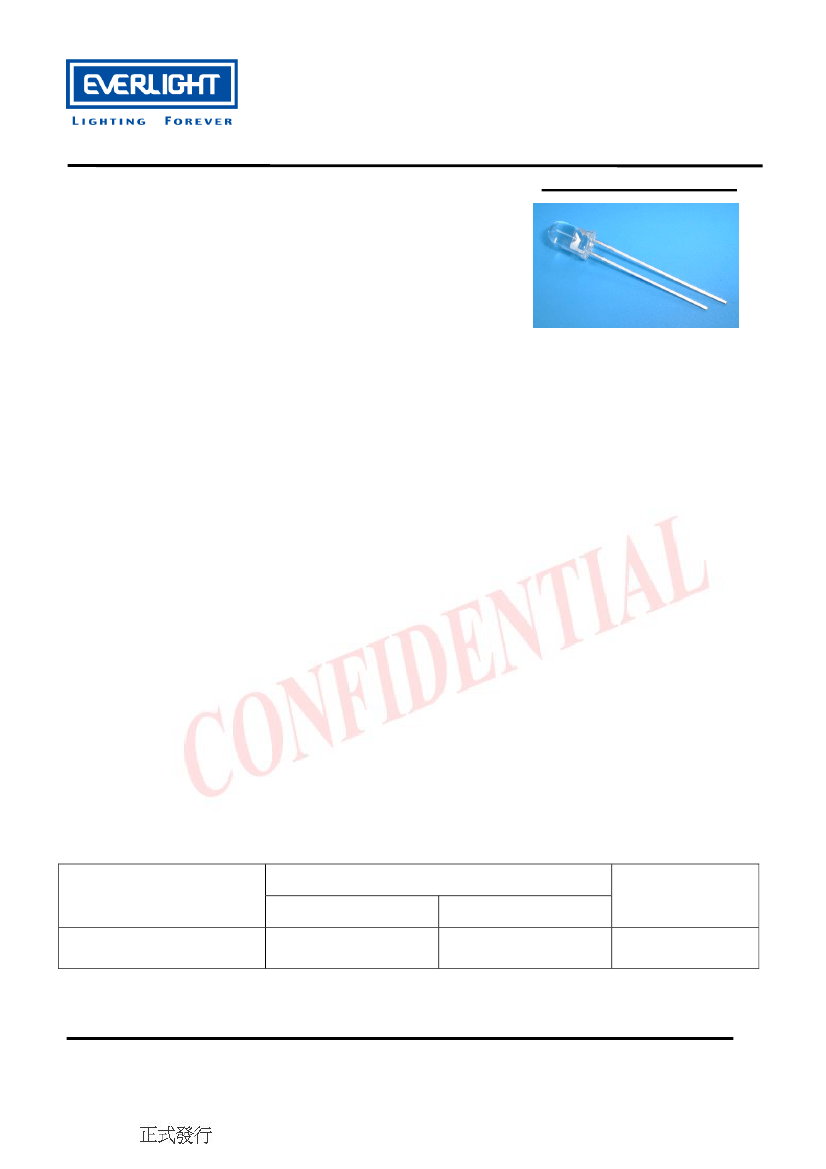

Features
․Popular
T-1 3/4 round package.
․High
luminous power.
˙Typical
chromaticity coordinates x=0.29, y=0.30
according to CIE1931.
˙Bulk,
available taped on reel.
˙ESD-withstand
voltage: up to 4KV
․The
product itself will remain within RoHS compliant version.
Descriptions
˙The
series is designed for application required
high luminous intensity.
˙The
phosphor filled in the reflector converts the
blue emission of InGaN chip to ideal white.
Applications
․Message
panels
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
Chip
PART NO.
Material
333-2UTC/S400-A6
InGaN
Emitted Color
White
Water Clear
Lens Color
Everlight Electronics Co., Ltd.
Device Number
DLE-0001289
http\\:www.everlight.com
Established date: 04-16-2009
Rev
1
Page: 1 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-04-23 23:38:35.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
333-2UTC/S400-A6
Package Dimensions

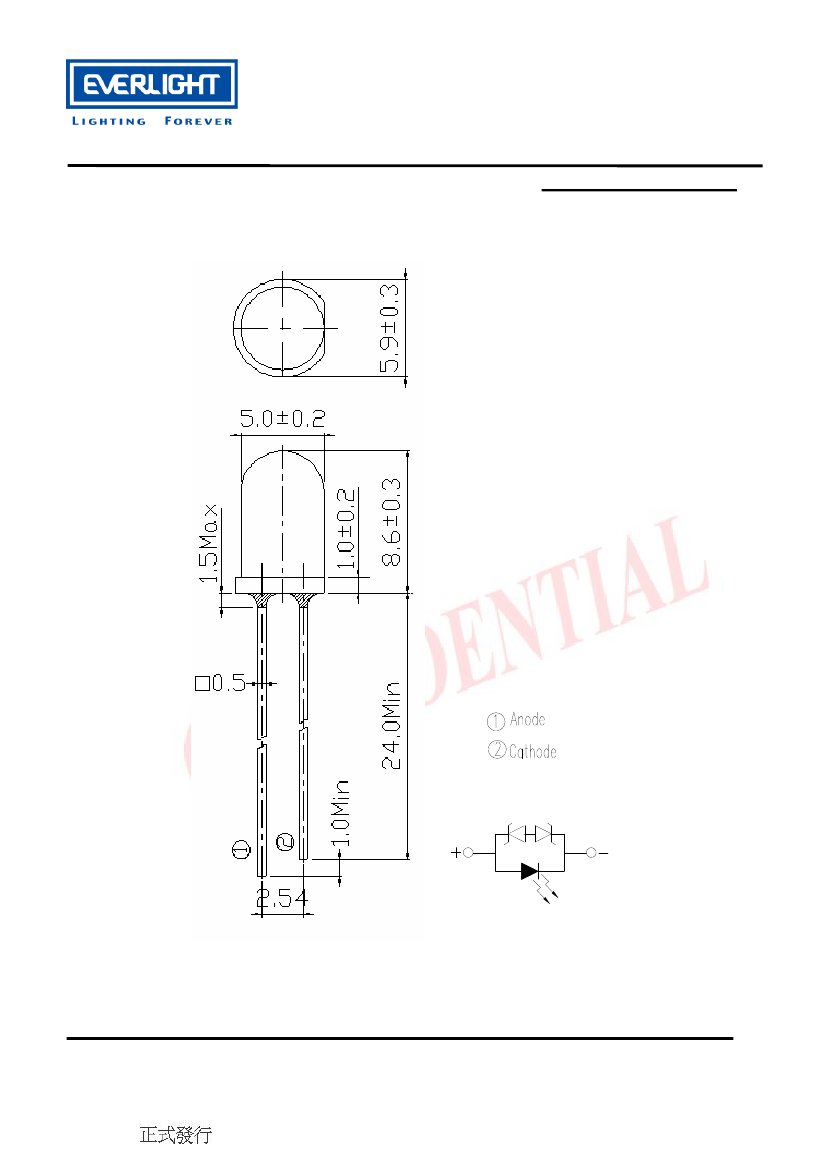

Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Everlight Electronics Co., Ltd.
Device Number
DLE-0001289
http\\:www.everlight.com
Established date: 04-16-2009
Rev
1
Page: 2 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-04-23 23:38:35.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
333-2UTC/S400-A6
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current(Duty /10 @ 1KHZ)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (T=5 sec)
Power Dissipation
Zener Reverse Current
Electrostatic Discharge
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
P
d
Iz
ESD
Rating
30
100
5
-40 ~ +85
-40 ~ +100
260
110
100
4K
Unit
mA
mA
V
℃
℃
℃
mW
mA
V
Everlight Electronics Co., Ltd.
Device Number
DLE-0001289
http\\:www.everlight.com
Established date: 04-16-2009
Rev
1
Page: 3 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-04-23 23:38:35.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
333-2UTC/S400-A6
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Symbol
V
F
I
R
I
V
2θ1/2
x
I
F
=20mA
y
--
0.30
--
--
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
Min.
2.8
--
3600
--
--
Typ.
--
--
--
15
0.29
Max.
3.6
50
9000
--
--
Units
V
uA
mcd
deg
--
Chromaticity
Coordinates
Everlight Electronics Co., Ltd.
Device Number
DLE-0001289
http\\:www.everlight.com
Established date: 04-16-2009
Rev
1
Page: 4 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-04-23 23:38:35.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
333-2UTC/S400-A6
Luminous Intensity Combination (
mcd at 20mA)
Rank
H1
H2
J1
J2
Min
3600
4500
5650
7150
Max
4500
5650
7150
9000
*Measurement Uncertainty of Luminous Intensity: ±10%
Forward Voltage Combination (
V at 20mA)
Rank
0
1
2
3.2~3.4
3
3.4~3.6
Forward Voltage
2.8~3.0
3.0~3.2
*Measurement Uncertainty of Forward Voltage：±0.1V
