SK155: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 50V V(RRM), Silicon, SMCJ, MODIFIED DO-214AB, 2 PIN; CategoryDiscrete semiconductor diode; File Size119KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SK155 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 50V V(RRM), Silicon, SMCJ, MODIFIED DO-214AB, 2 PIN

SK155 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DO-214AB
package instruction	SMCJ, MODIFIED DO-214AB, 2 PIN
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW FORWARD VOLTAGE
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

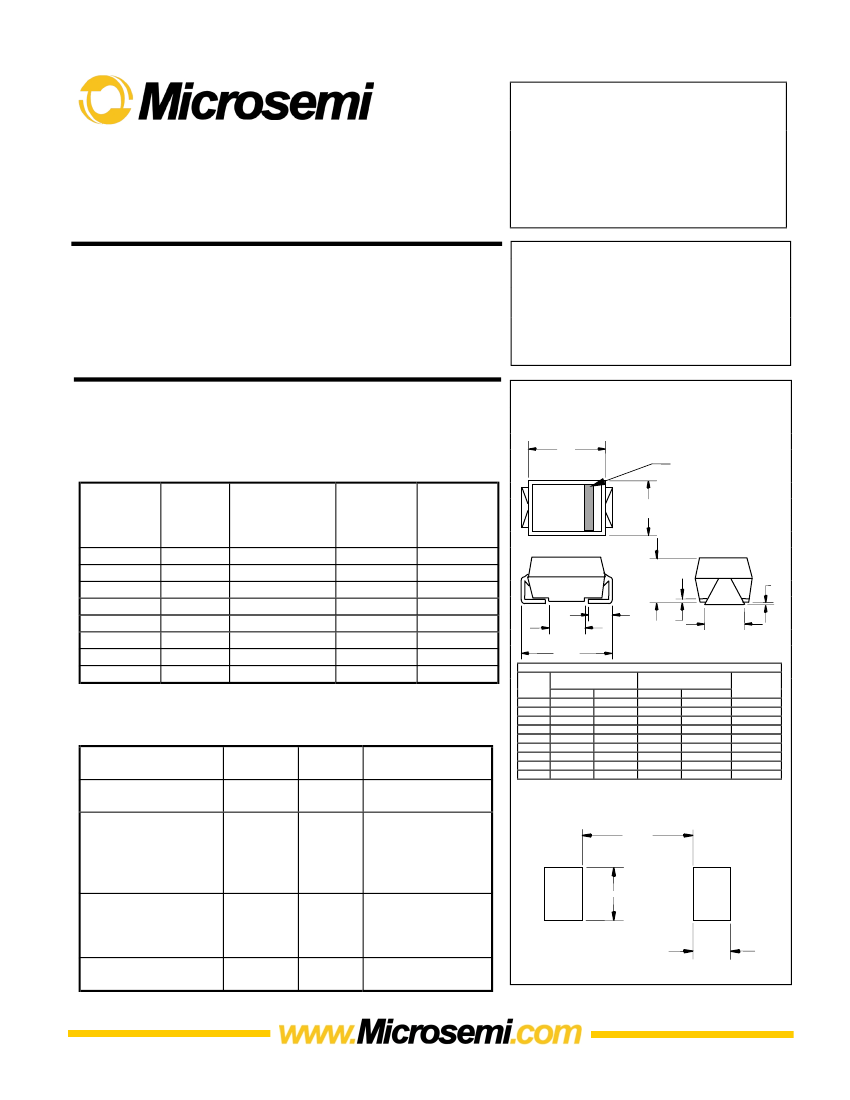

21201 Itasca St.

Chatsworth, CA 91311

Phone: (818) 701-4933

Fax: (818) 701-4939

SK152

THRU

SK1545

15 Amp Schottky

Rectifier

20 to 100 Volts

DO-214AB (Modified)

(SMCJ Type)

Features

•

For Surface Mount Applications

Extremely Low Thermal Resistance

Easy Pick And Place

High Temp Soldering: 250°C for 10 Seconds At Terminals

High Current Capability With Low Forward Voltage

Maximum Ratings

•

Operating Temperature: -65°C to +175°C

Storage Temperature: -65°C to +175°C

Maximum Thermal Resistance; 8°C/W Junction To Lead

Microsemi

Part

Number

SK152

SK153

SK154

SK1545

SK155

SK156

SK158

SK1510

Maximum

Recurrent

Peak Reverse

Voltage

20V

30V

40V

45V

50V

60V

80V

100V

Maximum

RMS

Voltage

14V

21V

28V

31.5V

35V

42V

56V

70V

Maximum

Blocking

Voltage

20V

30V

40V

45V

50V

60V

80V

100V

DIM

Cathode Band

Device

Marking

SK152

SK153

SK154

SK1545

SK155

SK156

SK158

SK1510

DIMENSIONS

INCHES

MIN

.210

.199

.004

---

.063

.175

.318

.239

.234

MIN

5.33

5.05

.10

---

1.60

4.45

8.08

6.08

5.95

Electrical Characteristics @ 25°C Unless Otherwise Specified

Average Forward

F(AV)

15.0A

= 120°C

Current

Peak Forward Surge

FSM

300A

8.3ms, half sine

Current

Maximum

Instantaneous

Forward Voltage

.50V

= 15.0A;

SK152-1545

.75V

SK155-1510

= 25°C*

Maximum DC

.5mA

Reverse Current At

= 25°C

20mA

Rated DC Blocking

= 100°C

Voltage

Typical Junction

660pF Measured at

Capacitance

1.0MHz, V

=4.0V

*Pulse test: Pulse width 200

µsec,

Duty cycle 2%

MAX

.214

.203

.008

.02

.067

.179

.322

.243

.256

MAX

5.43

5.15

.20

.51

1.70

4.55

8.18

6.18

6.05

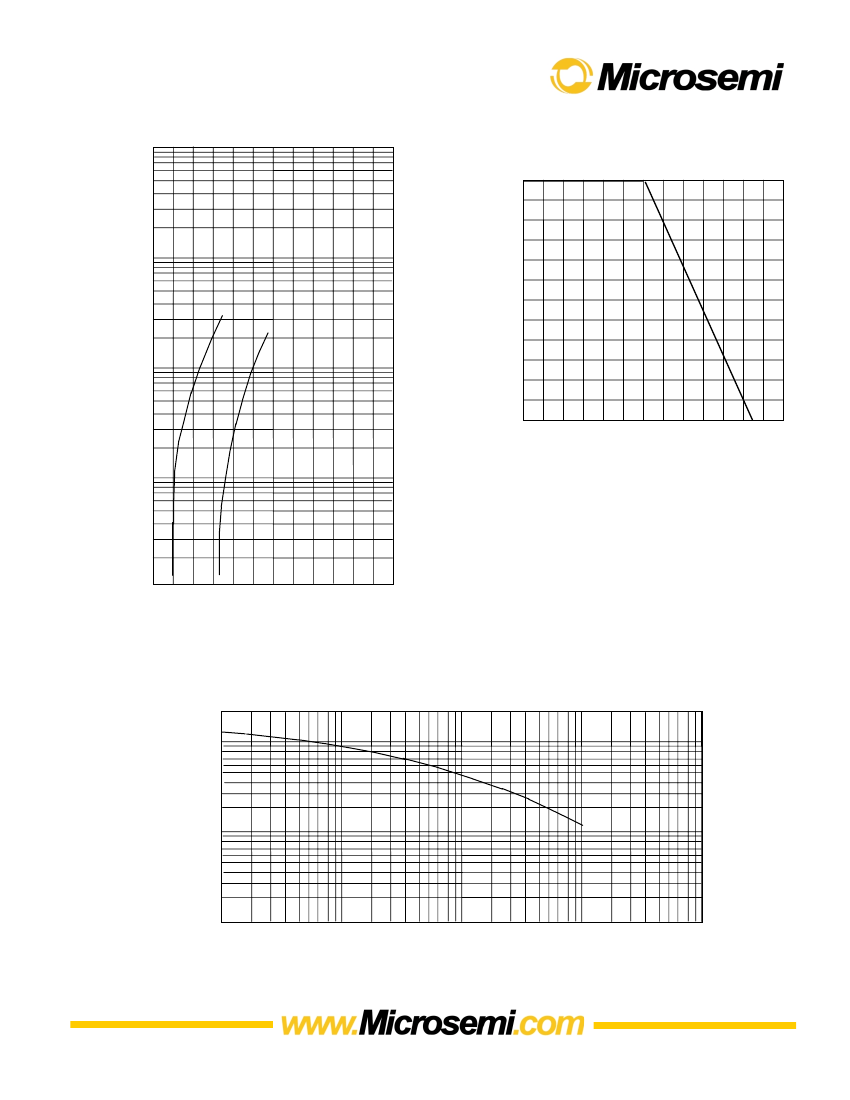

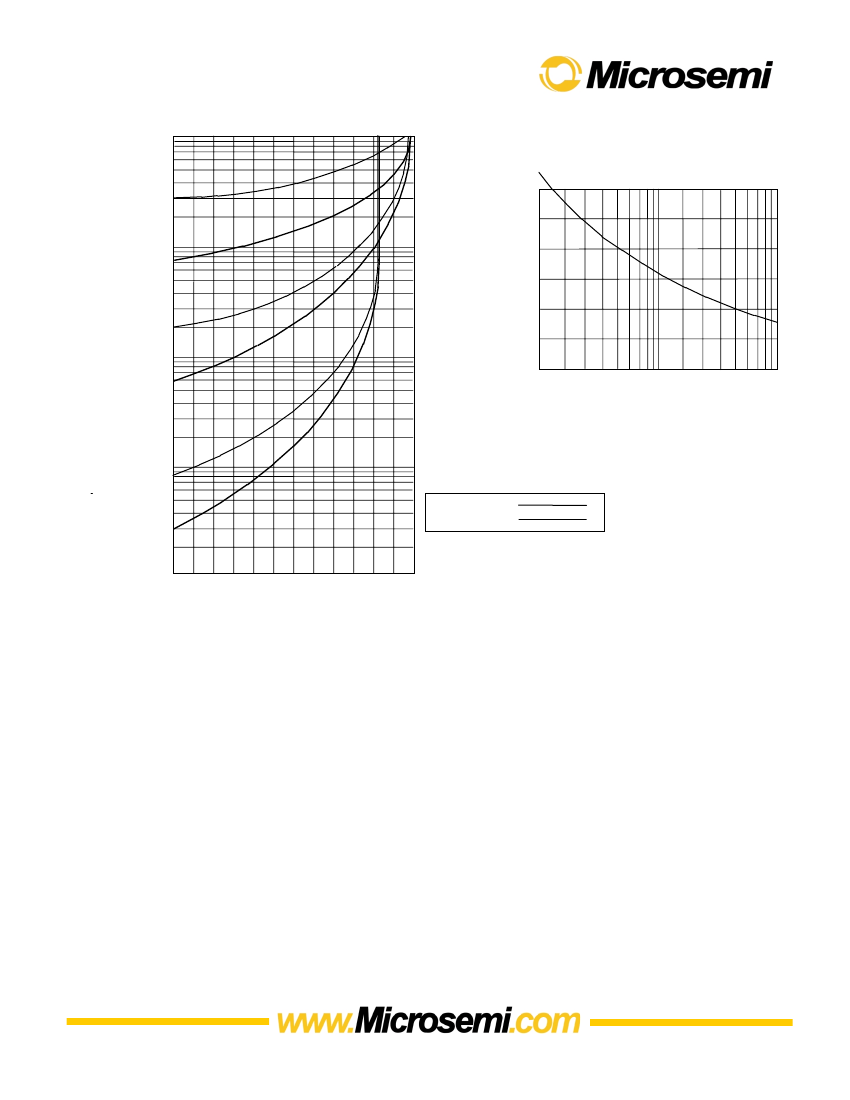

NOTE

SUGGESTED SOLDER

PAD LAYOUT

0.190”

0.215”

0.075”

SK155 Related Products

	SK155	SK1510	SK152	SK156	SK153	SK1545
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 50V V(RRM), Silicon, SMCJ, MODIFIED DO-214AB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 100V V(RRM), Silicon, SMCJ, MODIFIED DO-214AB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 20V V(RRM), Silicon, SMCJ, MODIFIED DO-214AB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 60V V(RRM), Silicon, SMCJ, MODIFIED DO-214AB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 30V V(RRM), Silicon, SMCJ, MODIFIED DO-214AB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 45V V(RRM), Silicon, SMCJ, MODIFIED DO-214AB, 2 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DO-214AB	DO-214AB	DO-214AB	DO-214AB	DO-214AB	DO-214AB
package instruction	SMCJ, MODIFIED DO-214AB, 2 PIN	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	SMCJ, MODIFIED DO-214AB, 2 PIN	SMCJ, MODIFIED DO-214AB, 2 PIN
Contacts	2	2	2	2	2	2
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW FORWARD VOLTAGE	LOW FORWARD VOLTAGE	LOW FORWARD VOLTAGE	LOW FORWARD VOLTAGE	LOW FORWARD VOLTAGE	LOW FORWARD VOLTAGE
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V	0.75 V	0.5 V	0.75 V	0.5 V	0.5 V
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	100 V	20 V	60 V	30 V	45 V
surface mount	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
