B84143-G36-R110: DescriptionThree Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE; CategoryAnalog mixed-signal IC filter; File Size556KB，14 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B84143-G36-R110 Overview

Three Phase EMI Filter, 300V, 50/60HzHz, METAL PACKAGE

B84143-G36-R110 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	compliant
Certification	UL
filter type	THREE PHASE EMI FILTER
high	150 mm
high potential	2700 V
Maximum leakage current	16 mA
length	250 mm
Manufacturer's serial number	B84143G
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L250.0XB60.0XH150.0 (mm)/L9.843XB2.362XH5.906 (inch)
Rated current	36 A
Rated voltage	300 V

B84143-G36-R110 Preview

EMC filters

3-line filters

for converters and power electronics

Series/Type:

Date:

B84143G*R110

May 2014

information contained therein without EPCOS' prior express consent is prohibited.

3-line filters

for converters and power electronics

B84143G*R110

Power line filters for 3-phase systems

Rated voltage U

R

: 520/300 V AC

Rated current I

R

: 8 A to 220 A

Construction

3-line filters

Metal case

Book size

Features

High insertion loss

Optimized leakage current

Space saving by optimized footprint

Litz wires on the load side reduce mounting time

Low weight

Degree of protection: IP 20

1)

Optimized for long motor cables

and operation under full load

Design complies with CSA C22.2 No.8

ENEC and UL approval (480 V)

Typical applications

Frequency converters for motor drives, e.g.

elevators, pumps, traction systems, conveyor systems,

HVAC systems (heating, ventilation and air

conditioning)

Wind farms

Power supplies

Terminals

Line: Terminal blocks

Load: Litz wires

Marking

Marking on component:

Manufacturer's logo, ordering code, rated voltage, rated

current, rated temperature, climatic category, date code,

approvals

Minimum data on packaging:

Manufacturer's logo, ordering code, quantity, date code

1) According to IEC 60529

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 2 of 14

3-line filters

for converters and power electronics

B84143G*R110

Typical circuit diagram

Filters for 8 A ... 25 A

Filters for 36 A ... 220 A

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 14

3-line filters

for converters and power electronics

B84143G*R110

Technical data and measuring conditions

Rated voltage V

R

520/300 V AC (50/60 Hz)

Rated voltage for IT mains supply Filters 8 A: Up to 480/275 V AC (50/60 Hz)

Filters 20 A ... 220 A: Up to 460/265 V AC (50/60 Hz)

Rated current I

R

Test voltage V

test

Overload capability (thermal)

Leakage current l

LK

Climatic category (IEC 60068-1)

Approvals

See also chapter "General technical information", section 7.

Referred to 40

°C

rated temperature

2250 V DC, 2 s (line/line)

2720 V DC, 2 s (lines/case)

1.5 I

R

for 3 min per hour or

2.5 I

R

for 30 s per hour

At V

R

and 50 Hz

25/100/21 ( 25

°C/+100 °C/21

days damp heat test)

IEC 60939, UL 1283 for 480 V AC

Characteristics and ordering codes

I

R

Terminal cross section I

LK

Line side: Load side:

terminal

litz wires

blocks

mm

2

mm

2

mA

1.64

5.0

R

typ

Approx. weight Ordering code

Approvals

A

mΩ

40

10

5.2

2.4

1.8

1.2

1.0

0.7

0.4

kg

1.3

2.8

3.3

4.4

4.9

7.5

8.0

11.5

B84143G0008R110

B84143G0020R110

B84143G0025R110

B84143G0036R110

B84143G0050R110

B84143G0066R110

B84143G0090R110

B84143G0120R110

B84143G0150R110

B84143G0220R110

×

480 V

×

V

R

= 520/300 V AC

8

4

1.5

20

4

2.5

25

4

2.5

36

6

6.0

50 16

10

66 25

16

90 25

25

120 50

35

150 50

35

220 95

70

×

= Approval granted

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 4 of 14

3-line filters

for converters and power electronics

B84143G*R110

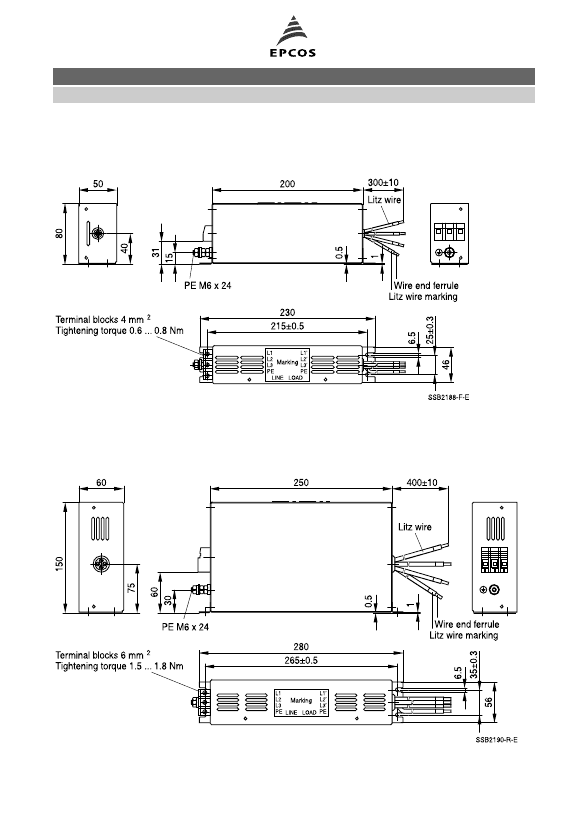

Dimensional drawings

B4143G0008R110, B4143G0020R110, B4143G0025R110 (8 A to 25 A)

General tolerances according to ISO 2768 cL

Dimensions in mm

B4143G0036R110 (36 A)

General tolerances according to ISO 2768 cL

Dimensions in mm

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 5 of 14
