DA1206C121R-00: DescriptionData Line Filter, 1 FUNCTIONS, 75 V, 0.3 A, FERRITE CHIP, SURFACE MOUNT; CategoryAnalog mixed-signal IC filter; File Size130KB，3 Pages; ManufacturerLaird

Download Datasheet Parametric View All

DA1206C121R-00 Overview

Data Line Filter, 1 FUNCTIONS, 75 V, 0.3 A, FERRITE CHIP, SURFACE MOUNT

DA1206C121R-00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Laird
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.2 Ω
filter type	FERRITE CHIP
high	1.1 mm
JESD-609 code	e0
length	3.2 mm
Manufacturer's serial number	DA
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	120 OHM Ω
physical size	L3.2XB1.6XH1.1 (mm)/L0.126XB0.063XH0.043 (inch)
Rated current	0.3 A
Rated voltage	75 V
Terminal surface	Tin/Lead (Sn/Pb)
width	1.6 mm

DA1206C121R-00 Preview

Part Curves

Page 1 of 3

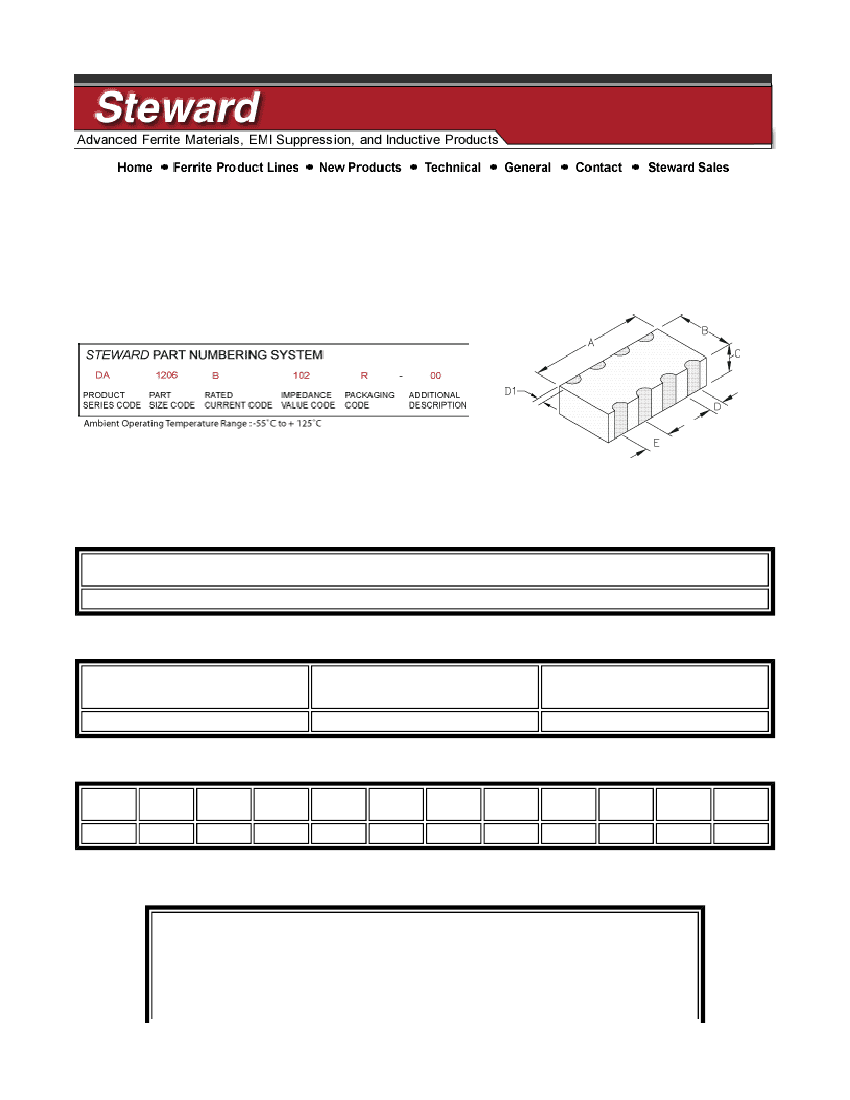

DA1206C121R-00

Drawing Figure #

Figure

Number

0

Electrical Characteristics

NET Z

@ 100 MHz

120

DCR

Max

0.20

Rated

Current

mA

300

Physical Dimensions

A

mm

3.20

B

mm

1.60

C

mm

0.80

D

mm

0.40

D1

mm

0.20

E

mm

0.80

A

in

0.126

B

in

0.063

C

in

0.031

D

in

0.016

D1

in

0.008

E

in

0.031

http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/25/2004

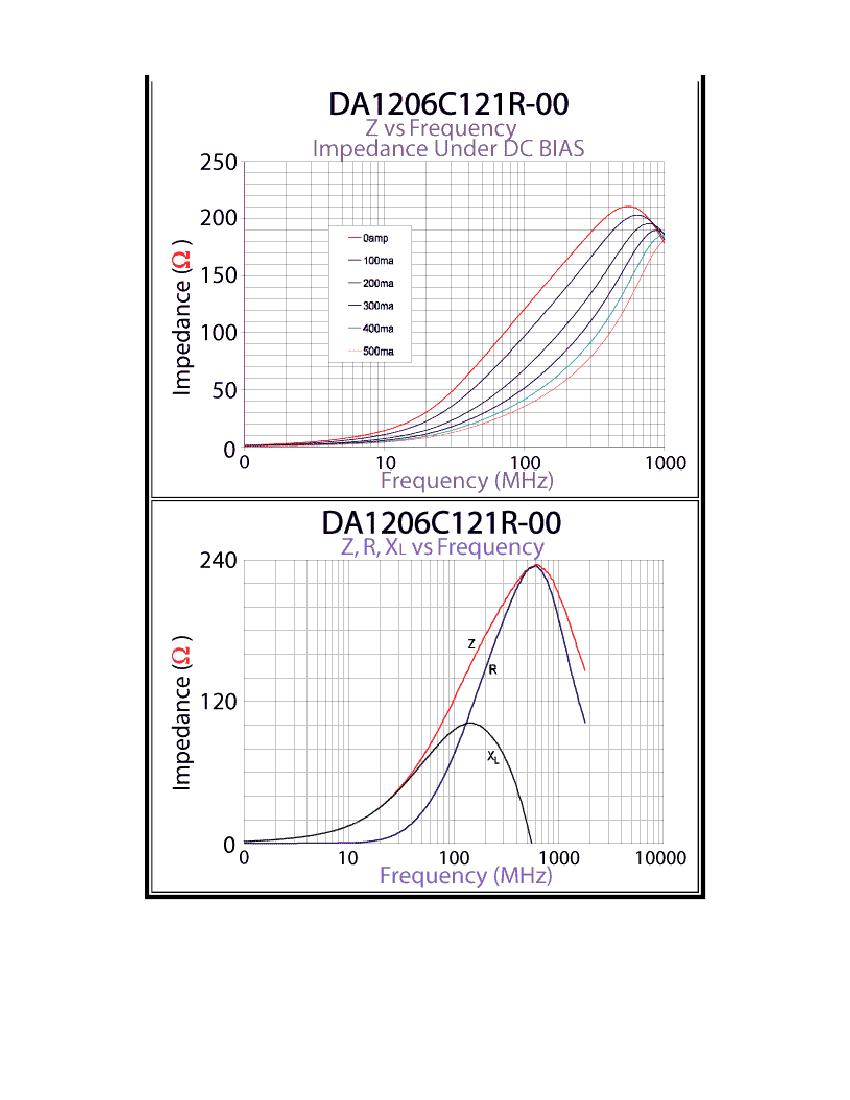

Part Curves

Page 2 of 3

http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/25/2004

Part Curves

Page 3 of 3

Specifications, which provide more details for the correct use of the described products, are available upon request. All

specifications are subject to change without notice. For more information on any of the products listed above, please contact

Steward customer service department at (800) 634-2673.

Last Updated:

2/25/2004

http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/25/2004
