DA1206D301R-00

Description
Data Line Filter, 1 FUNCTIONS, 75 V, 0.4 A, FERRITE CHIP, SURFACE MOUNT
CategoryAnalog mixed-signal IC    filter
File Size134KB，3 Pages
ManufacturerLaird
Download Datasheet Parametric View All

DA1206D301R-00 Overview

Data Line Filter, 1 FUNCTIONS, 75 V, 0.4 A, FERRITE CHIP, SURFACE MOUNT

DA1206D301R-00 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerLaird
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum DC resistance0.4 Ω
filter typeFERRITE CHIP
high1.1 mm
JESD-609 codee0
length3.2 mm
Manufacturer's serial numberDA
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output impedance300 OHM Ω
physical sizeL3.2XB1.6XH1.1 (mm)/L0.126XB0.063XH0.043 (inch)
Rated current0.4 A
Rated voltage75 V
Terminal surfaceTin/Lead (Sn/Pb)
width1.6 mm

DA1206D301R-00 Preview

Part Curves
Page 1 of 3

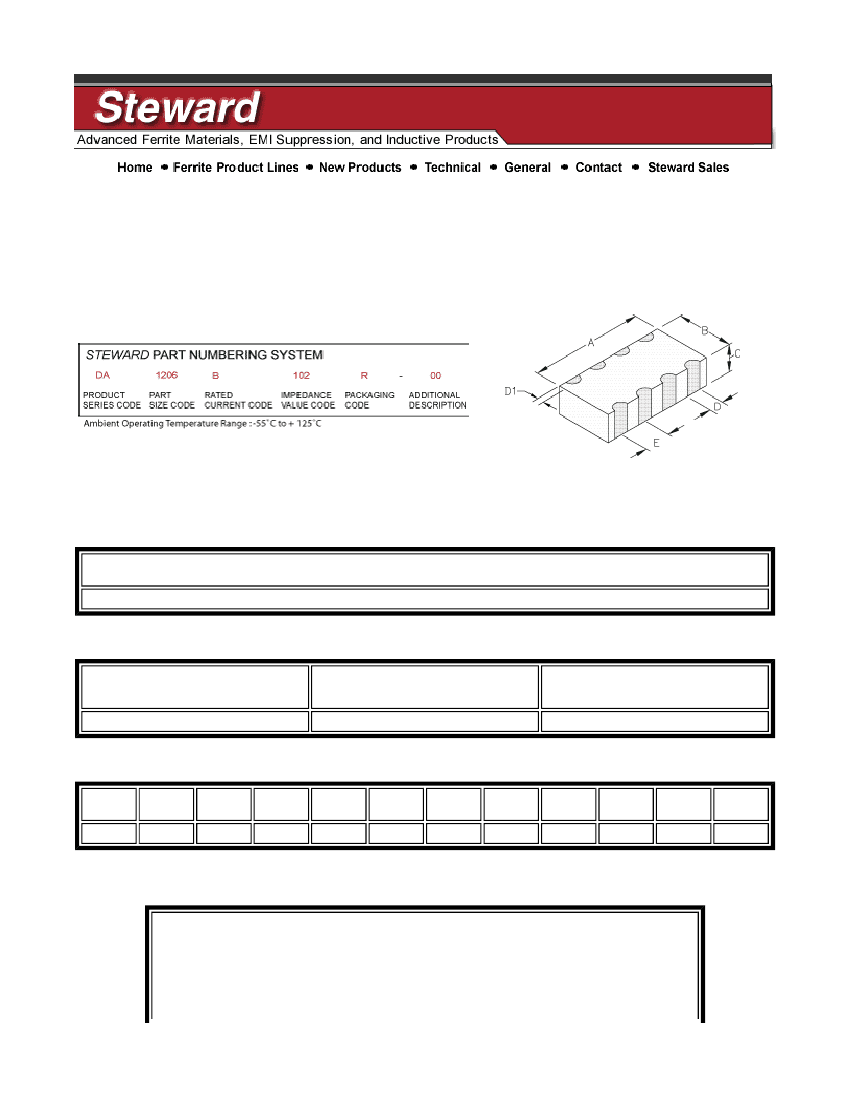

DA1206D301R-00
Drawing Figure #
Figure
Number
0
Electrical Characteristics
NET Z
@ 100 MHz
300
DCR
Max
0.40
Rated
Current
mA
400
Physical Dimensions
A
mm
3.20
B
mm
1.60
C
mm
0.80
D
mm
0.40
D1
mm
0.20
E
mm
0.80
A
in
0.126
B
in
0.063
C
in
0.031
D
in
0.016
D1
in
0.008
E
in
0.031
http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/25/2004

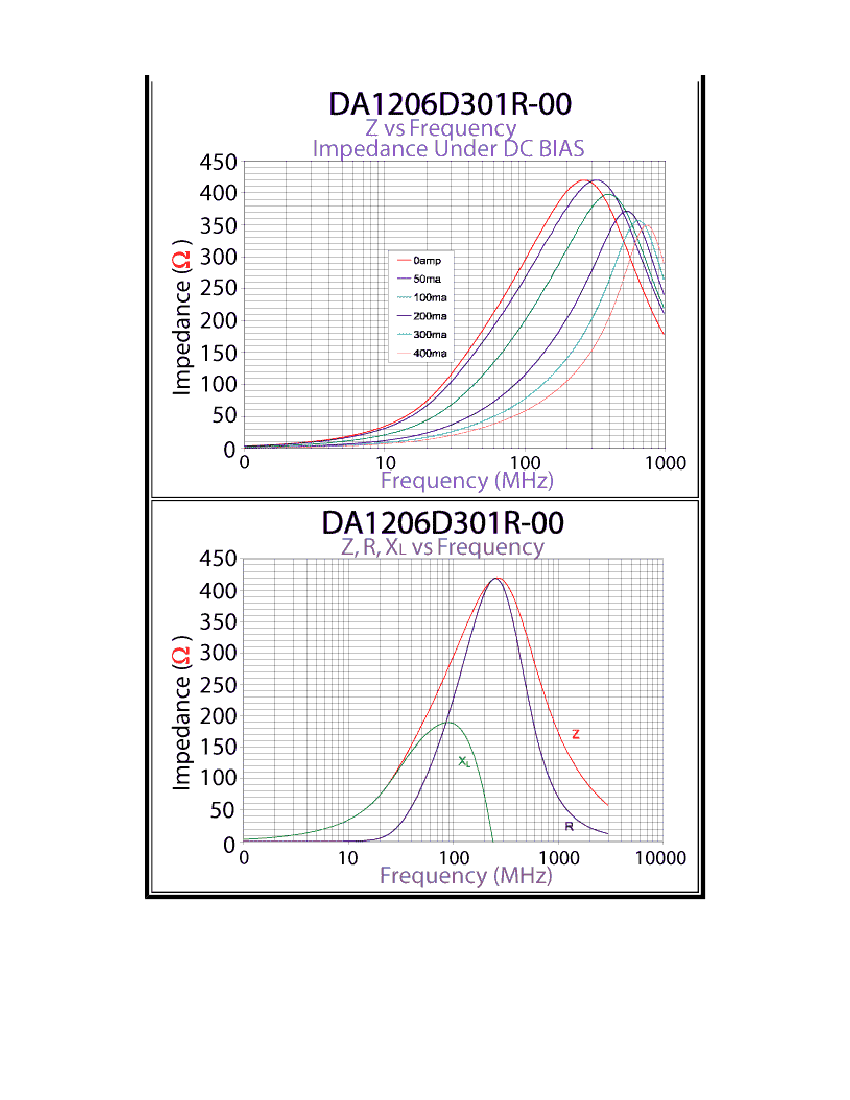

Part Curves
Page 2 of 3
http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/25/2004
Part Curves
Page 3 of 3
Specifications, which provide more details for the correct use of the described products, are available upon request. All
specifications are subject to change without notice. For more information on any of the products listed above, please contact
Steward customer service department at (800) 634-2673.
Copyright© 2004 Steward, Inc.
Last Updated:
2/25/2004
http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/25/2004
