DM1612X560R-00

Description
Data Line Filter, 1 FUNCTIONS, 75 V, 10 A, FERRITE CHIP, SURFACE MOUNT
CategoryAnalog mixed-signal IC    filter
File Size134KB,2 Pages
ManufacturerLaird
Download Datasheet Parametric View All

DM1612X560R-00 Overview

Data Line Filter, 1 FUNCTIONS, 75 V, 10 A, FERRITE CHIP, SURFACE MOUNT

DM1612X560R-00 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerLaird
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum DC resistance0.004 Ω
filter typeFERRITE CHIP
high2.28 mm
JESD-609 codee0
length4.06 mm
Manufacturer's serial numberDM
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output impedance56 OHM Ω
physical sizeL4.06XB3.05XH2.28 (mm)/L0.16XB0.12XH0.09 (inch)
Rated current10 A
Rated voltage75 V
Terminal surfaceTin/Lead (Sn/Pb)
width3.05 mm

DM1612X560R-00 Preview

Part Curves
Page 1 of 2

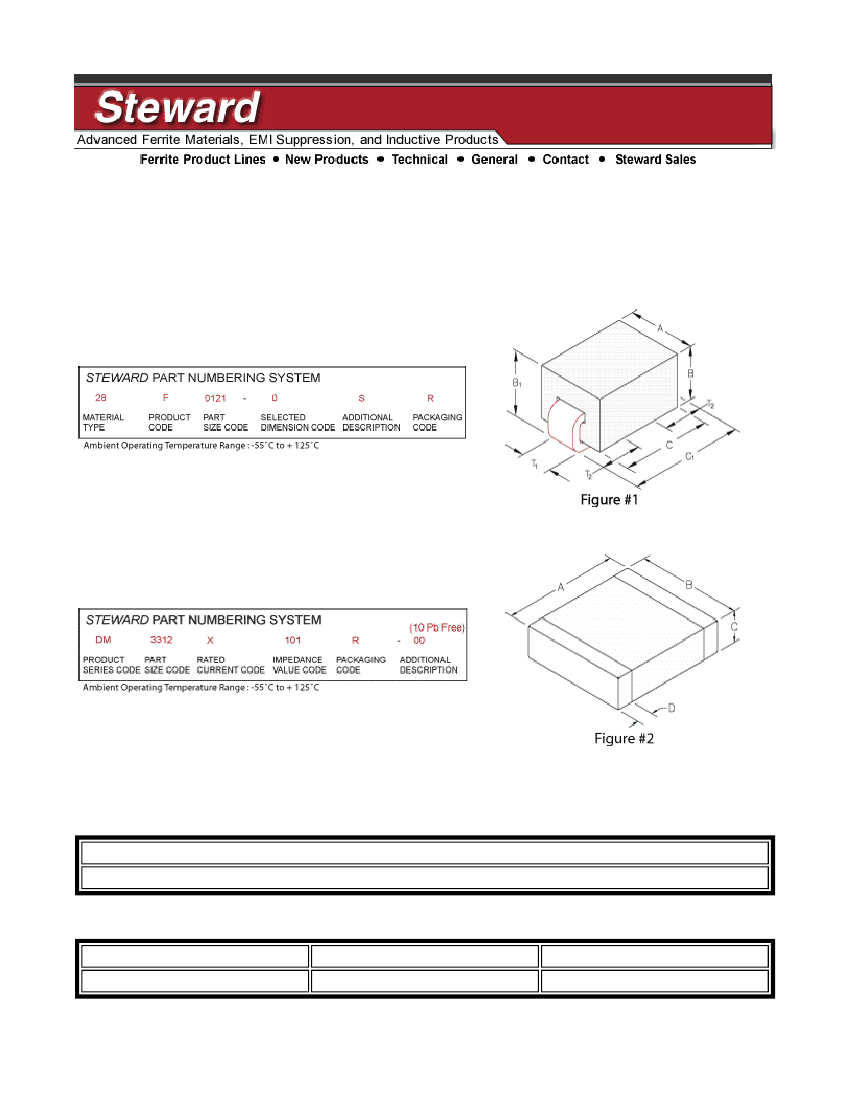

DM1612X560R-00
Drawing Figure #
Fig #
2
Electrical Characteristics
NET Z @ 100MHz
46
DCR Max
0.004
Rated Current mA
10000
http://www.steward.com/web_part_no.asp?line=EMC+%2F+EMI+&family=Board+Level... 5/15/2003

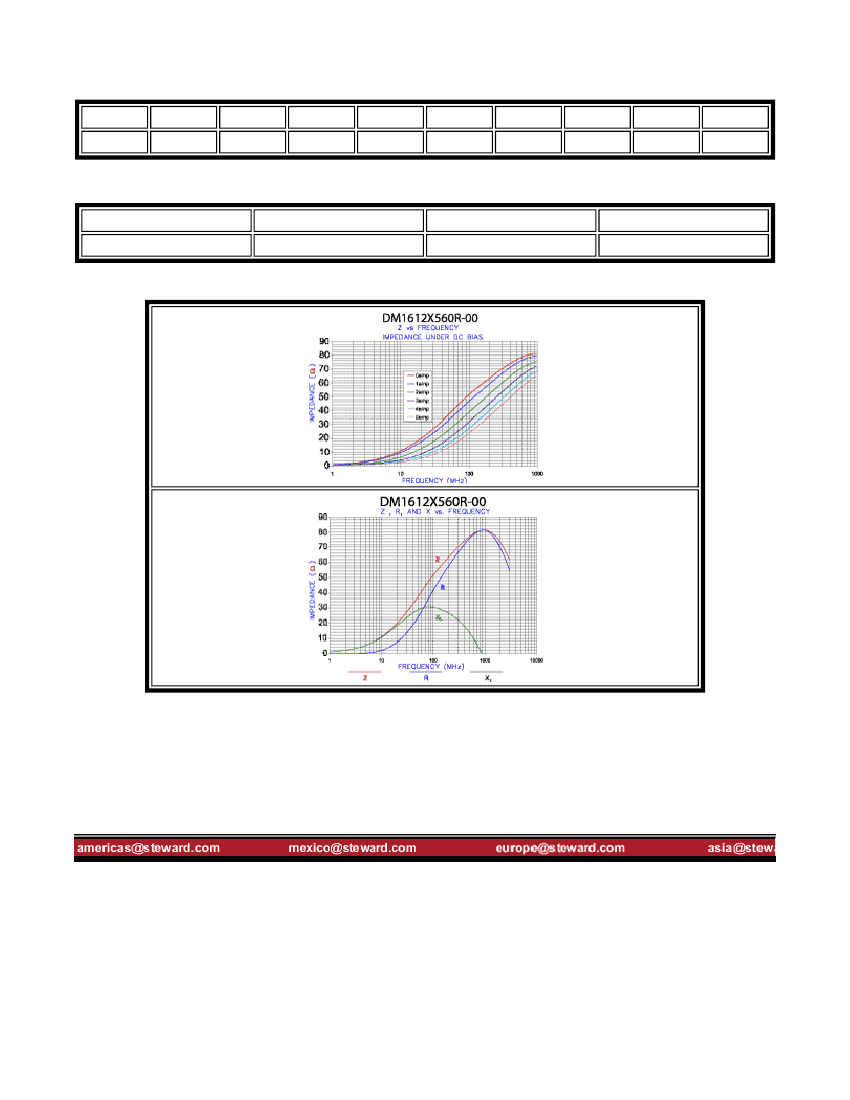

Part Curves
Page 2 of 2
Physical Dimensions
A mm
4.06
B mm
3.05
B1 mm
0
C mm
2.28
C1 mm
0
A in
0.160
B in
0.120
B1 in
0
C in
0.090
C1 in
0
Wire Dimensions
T1 mm
0
T2 mm
0
T1 in
0
T2 in
0
Copyright© 2003 Steward, Inc.
Last Updated: 5/15/2003
http://www.steward.com/web_part_no.asp?line=EMC+%2F+EMI+&family=Board+Level... 5/15/2003
