DTD143ECTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> DTD143ECTP

DTD143ECTP: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon,; CategoryDiscrete semiconductor The transistor; File Size67KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DTD143ECTP Overview

Small Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon,

DTD143ECTP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	IN-LINE, R-PSIP-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIGITAL, BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	47
JESD-30 code	R-PSIP-T3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN SILVER COPPER
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz

DTD143ECTP Preview

Transistors

Digital transistors (built-in resistors)

DTD143EK / DTD143ES / DTD143EC

FFeatures

1) Built-in bias resistors enable the

configuration of an inverter circuit

without connecting external input

resistors (see equivalent circuit).

2) The bias resistors consist of thin-

film resistors with complete isola-

tion to allow negative biasing of the

input. They also have the advan-

tage of almost completely eliminat-

ing parasitic effects.

3) Only the on / off conditions need to

be set for operation, making device

design easy.

FStructure

NPN digital transistor

(Built-in resistor type)

FExternal

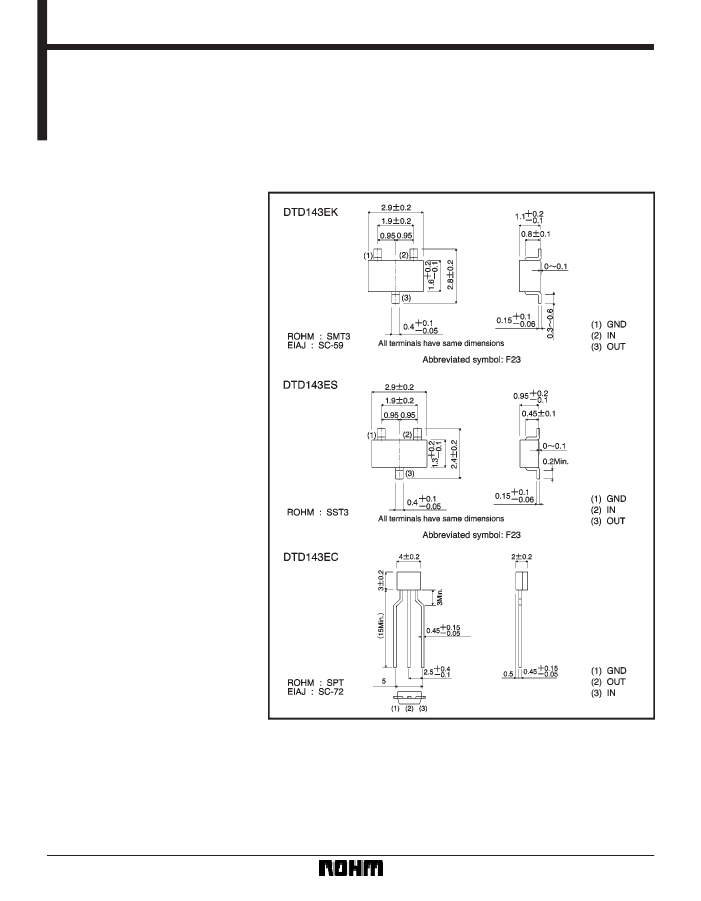

dimensions (Units: mm)

(96-372-D143E)

460

Transistors

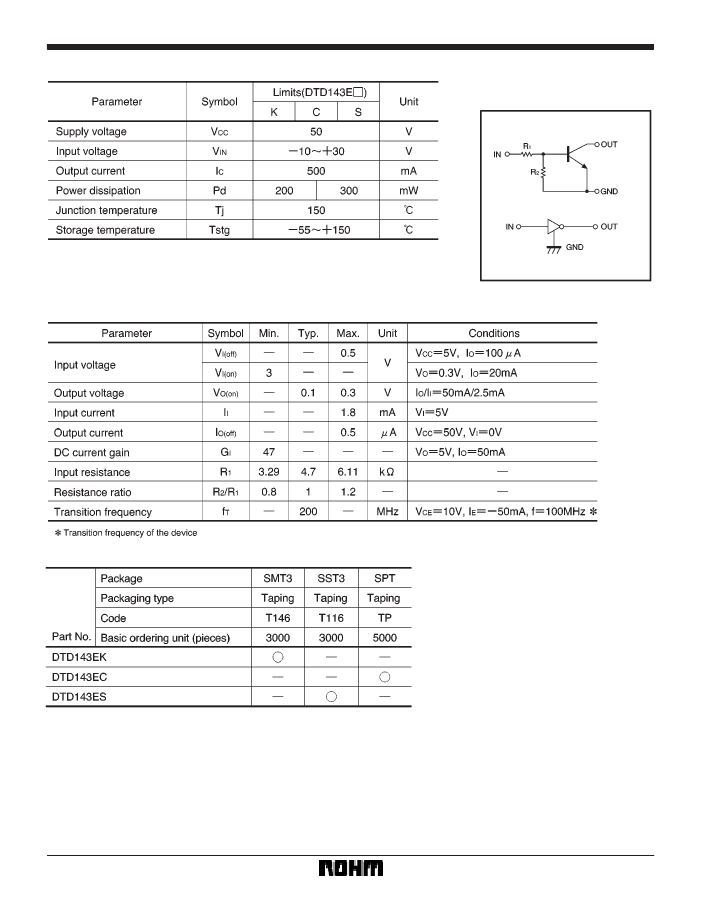

FAbsolute

maximum ratings (Ta = 25_C)

DTD143EK / DTD143ES / DTD143EC

FEquivalent

circuit

FElectrical

characteristics (Ta = 25_C)

FPackaging

specifications

461

Transistors

FElectrical

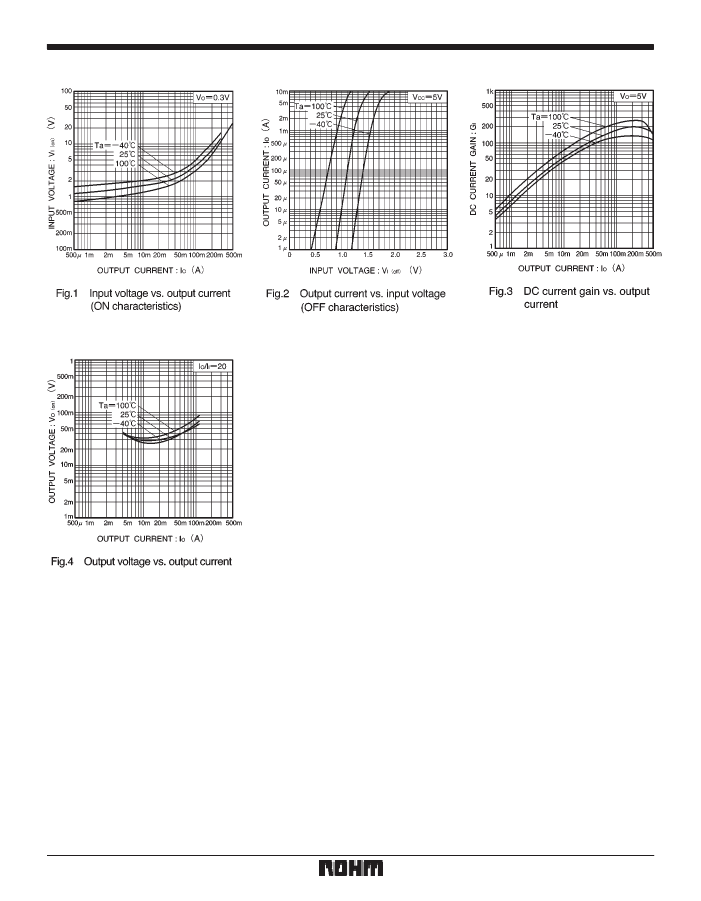

characteristic curves

DTD143EK / DTD143ES / DTD143EC

462

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
