TC74HC4060AF(TP1) datasheet, PDF

Datasheet> All Categories > logic> logic> TC74HC4060AF(TP1)

TC74HC4060AF(TP1): DescriptionIC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 14-BIT UP BINARY COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter; Categorylogic logic; File Size142KB，5 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC4060AF(TP1) Overview

IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 14-BIT UP BINARY COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter

TC74HC4060AF(TP1) Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Other features	OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR; OSCILLATOR DISABLED BY CLEAR INPUT
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	ASYNCHRONOUS
Number of digits	14
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
propagation delay (tpd)	75 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	NEGATIVE EDGE
width	5.3 mm
minfmax	24 MHz

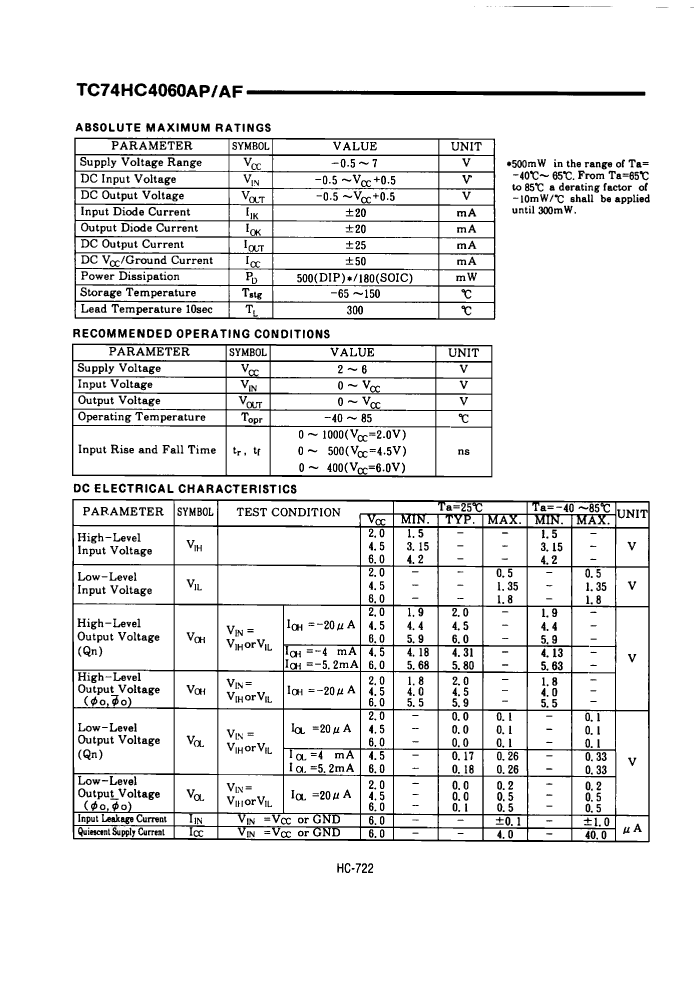

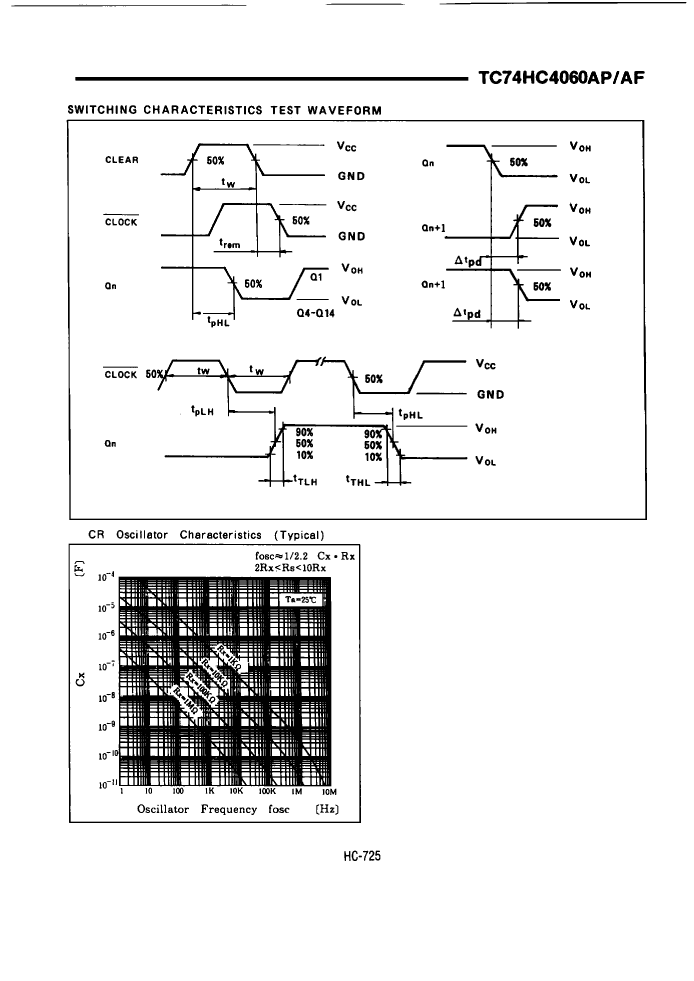

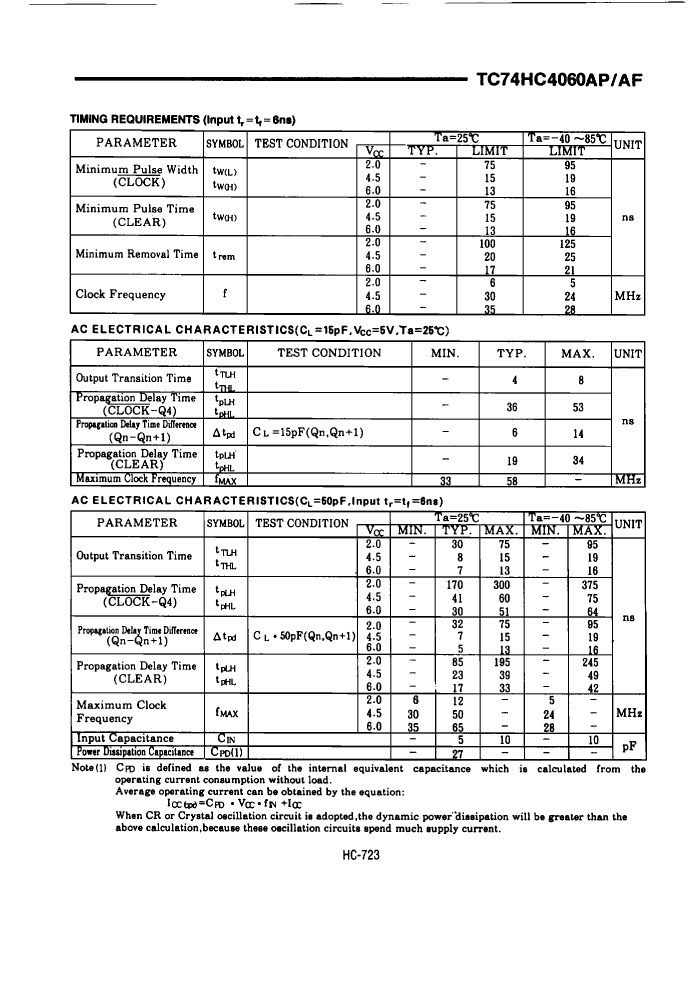

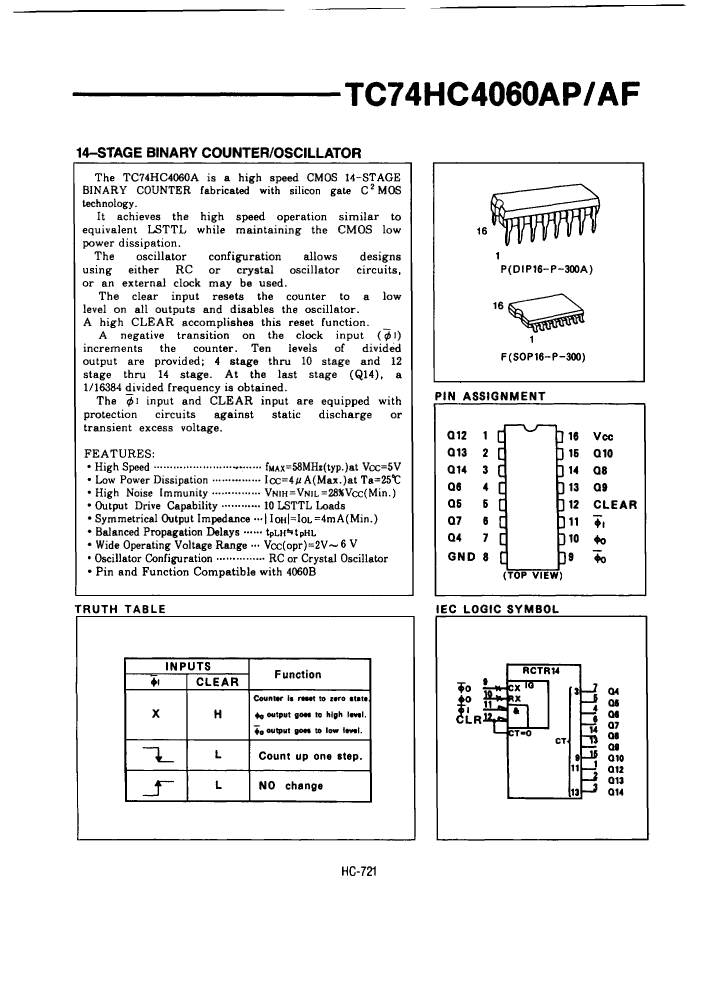

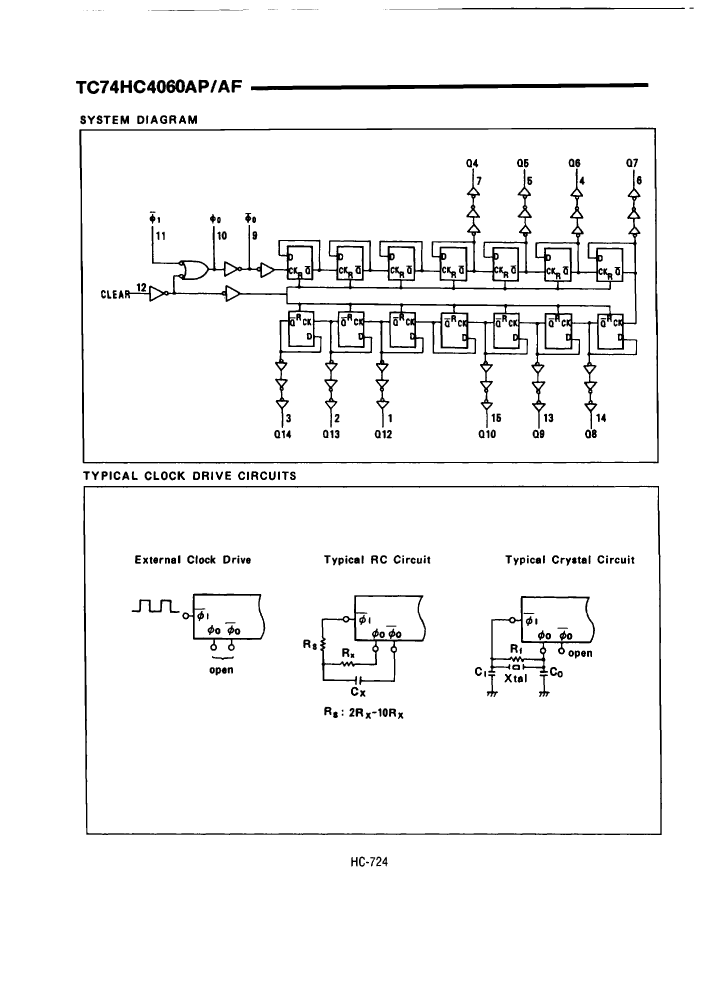

Preview

Download Datasheet

View All

TC74HC4060AF(TP1) Related Products

	TC74HC4060AF(TP1)	TC74HC4060AF(TP2)	TC74HC4060AF(EL)
Description	IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 14-BIT UP BINARY COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter	IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 14-BIT UP BINARY COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter	IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 14-BIT UP BINARY COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC	SOIC
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
Other features	OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR; OSCILLATOR DISABLED BY CLEAR INPUT	OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR; OSCILLATOR DISABLED BY CLEAR INPUT	OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR; OSCILLATOR DISABLED BY CLEAR INPUT
Counting direction	UP	UP	UP
series	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0
length	10.3 mm	10.3 mm	10.3 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	14	14	14
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240
propagation delay (tpd)	75 ns	75 ns	75 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	5.3 mm	5.3 mm	5.3 mm
minfmax	24 MHz	24 MHz	24 MHz
Is it lead-free?	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	-
package instruction	SOP,	SOP,	-
