DTA143XEB HZG
PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor)
Datasheet
AEC-Q101 Qualified
l
Outline
Parameter
V
CC
I
C(MAX.)
R
1
R
2
l
Features
Value
-50V
-100mA
4.7kΩ
10kΩ
SOT-416FL
SC-89
(EMT3F)
l
Inner circuit
1) Built-In Biasing Resistors, R
1
= 4.7kΩ, R
2
= 10kΩ
2) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see inner circuit) .
3) Only the on/off conditions need to be set
for operation, making the circuit design easy.
4) Complementary NPN Types: DTC143XEB HZG
l
Application
INVERTER, INTERFACE, DRIVER
l
Packaging specifications
Part No.
Package
SOT-416FL
(EMT3F)
Package
size
1616
Taping
code
TL
Basic
Reel size Tape width ordering
(mm)
(mm)
unit.(pcs)
180
8
3000
Marking
DTA143XEB HZG
33
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
1/5
20160725 - Rev.001
DTA143XEB HZG
Datasheet
l
Absolute maximum ratings
(T
a
= 25°C)
Parameter
Supply voltage
Input voltage
Output current
Collector current
Power dissipation
Junction temperature
Range of storage temperature
Symbol
V
CC
V
IN
I
O
I
C(MAX)*1
P
D*2
T
j
T
stg
Values
-50
-20 to 7
-100
-100
150
150
-55 to +150
Unit
V
V
mA
mA
mW
℃
℃
l
Electrical characteristics
(T
a
= 25°C)
Values
Parameter
Symbol
V
I(off)
Input voltage
V
I(on)
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T*1
Conditions
Min.
V
CC
= -5V, I
O
= -100μA
V
O
= -0.3V, I
O
= -20mA
I
O
= -10mA, I
I
= -0.5mA
V
I
= -5V
V
CC
= -50V, V
I
= 0V
V
O
= -5V, I
O
= -10mA
-
-
V
CE
= -10V, I
E
= 5mA,
f = 100MHz
-
-2.5
-
-
-
30
3.29
1.7
-
Typ.
-
-
-100
-
-
-
4.7
2.1
250
Max.
-0.3
V
-
-300
-1.8
-500
-
6.11
2.6
-
mV
mA
nA
-
kΩ
-
MHz
Unit
*1 Characteristics of built-in transistor
*2 Each terminal mounted on a reference land.
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
2/5
20160725 - Rev.001
DTA143XEB HZG
Datasheet
l

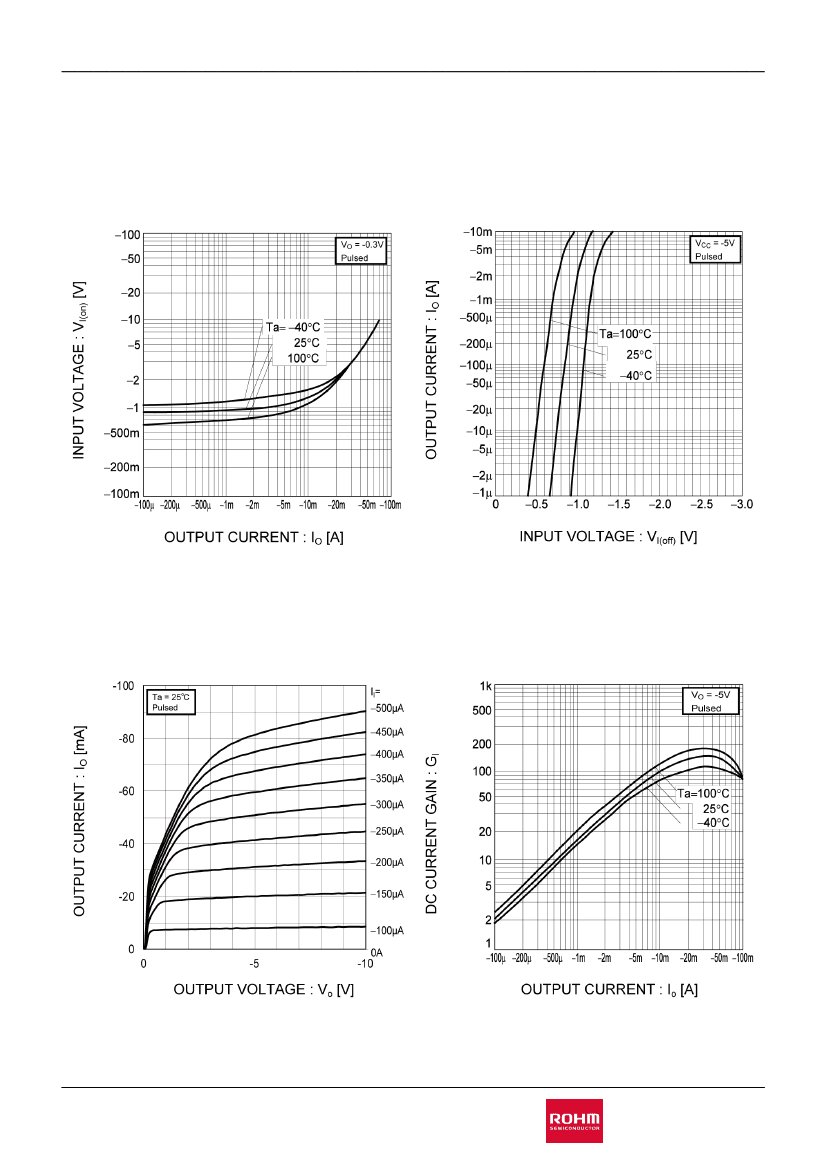

Electrical characteristic curves
(T
a
=25°C)
Fig.1 Input voltage vs. output current (ON
characteristics)
Fig.2 Output current vs. input voltage (OFF
characteristics)
Fig.3 Output current vs. output voltage
Fig.4 DC current gain vs. output current
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
3/5
20160725 - Rev.001
DTA143XEB HZG
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)
Fig.5 Output voltage vs. output current
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
4/5
20160725 - Rev.001
DTA143XEB HZG
l

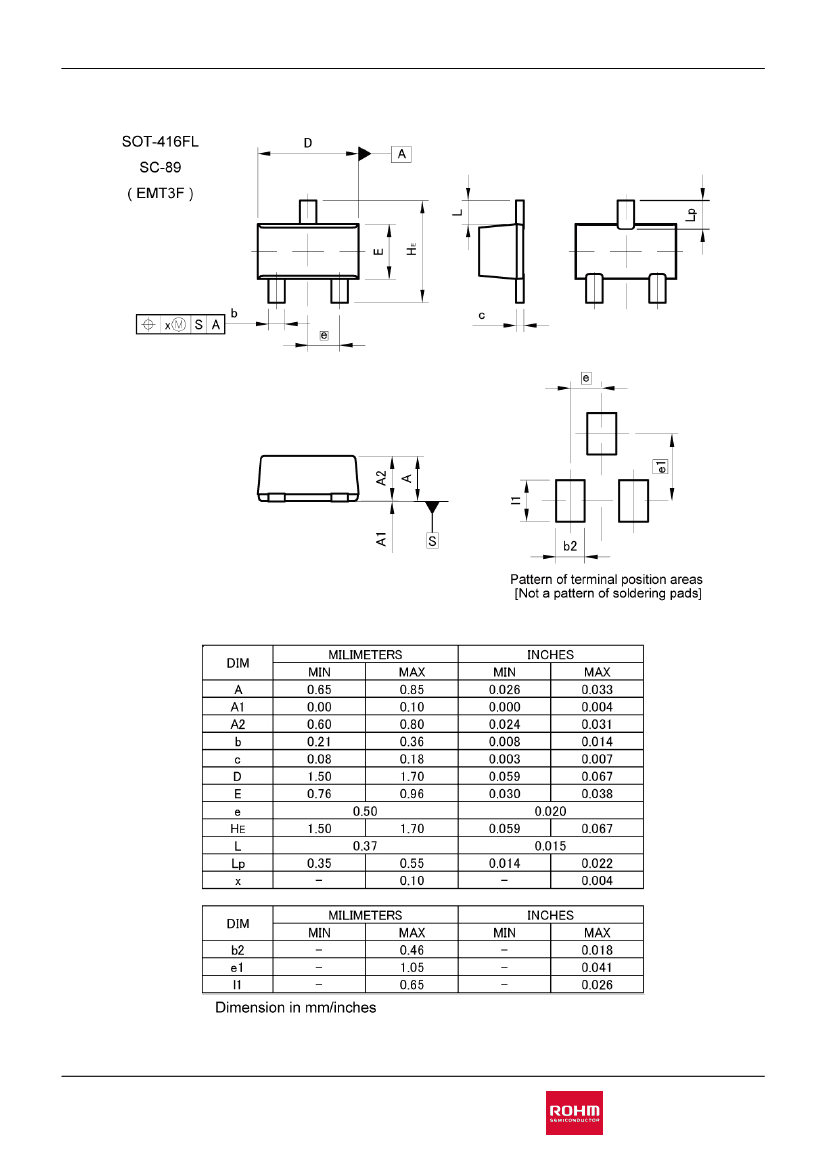

Dimensions
Datasheet
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
5/5
20160725 - Rev.001
