RD1HF16STRB: Description10 x 10 mm Rotary DIP Switches with 3:3 Pinout; File Size309KB，2 Pages; ManufacturerGREATECS; Websitehttp://www.greatecs.com/

Download Datasheet View All

RD1HF16STRB Overview

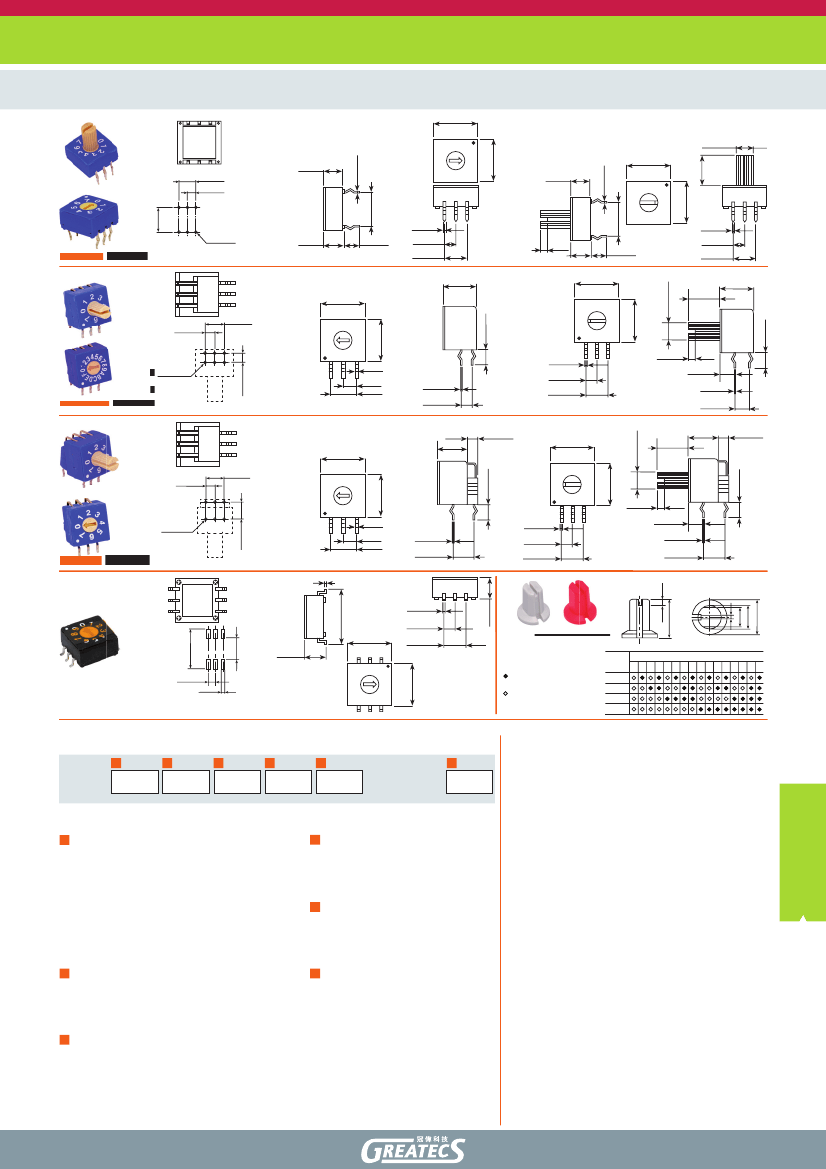

10 x 10 mm Rotary DIP Switches with 3:3 Pinout

Preview

Download Datasheet

View All

Rotary Switches

10 x 10 mm Rotary DIP Switches with 3:3 Pinout

1 C 4

8 C 2

5.0±0.3

5.08±0.1

2.54±0.1

7.62±0.1

4 C 1

P.C.B. LAYOUT

2 C 8

Ø0.80 HOLE

5.4±0.3

RD1HF16

Flat Rotor, 16 Positions

0.25±0.1

10±0.3

RD1 Series

Ø3.75±0.2

0.25±0.1

7.0±0.3

10 ± 0.3

0.6±0.1

2.54±0.2

5.08±0.3

Ø3.75±0.2

7.55±0.3

7.0±0.3

3.5±0.3

4.0±0.2

RD1R1S16

Shaft Rotor,

16 Positions

Ø3.75±0.2

0.25±0.1

2.54±0.4

7.55±0.3

7.0±0.3

3.5±0.3

1.5±0.2

4.0±0.2

RD1R2S16

Shaft Rotor,

16 Positions

0.25±0.1

5.08±0.4

1.35

Position

0 12 3 45 67 8 9ABC DE F

5.0

Ø6.0

Ø9.0

9.7

0.8

2.34±0.3

10±0.3

RD1HS16

Shaft Rotor, 16 Positions

10 ± 0.3

7.62±0.4

0.6±0.1

2.54±0.2

5.08±0.3

RD1R1F16

Flat Rotor,

16 Positions

7.55±0.3

1.5±0.2

3.5±0.3

RD1H

THT Top Adjust Type Terminals

4 C 1

2 C 8

10±0.3

5.08±0.1

5.4±0.3

3.5±0.3

10±0.3

3.5±0.3

10±0.3

8 C 2

Ø0.8 HOLE

1 C 4

2.54±0.1

0.6±0.1

2.54±0.2

5.08±0.3

0.25±0.1

2.54±0.4

0.6±0.1

2.54±0.2

5.08±0.3

P.C.B. LAYOUT

RD1R1

THT Right Angle Rows Spacing 2.54 mm

4 C 1

2 C 8

RD1R2F16

Flat Rotor,

16 Positions

2.34±0.3

7.55±0.3

3.5±0.3

10±0.3

5.08±0.1

10±0.3

2.54±0.1

Ø0.8 HOLE

1 C 4

5.08±0.1

P.C.B. LAYOUT

RD1R2

THT Right Angle Rows Spacing 5.08 mm

1 C 4

8 C 2

0.25±0.1

12.85±0.4

2.54±0.2

10±0.3

5.4±0.2

14.2±0.2

7.7±0.1

5.7±0.3

10±0.3

RD1SF16

Flat Rotor,

16 Positions

RD1S

SMT with Top Tape Sealed

How to order:

RD1

FEATURES

TYPE OF TERMINALS:

THT Top Adjust Type

THT Right Angle Side Adjust Type

with Rows Spacing 2.54 mm

THT Right Angle Side Adjust Type

with Rows Spacing 5.08 mm

SMT with Top Tape Sealed

ROTOR TYPE:

Flat Rotor

Shaft Rotor (RD1H & RD1R Only)

NO. OF POSITIONS:

8 Positions

10 Positions

16 Positions

CODE:

Real Code

Complementary Code

PACKAGING TYPE:

Tube

Tape & Reel (RD1S Only)

(OPTIONAL:)

SHAFT COVER COLOR:

White

Red

» Molded-in terminals and fully sealed construction

» Gold plated contact to ensure low contact resistance

MECHANICAL

» Mechanical Life: 2.000 steps per position

» Operating Force: 500 gf max.

» Operation Temperature: -20°C to +70°C

» Storage Temperature: -40°C to +85°C

ELECTRICAL

» Contact Rating: 25mA, 24VDC

SOLDERING PROCESSES

» Solderability for T.H.T.: After flux 230±5°C for 5±0.5

seconds, 95% coverage

» Resistance to soldering heat for T.H.T.: 260±5°C for 5±1

seconds

» Reflow soldering heat for S.M.T. (reference only): 210°C

for 20 seconds or less, peak temperature 230°C or less

sales@greatecs.com

www.greatecs.com

N01

Rotary Switches

2.54±0.1 PITCH

1.2±0.1

P.C.B. LAYOUT

0.6±0.1

2.54±0.2

5.08±0.3

0.25±0.1

5.08±0.4

0.6±0.1

2.54±0.2

5.08±0.3

0.6±0.1

5.08±0.3

KRD

Shaft Cover

Code

Pin No.

Real Code

(Rotor Color: White)

Complementary Code

(Rotor Color: Red)

General Specifications:

+ KRD

Optional: Shaft Cover

8 C 2

10±0.3

2.54±0.1

10±0.3

5.0±0.3

1.5±0.2
