TC74HCT7007AF-TP2EL datasheet, PDF

Datasheet> All Categories > logic> logic> TC74HCT7007AF-TP2EL

TC74HCT7007AF-TP2EL: DescriptionIC HCT SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate; Categorylogic logic; File Size71KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HCT7007AF-TP2EL Overview

IC HCT SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate

TC74HCT7007AF-TP2EL Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-PDSO-G14
length	10.3 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUFFER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	28 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm

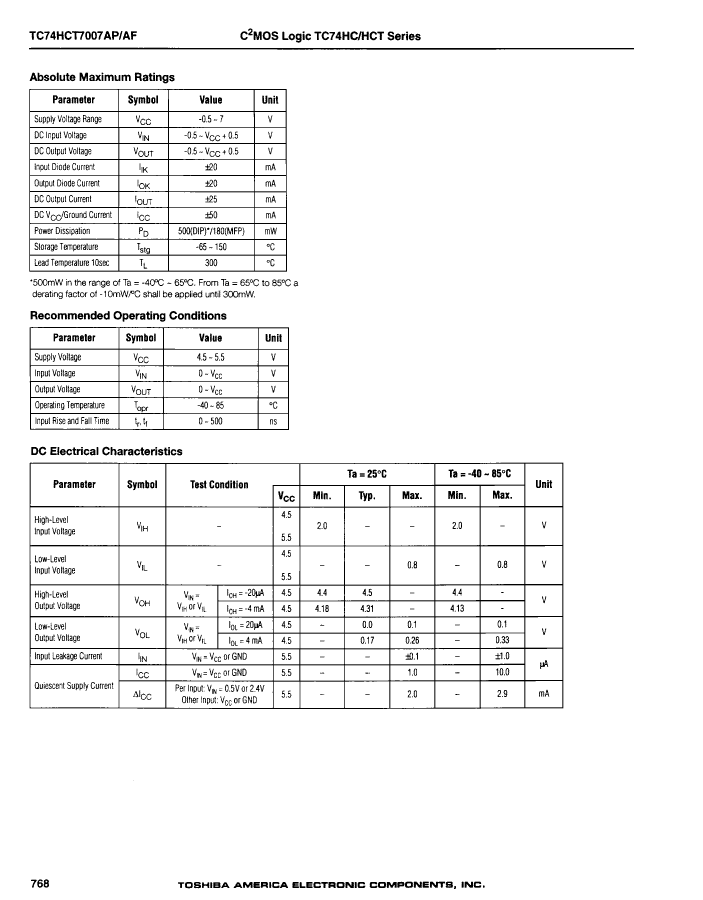

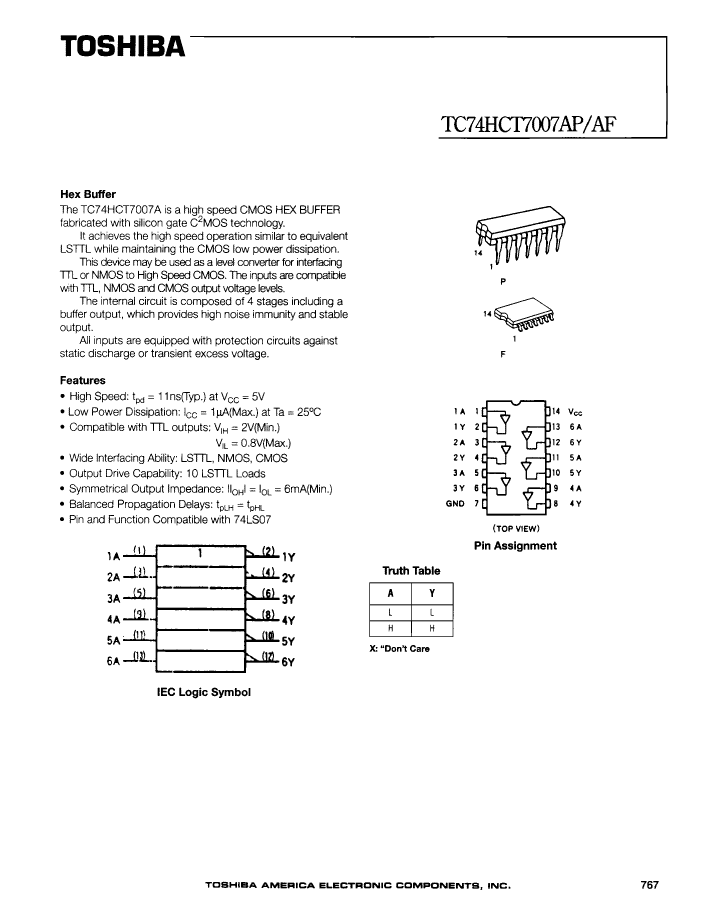

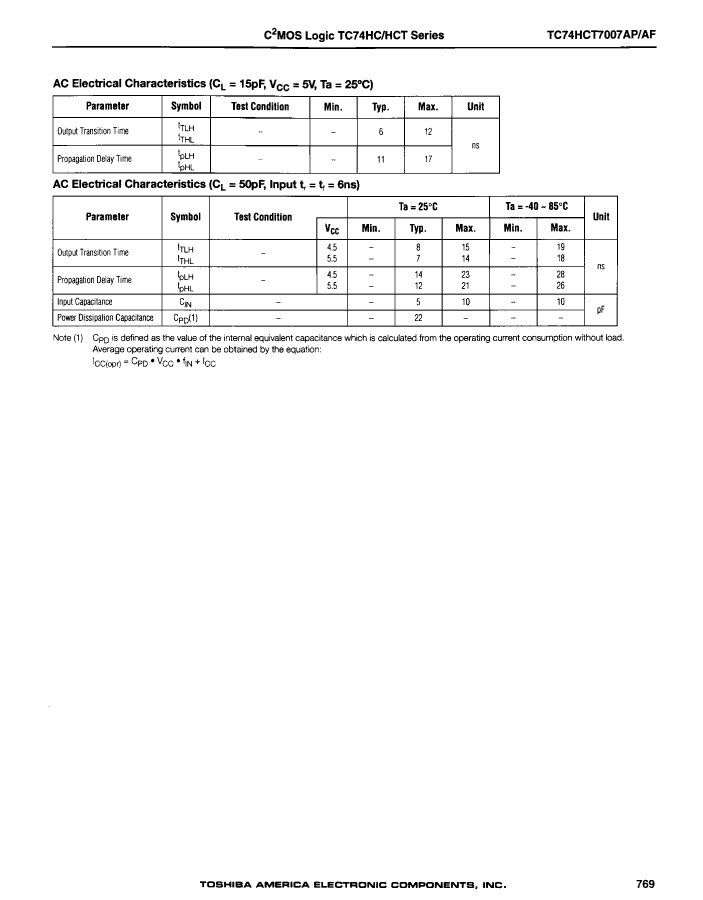

Preview

Download Datasheet

View All

TC74HCT7007AF-TP2EL Related Products

	TC74HCT7007AF-TP2EL	TC74HCT7007AF-TP1	TC74HCT7007AF-TP1EL	TC74HCT7007AF-TP2	TC74HCT7007AF-EL
Description	IC HCT SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate	IC HCT SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate	IC HCT SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate	IC HCT SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate	IC HCT SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,	SOP,
Contacts	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	HCT	HCT	HCT	HCT	HCT
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
length	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUFFER	BUFFER	BUFFER	BUFFER	BUFFER
Number of functions	6	6	6	6	6
Number of entries	1	1	1	1	1
Number of terminals	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	28 ns	28 ns	28 ns	28 ns	28 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm
Maker	Toshiba Semiconductor	-	-	Toshiba Semiconductor	Toshiba Semiconductor
Is it lead-free?	-	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	-	incompatible	incompatible
JESD-609 code	-	e0	-	e0	e0
Peak Reflow Temperature (Celsius)	-	240	-	240	240
Terminal surface	-	TIN LEAD	-	TIN LEAD	TIN LEAD
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
