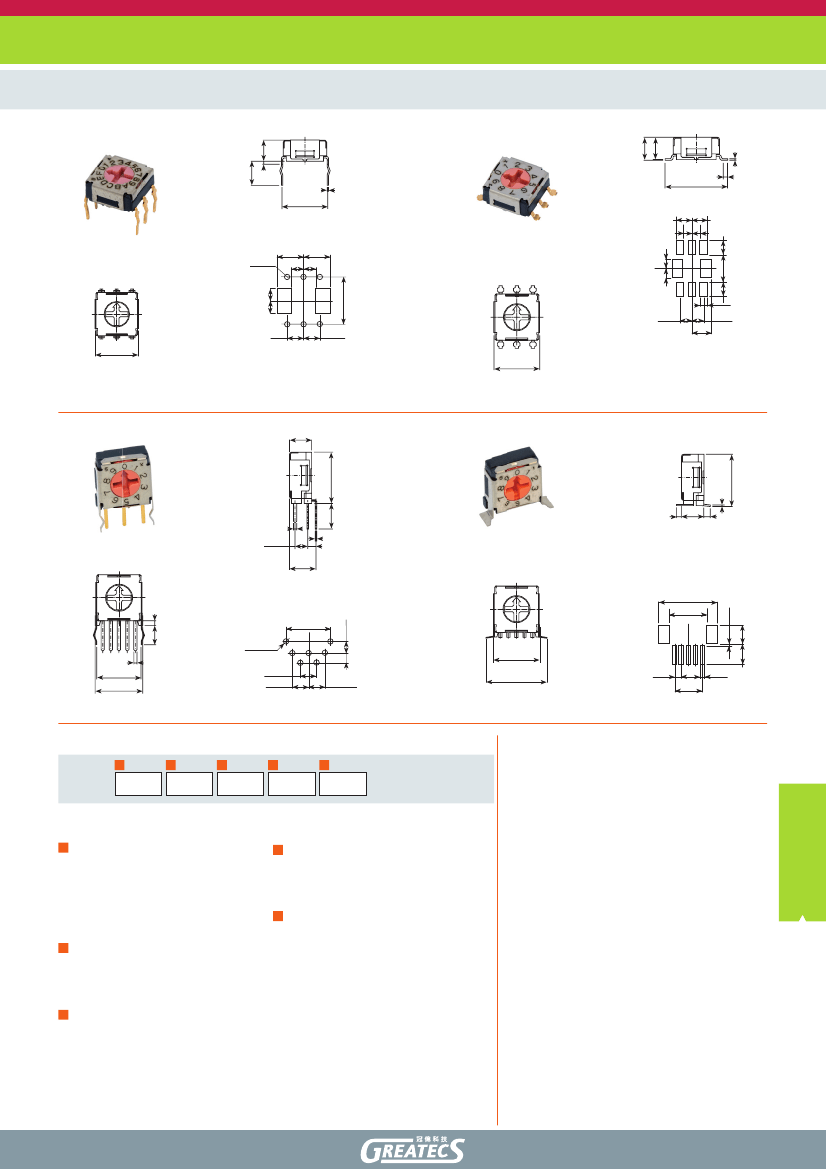

RD3S110GSTR: Description7.2 x 7.2 mm Rotary DIP Switches; File Size254KB，2 Pages; ManufacturerGREATECS; Websitehttp://www.greatecs.com/

Download Datasheet View All

RD3S110GSTR Overview

7.2 x 7.2 mm Rotary DIP Switches

Preview

Download Datasheet

View All

Rotary Switches

7.2 x 7.2 mm Rotary DIP Switches

3.5

0.5

0.25t

7.62±0.3

4.2 4.2

1.9

Ø0.8±0.06

RD3 Series

3.6

3.5

0.25t

0.7MIN.

9.8±0.3

1.9

3±0.1

2 2

4.2

1.9 1.9

7.62±0.1

6±0.1

3±0.1

2 2

2.54±0.1

4±0.1

1.6±0.1

2.54±0.1

4 8 C

7.2±0.3

2.54±0.1

P.C.B. LAYOUT

The hatched portion

should not receive

conductive pattern

4 8 C

7.2±0.3

RD3T1

THT Top Adjust Type

RD3S1

SMT Top Type

3.5

0.5

2±0.2

4.15

0.25t

1.27±0.2

0.75

2±0.1

1.27±0.1

Ø0.8±0.1

4 21 8C

0.5

7.05±0.2

7.5

2.54±0.1

7.5

9.6

1.27±0.1

5.08±0.1

P.C.B. LAYOUT

0.7±0.1

2.54±0.1

P.C.B. LAYOUT

RD3T2

THT Right Angle

RD3S2

SMT Right Angle Type

How to order:

General Specifications:

FEATURES

» Flat type with outer dimensions 7.2mm square

» Gold plated contact area ensures reliable electric

RD3

3.4±0.1

TYPE OF TERMINALS:

THT Top Adjust Type

THT Right Angle Type

SMT Top Type

SMT Right Angle Type

CODE:

Real Code

Complementary Code

continuity for micro current

MECHANICAL

» Operating Force: 510 gf max. (rotational torque

» Operation Temperature: -20°C to +70°C

» Storage Temperature: -25°C to +85°C

ELECTRICAL

» Contact Rating: 100mA, 5VDC

SOLDERING PROCESSES

NO. OF POSITIONS:

10 Positions

16 Positions

PACKAGING TYPE:

Tube

Tape & Reel (Only for RD3S)

GROUND TERMINAL:

Without Ground Terminal

With Ground Terminal

» Solderability for THT: After flux 230±5°C for 5±0.5

seconds, 95% coverage

» Resistance to soldering heat for THT: 260±5°C for 5±1

seconds

» Reflow soldering heat for SMT (reference only): 210°C

for 20 seconds or less, peak temperature 230°C or less

sales@greatecs.com

www.greatecs.com

N03

Rotary Switches

7.05±0.1

0.2±0.1

3.6±0.1
